TL084 Op-Amp: Applications, Features, and Specifications

An op-amp such as the TL084 includes four independent operational amplifiers. Because it comes in a Quad Package, it is available. In terms of similarity, the LM324 is the closest amplifier to the TL084, since it offers four operational amplifiers in the same package.



Operational amplifiers TL084 and LM324 work very similarly, but the voltage requirements are different. TL084 operates at 7V while LM324 operates at 5V. TL084 op-amps are discussed in this article in relation to their application using an overview of their workings.





What is a TL084 Op-Amp?

There are a number of analog electronic circuits that use the TL084 quad operational amplifier integrated circuit (IC). A single package is capable of housing four independent op-amps, making it perfect for applications that require multiple amplifiers. Its wide bandwidth and low bias current make it suitable for a variety of signal processing tasks thanks to its high input impedance, low bias, and offset currents. The versatile design of this component makes it suitable for applications such as audio amplifiers, active filters, instrumentation amplifiers, and analog signal processing.



In applications where precision and stability are paramount, the TL084 op-amp is preferred because of its low noise characteristics and high gain-bandwidth. Its versatility is further enhanced by the fact that it is compatible with a multitude of supply voltages and can operate in either a single or dual supply configuration. Its reliable performance and ease of integration into electronic circuits make the TL084 popular among engineers and hobbyists.

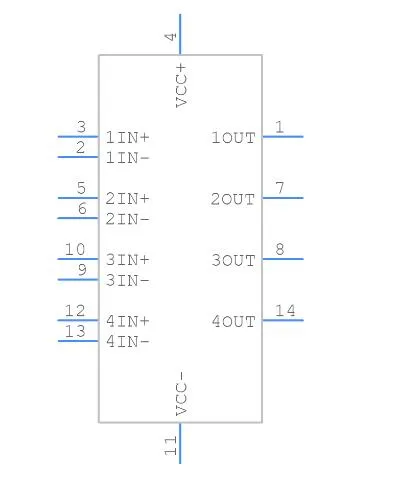

TL084CN Pinout









TL084 Op-Amp Specification

Number of Channels: The TL084 consists of four independent op-amps within a single package, offering space-efficient and cost-effective solutions for applications requiring multiple amplifiers.



Supply Voltage Range: A single supply configuration of the TL084 is capable of operating from 10 to 36 volts, while a dual supply configuration is capable of operating from 5 to 18 volts. Due to its flexibility, the power supply can be configured in a variety of ways to accommodate diverse circuit designs.



Input Offset Voltage: When two input terminals of the TL084 are offset by two millivolts or more, the output voltage will be nullified. Signal amplification is more accurate when the offset voltage is lower.



Input Bias Current: Input bias currents of the TL084 typically range from 40 nanoamps to 200 nanoamps. As a result, the input impedance and offset voltage of the op-amp are affected by these currents. Input signal distortion is minimized by lowering bias currents.



Input Offset Current: An offset current between 2 nanoamps and 10 nanoamps is typical for the TL084. The offset voltage and operational stability of an op-amp are impacted by the bias currents flowing into the input terminals.



Gain Bandwidth Product: There is a wide range of gain bandwidth products (GBPs) offered with the TL084. When the open-loop gain of an oscillator declines to unity, its frequency response changes.



Slew Rate: There is typically a range of 4-20 volts per microsecond in the specifications for the TL084's slew rate. Applied to transients and signal fidelity, this parameter measures how fast the output voltage changes in response to a step input.



Input Common-Mode Voltage Range: From a negative supply voltage up to a positive supply voltage, the TL084 accepts common-mode voltages as inputs. There is no distortion or damage caused by this wide range of input signal levels.



Output Voltage Swing: Voltage swings in the output tend to be symmetrical around the supply voltage, usually ranging between negative and positive. As a result of this specification, the maximum voltage swing amplitude is defined, which has an impact on the output capability and dynamic range.



Operating Temperature Range: Temperatures between -40°C and 105°C are no problem for the TL084. Different environmental conditions are taken into account in this wide operating temperature range.

TL084 Op-Amp Features

This operational amplifier (opamp) is ideal for analog signal processing applications thanks to its wide range of features. The following are some of its key features:



Quad Op-Amp Configuration: With four independent op-amps housed in one package, the TL084 is a quad op-amp. By utilizing multiple amplifiers within one IC, space can be saved and convenience can be gained.



High Input Impedance: There is no significant degradation of signal quality in the TL084 due to the high input impedance of each op-amp, which minimizes loading effects on input signals.



Low Input Bias and Offset Currents: With TL084, input bias and offset currents are low, meaning input signal distortion is minimal and small signals are amplified correctly. Applications that require signal fidelity are critical to this feature.



Wide Bandwidth: A wide range of frequency bands can be amplified across the TL084. Audio amplification and data acquisition systems benefit from this characteristic as they require high-speed signal processing.



Low Noise: Low noise characteristics ensure clean signal amplification and minimize unwanted signal interference on the TL084. As audio applications degrade sound quality due to noise, this feature is especially critical.



High Gain-Bandwidth Product: With the TL084, you can amplify signals at high gains without sacrificing bandwidth. Input signals of varying frequencies can be precisely amplified using this feature.



Wide Supply Voltage Range: TL084 supports a broad range of voltages, including single, dual, and triple digit voltages. Various configurations and operating conditions can be accommodated because of this flexibility in supply voltage.



Single or Dual Supply Operation: In addition to its single-supply operation, the TL084 also supports dual-supply operation, which gives circuit designers great flexibility. Electronic systems and applications can be compatible with this feature.



Internally Frequency Compensated: With its internal frequency compensation, the TL084 simplifies circuit designs and ensures amplifier stability. By reducing the need for external compensation components, this feature streamlines the design process.



Low Distortion: Signal amplification is accurate and distortion is minimal with a low harmonic distortion design. Audio amplifiers and instrumentation use this characteristic to ensure signal fidelity.

TL084 Op-Amp Applications

Because of its versatile characteristics, the TL084 operational amplifier (opamp) is used across a wide variety of analog signal processing tasks. We explore its key applications in detail below:



Audio Amplifiers: The TL084 is commonly used in preamplifiers and power amplifiers in audio amplifier circuits. This component is ideal for audio systems that require accurate audio reproduction because of its low noise, wide bandwidth, and low distortion characteristics.



Active Filters: TL084 op-amps have been used to make low-pass, high-pass, band-pass, and notch filters. They provide excellent noise rejection and signal filtering in audio, communication, and instrumentation applications due to their high input impedance and wide bandwidth.



Instrumentation Amplifiers: The TL084 op-amp is used in instruments and measurement systems for instrumentation amplifiers. Amplification of small signals in medical, industrial, and scientific instrumentation is made possible by these amplifiers' high gain, high common-mode rejection, and low noise.



Signal Conditioning: In signal conditioning circuits, TL084 op-amps are used to manipulate and process analog signals before they are further processed. By amplifying, filtering, or linearizing signals from sensors, they enhance measurement quality and ensure compatibility with downstream electronic systems.



Voltage Followers and Buffers: An Op-amp with TL084 is commonly used for voltage following and buffering (receiving and buffering voltages). Furthermore, these devices prevent loading problems on inputs and outputs, and they provide impedance matching between inputs and outputs. A variety of applications in audio, telecommunication, and instrumentation systems utilize these configurations for impedance bridging, impedance matching, and signal isolation.



Waveform Generators: An oscillator or function generator is constructed using TL084 op-amps. By creating precise and stable waveforms in electronic design and testing laboratories, their high gain-bandwidth product and stable operation can be used to create waveforms, test them, and calibrate them.



Active Mixers: An active mixer circuit utilizes TL084 op-amps for combining multiple input signals into a single output signal. Audio mixers are used as frequency converters, modulators, and demodulators in radio frequency receivers and communication systems.



Voltage Comparators: A digital output signal is generated based on the comparison result of two input voltage levels using TL084 op-amps. A voltage comparator is used in a variety of electronic systems in order to detect thresholds, to condition signals, and to control them digitally.



Sample and Hold Circuits: Analog input signals are acquired and maintained at a constant level using TL084 Op-Amps in sample-and-hold circuitry. Analog-to-digital converters that sample signals precisely and reliably use these circuits.
