The Power of RG11 Coaxial Cable: Advantages and Applications

What is RG11 Coaxial Cable?

For precise and effective signal transmission, RG11 coaxial cable serves as a sturdy conduit in networking and telecommunications operations. Part of the coextensive cable family, RG11 is largely regarded for its signal loss-free running of high-frequence dispatches and continuity. RG11 is the recommended option for applications ranging from residential to industrial since it has better performance and longevity than its predecessors thanks to thicker conductors and insulation.



Technical Specifications

1. Impedance: RG11 coaxial cable typically has an impedance of 75 ohms. The majority of RF connectors and equipment used in cable TV and internet installations are compatible with this impedance.

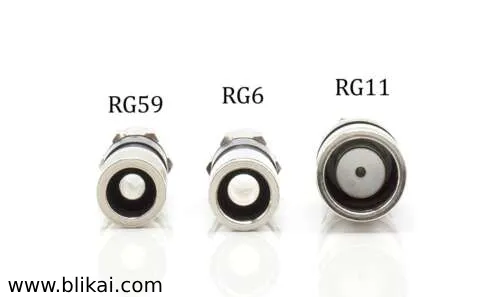

2. Conductor Size: Generally speaking, the center conductor of an RG11 cable is bigger than those of other coextensive cables, including RG6. It generally has a lower signal loss over longer distances and ranges between 14 and 18 AWG( American Wire Gauge).





3. Shielding: Double shielding is a standard specific of RG11 coaxial cables, which helps to reduce hindrance and save signal integrity. Generally, this shielding is composed of an aluminum or aluminum amalgamation pleated guard and a antipode guard.



4. Attenuation: Compared to thinner coextensive cables like RG6, RG11 cable has lower attenuation( signal loss per unit length). The attenuation for RG11 varies with frequence and length, still it generally falls between0.2 and0.4 dB/m.



5. Frequency Range: A many megahertz to several gigahertz of signal can be transmitted using RG11 coaxial cable due to its broad frequence range support. Because of this, it can be used for a wide range of purposes, similar as broadband internet, cable television, and satellite dispatches.



6. Jacket Material: An RG11 coaxial cable's external jacket is typically composed of polyvinyl chloride( PVC) or polyethylene( PE) to shield it from the rudiments, including humidity, sun, and bruise.



7. Connector Compatibility: Multitudinous connector types, including the type F connectors constantly set up in cable television and internet installations, are compatible with RG11 cables.



8. Temperature Rating: The temperature range that cables are intended to serve in, generally between-40 °C and 75 °C( 40 °F and 167 °F), is intended to give reliable operation under a range of environmental circumstances.



9. Voltage Rating: Depending on the maker and operation, RG11 coaxial cables are constantly rated for a maximum voltage that typically ranges from 1500 to 3000 volts.



Advantages over Other Cables

A variety of advantages distinguish RG11 coaxial cable from other kinds, including RG6 and RG59, which makes it applicable for specific uses when its features are salutary. RG11 coaxial cable's main advantages are as follows:



1. Lower Attenuation:

In comparison to RG6 and RG59 cables, RG11 cables have less attenuation (signal loss per unit length). Because RG11 can sustain signal integrity over extended distances without the use of signal boosters or amplifiers, it is the perfect choice for longer cable lengths.



2. Higher Signal Quality:

Signal deterioration and hindrance are reduced with RG11's bigger center captain and better shielding. As a result, the signal is stronger and clearer, which is pivotal for operations like high-description TV( HDTV) and high-speed internet.



3. Better Shielding:

Double shielding, or braid and foil, is a common feature of RG11, which improves protection against radio frequency interference (RFI) and electromagnetic interference (EMI). A more dependable signal is guaranteed in heavily interfered surroundings, like cities or close to other electronic devices, thanks to the enhanced shielding.



4. Higher Frequency Range:

RG11 cables can support a wider frequency range compared to RG6 and RG59. This makes RG11 suitable for advanced applications that require high-frequency transmission, such as satellite communications and broadband internet.



5. Greater Durability:

RG11 cables are frequently composed of stronger materials, such as thicker jackets. As a result, the cable is more resilient and long-lasting, making it appropriate for tough settings and outdoor installations.



6. Improved Voltage Handling:

RG11 cables can typically handle higher voltages compared to RG6 and RG59. This makes RG11 suitable for applications where higher voltage is present, providing safer and more reliable performance.



7. Suitable for Long Distance Installations:

Due to its lower attenuation and higher signal quality, RG11 is preferable for installations requiring long cable runs. This is particularly useful in large buildings, campuses, and other scenarios where long-distance signal transmission is necessary without significant loss.



Use Case Comparisons

RG11 vs. RG6:

• RG11 is better for long-distance and high-frequency applications but is more rigid and harder to install.
• RG6 is more flexible and easier to install, suitable for shorter runs and residential use where extreme distances and high frequencies are less critical.





RG11 vs. RG59:

• RG11 offers much lower signal loss and higher frequency capabilities, making it suitable for modern digital and high-frequency applications.
• RG59 is more appropriate for short-distance, low-frequency applications, such as CCTV installations and older analog systems.





Indeed though RG11 coaxial cable is more expensive and less flexible than other types, it's preferred for long-distance and high-frequence operations due to its advanced performance.



Applications

A. Residential Use

In residential settings, RG11 coaxial cable finds widespread applications in delivering high-definition television (HDTV) signals, internet connectivity, and digital telephone services. Its ability to transmit signals over longer distances with minimal loss makes RG11 particularly suitable for large homes or properties where traditional RG6 cables may falter. Strong construction enhances RG11's resistance to outside interference, guaranteeing homeowners a steady and uninterrupted viewing experience. The RG11 offers occupants improved connectivity and entertainment options, whether they are streaming the newest blockbuster pictures in stunning picture quality or enjoying pause-free online gaming.



B. Commercial and Industrial Applications

RG11 coaxial cable is used as the foundation for numerous networking and dispatches systems in marketable and artificial settings. RG11 offers a wide range of operations, including videotape surveillance, access control, voice dispatches, and data networking, in locales ranging from office structures and retail centers to manufacturing shops and data centers. When constructing a reliable dispatches structure under grueling conditions, RG11 is the material of choice due to its exceptional signal transmission capabilities and adaptability. RG11 guarantees smooth connectivity and operating efficiency across a broad range of commercial and industrial applications, whether it's moving vital data between distant endpoints or enabling real-time monitoring of industrial operations.



C. Enhanced Signal Transmission

The capacity of RG11 coaxial cable to give advanced signal transmission over extended distances while conserving signal integrity is one of its main advantages. Since RG11 has a low attenuation rate compared to thin coextensive cables like RG6, it can transmit signals over longer distances with little loss. Because of this capability, RG11 is very helpful in situations when signals need to go a long way, including extensive cabling lines in apartment buildings, business buildings, or outdoor installations. Furthermore, the robust design and enhanced shielding of RG11 reduce signal interference, allowing for the clearer and more dependable transmission of data, video, and audio information.  Whether it's delivering high-definition television broadcasts or supporting high-speed internet connections, RG11 ensures optimal signal transmission quality in various applications.



Case Studies

A. Real-world Examples of RG11 Implementation

Several real-world instances show how effective and adaptable RG11 coaxial cable is in a range of sectors and uses. For instance, RG11 is used by large cable companies in the telecommunications industry to provide millions of customers with digital TV and high-speed internet. Even in geographically difficult places, RG11 implementation guarantees dependable connectivity and high-quality service delivery. Within the security and surveillance sector, RG11 is utilized by organizations to send video feeds from surveillance cameras over extended distances, facilitating thorough monitoring of sizable structures like shopping malls, airports, and industrial sites. These real-world implementations underscore RG11's suitability for demanding communication and networking requirements.



B. Success Stories and Testimonials

The success stories and testimonials from users of RG11 coaxial cable further validate its effectiveness and performance in diverse applications. For instance, telecommunications providers often highlight the improved reliability and signal quality achieved through the deployment of RG11 in their networks. Customers praise the seamless streaming experience and faster internet speeds enabled by RG11, leading to higher satisfaction levels and loyalty. Businesses that have included RG11 into their infrastructure also vouch to its robustness and longevity, mentioning less maintenance problems and outages in comparison to other cables. The fact that RG11 has been able to provide tangible advantages and successful results in a variety of industries and use cases is evident from these testimonials.



Conclusion

To sum up, RG11 coaxial cable is becoming an essential component of contemporary communications systems because of its exceptional dependability, efficiency, and adaptability. We looked at RG11's features, benefits, practical uses, and future prospects during this investigation. Because of its thicker conductors, better shielding, and less attenuation, RG11 is ideal for high-frequency transmissions over extended distances with little signal loss, making it useful in a range of settings and industries. Its significance spans from major business enterprises needing reliable communications networks to private households seeking seamless connectivity. RG11's proven track record and enduring relevance underscore its significance in today's interconnected world.



Final Thoughts

It is critical that we promote further research and use of RG11 coaxial cable as we look to the future. Since RG11 can accommodate developing technologies and satisfy the growing demand for reliable connectivity, it continues to be a wise investment for people, companies, and sectors of the frugality. Unborn exploration and development enterprise aimed at enhancing RG11's functionality, robustness, and interoperability with arising technologies will open the door to indeed more significant developments in dispatches structure. A more connected and digitally empowered society will also affect from the broad relinquishment of RG11 across numerous diligence, which will promote profitable growth, productivity, and creativity. Adopting RG11 guarantees a seamless and sustainable future for future generations and shows a dedication to improved communications and connectivity.
