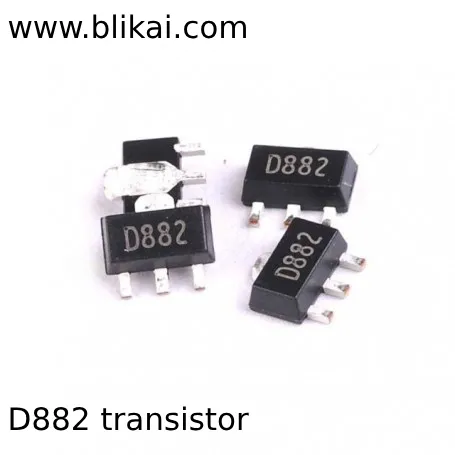

D882 Transistor: Understanding Its Functionality

I. Introduction

Extensively employed in a variety of electronic circuits, the D882 transistor is a semiconductor device famed for its rigidity and responsibility. Since it can drive current inflow, the D882 is an essential bipolar junction transistor( BJT) for switching and modification operations.



II. Basic Specifications

1. Part Number: D882

2. Type: NPN (Negative-Positive-Negative) bipolar junction transistor

3. Package Type: TO-126, TO-251, TO-220, or similar through-hole package

4. Collector-Base Voltage (VCBO): Typically around 40V to 60V

5. Collector-Emitter Voltage (VCEO): Typically around 30V to 40V

6. Emitter-Base Voltage (VEBO): Typically around 5V to 7V

7. Collector Current (IC): Maximum continuous collector current, often in the range of 2A to 3A

8. Base Current (IB): Maximum continuous base current, usually a few mA

9. Power Dissipation (PD): Maximum power that the transistor can dissipate without exceeding its maximum junction temperature, generally in the range of 1W to 2W

10. Transition Frequency (fT): Frequence at which the transistor's current gain( hFE) falls to concinnity, frequently in the range of a many hundred megahertz





III. Operating Principle

A. Explanation of How the D882 Transistor Works

1. Transistor Basics: Bipolar junction transistors, or BJTs for short, are transistors of the NPN type, like the D882. The emitter, base, and collector semiconductor layers make up its three layers.



2. Biasing: A significantly bigger current overflows between the collector and the emitter( IC) in the base mode due to a small current flowing between the base and the emitter( IB). By applying a bias voltage to the base-emitter junction, this control is accomplished.



3. Amplification: The collector current fluctuates more when a tiny signal voltage is given to the base-emitter junction because it modifies the current passing through the junction. Weak signals can be enhanced by the transistor thanks to this amplification effect.



4. Saturation and Cutoff: Saturation and interrupt are the two primary operating states of the D882 transistor. When a transistor reaches saturation, it is fully on and the collector to emitter current is at its highest. The transistor is completely off when it is in the off mode, and very little current passes between the emitter and collector.



5. Controlled Switching: Additionally, the D882 transistor functions as a switch. The connected circuit is effectively switched on by delivering a substantial base current to turn the transistor fully on. This also permits a significant collector current to flow. On the other hand, lowering or eliminating the base current shuts off the transistor, cutting off the collector current and the circuit.





6. Temperature Considerations: Temperature variations can have an impact on the D882's working characteristics, just like they can on any transistor. In high power applications in particular, steady and dependable performance necessitates proper thermal management.



B. Understanding Its Role in Electronic Circuits

The D882 transistor serves various roles in electronic circuits, primarily as an amplifying or switching component. In amplification applications, it can be used to boost the strength of signals, allowing small input signals to control larger output signals. For signal processing circuits, equalizers, and sound amplifiers, this makes it indispensable. Furthermore, in the event of a control signal's absence or presence, the D882 transistor can function as a switch to turn high-power circuits on or off. Voltage controllers, LED lights, and motor control are just a many of the operations for this switching power.





IV. Applications

1. Amplification Circuits: The D882 transistor is a common element in audio amplifiers, where it boosts low- power audio signals to situations applicable for powering speakers or headphones. It's applicable for low to medium power modification operations due to its high gain and low noise position.



2. Switching Circuits: It can respond to tiny control signals by turning on and off heavy power loads. Relay driver circuits, motor control circuits, and LED driver circuits are typical examples.



3. Voltage Regulation: In voltage regulator circuits, the D882 transistor can be utilized to stabilize voltage levels. The D882 transistor can control the output voltage by controlling the base current, which gives delicate electronic components a steady power source.



4. Inverter Circuits: In these circuits, the D882 transistor is generally employed to gormandize turn on and off the DC input, performing in an AC affair waveform. For systems like solar power systems and uninterruptible power inventories( UPS), inverters are pivotal corridor.



5. Oscillator Circuits: The D882 transistor can be incorporated into oscillator circuits to induce periodic signals or oscillations. These circuits are used in colorful electronic bias, including timepiece circuits, signal creators, and frequence synthesizers.



6. Pulse Generator Circuits: A D882 transistor is used in palpitation creator circuits to induce precise beats with different extents and frequentness. These circuits are essential for operations including timing circuits, palpitation range modulation( PWM) control, and digital communication systems.



7. Voltage Amplification: The D882 transistor can also be employed in circuits that increase affair voltage by amplifying nanosecond variations in the input voltage. These circuits are frequently utilized in sensor and instrumentation signal conditioning applications.



V. Advantages and Disadvantages

A. Advantages

1. High Gain: The D882 transistor can be used for modification operations where low input signals need to be amplified to lesser affair situations because of its high current gain.



2. Low Cost: The D882 is a nicely priced general purpose transistor that can be used for a variety of electronic systems and operations.



3. Wide Availability: Electronic masterminds, contrivers, and manufacturers can fluently reference the D882 transistor due to its wide vacuity from multiple manufacturers.



4. Versatility: Due to its rigidity, it can be employed in oscillator circuits, switches, voltage controllers, amplifiers, and other operations.



5.Compact Size: The D882 transistor is ideal for small electrical bias and circuits because of its featherlight and compact design.



B. Common Challenges or Disadvantages

1. Limited Power Handling: In comparison to transistors with higher power, the D882 transistor can only handle a limited amount of power. Applications demanding high power levels or those using high currents might find this unsuitable.



2. Heat Dissipation: The D882 produces heat as it operates, just like any other transistor. Applicable heat immersion and dispersion are pivotal in high power operations to avoid overheating and guarantee responsibility.



3. Voltage and Current Ratings: To avoid damage or failure, the D882 transistor has certain voltage and current conditions that mustn't be exceeded. When operating the transistor within the given parameters, caution should be used.



4. Speed Disadvantages : The D882 transistor can be used for a lot of switching operations, but it might not be suitable to supply some high frequence operations with theultra-fast switching pets that they need.



5. Sensitivity to Environmental Factors: Rudiments including moisture, temperature, and electromagnetic hindrance can have an impact on the D882 transistor's functioning. It could be necessary to give acceptable environmental operation in delicate operations.





VI. Practical Considerations

A number of practical factors need to be taken into account while working with the D882 transistor in order to guarantee the best possible performance and dependability of the electrical circuits.



A. Proper Biasing and Configuration:

The transistor will only function under the intended operating conditions if the biasing is done correctly. To achieve correct amplification or switching, pre-biasing entails putting the right voltages and currents across the transistor terminals. This entails employing appropriate resistors or biases to tune the base-emitter voltage (VBE) and collector current (IC) to the desired values.



B. Thermal Management Strategies:

During operation, the D882 transistor dissipates heat, particularly when driving large currents or in switching operations. To keep the transistor from overheating, which can deteriorate its performance or indeed lead to a failure, effective thermal operation is pivotal. Using heat cesspools, making sure there's enough tailwind, and choosing packaging with respectable thermal rates are some possible strategies.



C. Component Selection Guidelines:

An appropriate choice of surrounding components is essential to the D882 transistor's functionality and dependability. This involves choosing resistors, capacitors, and other parts that fit the transistor specifications and the needs of the application. Component ratings, such as voltage and power handling capability, should be carefully considered in order to prevent the transistor or other components in the circuit from becoming overvoltaged. Additionally, choosing components with low tolerance can aid in achieving reliable performance in a variety of operating environments.



VII. Conclusion

In conclusion, the D882 transistor is a flexible semiconductor that finds extensive utility in switching and amplification circuits in electronic devices. The D882 transistor is a vital component of many electronic systems and devices because of its durable construction and dependable operation, which includes signal processing, voltage regulation, and power control.



Final Thoughts

It's crucial to take into account aspects like operating circumstances, voltage and current requirements, thermal management, and compatibility with other components when using D882 transistors in electronic circuits. Through meticulous assessment of these factors and adherence to established circuit design guidelines, engineers may optimize D882 transistor-based circuits' performance, lifespan, and dependability, guaranteeing optimal functionality and safety across a range of application scenarios.
