TCAN330GDCNR: Applications, Datasheet and Features

Product Overview

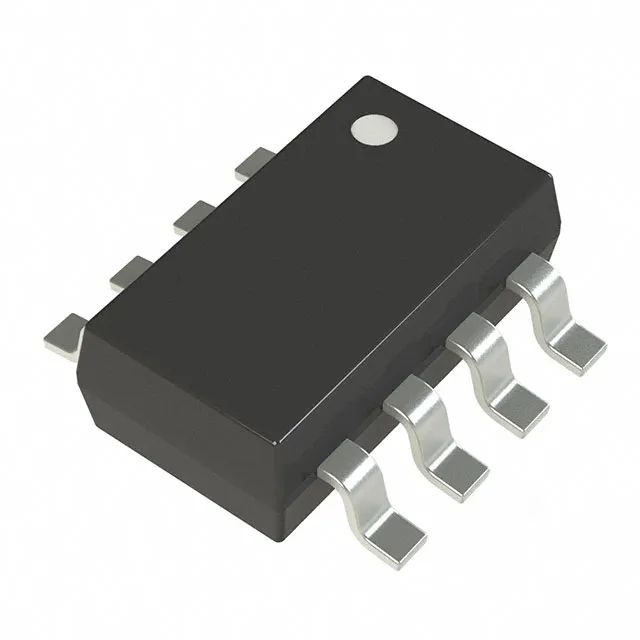

Part Number: TCAN330GDCNR

Manufacturer: Texas Instruments

Description: Drivers/Receivers 1-1 Terminations 8 Pin TCAN330 Receivers

Lead Time: Can Ship Immediately

Datasheet: Datasheet PDF

Category: Sensor and Detector Interfaces

Number of Lines: 8

Short Description

TCAN330GDCNR is a high-speed transceiver from Texas Instruments that implements the Controller Area Network (CAN). These components are designed for high-speed automotive, industrial, and automation applications that require reliable data transmission at speeds up to 5 Mbps. The rugged TCAN330GDCNR ensures reliable performance and durability in harsh environments with its low-power mode and ESD (Electrostatic Discharge) protection.



TCAN330GDCNR delivers enhanced safety and reliability to CAN bus communication systems by integrating bus fault protection, thermal shutdown, and short-circuit protection. In addition to its compact design and surface-mountability, it delivers consistent performance in diverse environmental conditions because of its wide operating temperature range. As a universal CAN bus controller, the TCAN330GDCNR delivers reliable, high-speed communication over CAN bus networks for automotive ECUs, industrial control systems, or factory automation equipment.



Product Technical Specifications

TCAN330GDCNR Features

A high-speed, comprehensive, and efficient CAN (Controller Area Network) transceiver developed by Texas Instruments, the TCAN330GDCNR offers robust and efficient communication in industrial, automotive, and automated applications. This component has the following detailed features:



High-Speed Data Transmission: Using the TCAN330GDCNR, microcontrollers and CAN bus networks can communicate at high data transfer rates of up to 5 Mbps. High-speed data transfer enhances real-time monitoring and control in time-sensitive applications because it ensures efficient data transfer.



Low-Power Mode: With the TCAN330GDCNR, energy-efficient operation is achieved by reducing power consumption during standby or idle periods. Battery-powered applications benefit from this feature, which extends battery life and reduces power consumption.



Robust ESD Protection: In addition to robust Electrostatic Discharge (ESD) protection, the TCAN330GDCNR provides protection to the transceiver and connected devices against damage caused by electrostatic discharges. As a result, the component is more reliable, durable, and can be operated under difficult conditions for a long period of time.



Bus Fault Protection: When there is a fault condition on the CAN bus, such as a short circuit or signal error, integrated bus fault protection mechanisms detect and react. It isolates faulty nodes and prevents communication disruptions in the CAN network, maintaining its integrity.



Thermal Shutdown: In response to excessive temperature conditions, the TCAN330GDCNR activates thermal shutdown. In high-temperature environments, this protection mechanism ensures safe and reliable operation by preventing overheating and damage.



Short-Circuit Protection: In addition to protecting devices connected to the CAN bus and the transceiver, short-circuit protection also protects the transceiver from damage. In the event of a fault, this feature enhances the component's robustness.



Compact Package: Featuring a surface-mountable design and compact packaging, the TCAN330GDCNR is available for easy integration into electronic designs. Integrated automated assembly processes and its small footprint simplify the assembly and manufacturing of electronic systems.



Wide Operating Temperature Range: Its universal design means that it performs consistently under a wide range of environmental conditions, thanks to its ability to operate across a wide temperature range. In applications subject to temperature extremes including automotive, industrial, and outdoor, its wide operating temperature range makes it ideal for use in such situations.

TCAN330GDCNR Applications

Because of its robust features and reliable performance, Texas Instruments' TCAN330GDCNR is suitable for a wide range of CAN (Controller Area Network) communications applications. This component can be used in the following ways:



Automotive Electronics: Among the different ECUs (Engine Control Modules) within the vehicle, the TCAN330GDCNR facilitates communication between engine control modules (ECMs), transmission control modules (TCMs), and body control modules (BCMs). Consequently, vehicles perform better, are safer, and are more efficient thanks to real-time data exchange with functions such as engine management, transmission control, chassis control, and advanced driver assistance systems (ADAS).



Industrial Automation: Machines, production processes, and equipment connected to industrial automation systems are monitored and controlled using the TCAN330GDCNR. As a result, manufacturing process control, monitoring, and diagnostics are facilitated with seamless communication between PLCs (Programmable Logic Controllers), sensors, actuators, and other devices.



Factory Automation: The TCAN330GDCNR is essential for establishing communication networks in factory automation applications, such as supervisory control and data acquisition (SCADA), distributed control systems (DCS), and industrial IoT (Internet of Things). In industrial settings, it ensures optimal performance, productivity, and efficiency through remote monitoring, control, and management.



Commercial Vehicles: Commercial vehicles, such as trucks, buses, and tractors, can communicate with the TCAN330GDCNR through various systems and components. Commercial transportation applications benefit from greater efficiency, reliability, and safety through the exchange of data related to engine management, vehicle diagnostics, telematics, and fleet management.



Medical Devices: Among medical devices, the TCAN330GDCNR is one of the best options for communication. It enables communication between patient monitors, infusion pumps, diagnostic equipment, and medical imaging systems. The technology ensures accurate diagnosis, treatment, and patient care by ensuring reliable data exchange.



Renewable Energy Systems: Solar inverters, wind turbines, and energy storage systems use TCAN330GDCNRs to connect power electronics, monitoring devices, and control systems. As a result of its capability to exchange data effectively, to integrate with the grid, and to remotely monitor renewable energy installations, it contributes to better-managed energy systems.



Home Automation: A smart home system such as a thermostat, lighting control, security system, and appliance can be controlled through the TCAN330GDCNR for home automation applications. In addition to increasing comfort, convenience, and energy efficiency, it allows seamless integration and interoperability between different home automation devices.

Design

A number of key design elements have been incorporated into the TCAN330GDCNR to ensure robust performance and reliable communication across a wide range of applications. Its design features are as follows:



High-Speed CAN Transceiver: Data is transmitted efficiently over Controller Area Networks (CAN) using a high-speed CAN transceiver in the TCAN330GDCNR. The transceiver supports data rates of up to 5 Mbps, allowing devices and systems to communicate quickly.



Integrated Protection Mechanisms: In order to ensure the integrity of communication, the TCAN330GDCNR has built-in protection mechanisms. Protection against transient events and spikes in voltage can be provided by ESD (Electrostatic Discharge) protection, overvoltage protection, and reverse polarity protection mechanisms.



Low-Power Operation: Low-power operation modes are available on the TCAN330GDCNR to minimize power consumption and maximize energy efficiency. By reducing overall power consumption while idle or standby, battery-powered applications can extend battery life.



Compact Form Factor: The compact form factor of the TCAN330GDCNR makes it ideal for use in space-constrained electronic designs. In densely populated circuit boards, small footprints make installation easier and maximize space available.



Wide Temperature Range: A range of temperature conditions can be handled reliably by the TCAN330GDCNR to ensure consistent performance in various environments. This product is suitable for use in a wide range of temperature-sensitive applications, such as automotive, industrial, and outdoor.



Surface-Mountable Package: Surface-mount assembly processes are made easier with the TCAN330GDCNR's surface mountable package. Electronic systems can be manufactured and assembled more efficiently and cost-effectively with this package type.



Comprehensive Compatibility: CAN bus protocols, communication standards, and various microcontrollers make the TCAN330GDCNR compatible with a wide range of devices and systems. While It is versatile, it has no need for extensive modifications or additional components to integrate seamlessly into a variety of electronic designs.

Final Verdict

A robust and versatile CAN (Controller Area Network) transceiver, the TCAN330GDCNR provides reliable communication in a wide range of electronic systems. CAN (Controller Area Network) transceivers are one of the cornerstone components of high-speed networks. The device has advanced features that include the ability to transmit high-speed data, the ability to incorporate protection mechanisms, to operate in low power, to have a compact form factor, and to operate at wide temperatures.  Automobile, industrial, and other applications require the TCAN330GDCNR to meet rigorous requirements.



It facilitates seamless data exchange and control in a wide variety of electronic systems, providing engineers and designers with efficient and dependable communication networks. Automotive electronics, industrial automation, medical devices, and renewable energy systems rely on its proven performance, robustness, and compatibility for reliable communication.



TCAN330GDCNR is a reliable, versatile, and efficient component that is useful in a wide range of industries. Engineers seeking to implement high-speed communication solutions with confidence and reliability will find it to be an invaluable asset due to its comprehensive features and performance.
