Dual In-Line Memory Modules(DIMM): Advancements and Applications

What are Dual In-Line Memory Modules(DIMM)?

Dual In-Line Memory Modules(DIMM) are an essential part of contemporary computer designs. In substance, a DIMM is a kind of intertwined circuit that attaches to the motherboard in order to expand the quantum of memory. DIMMs give independent access to every memory module, in discrepancy to previous SIMMs( single inline memory modules). It is commonly used in a range of computing devices and usually consists of numerous dynamic random access memory (DRAM) chips linked to a printed circuit board (PCB). from desktop PCs to workstation servers.



Advancements in Dual In-Line Memory Modules(DIMM) Technology

A. Increased Capacity

   1. Throughout the years, DIMM module capacity has grown dramatically. The initial DIMM modules had megabyte-scale capacity, thanks to advancements in semiconductor technology and manufacturing techniques. But gigabytes or terabytes of data can be stored in current modules. The expanding data requirements of commercial and consumer computer applications depend on this growth trend. Manufacturers of memory are now able to cram more memory cells into a given area because to innovations like 3D stacking and sophisticated lithography. Thus, the DIMM's capacity is significantly increased.

   2. The growth of data- ferocious operations like big data analytics, artificial intelligence, and high- description videotape processing is one of the numerous causes propelling DIMM capacity expansion. This trend has also been backed by the growth of pall computing and the Internet of Things( IoT). This is due to the fact that these technologies need a tonne of memory in order to maintain massive data sets and execute computations in real time. Furthermore, the need for increased speed in multimedia and gaming applications has made the use of additional memory resources necessary. Moreover, this raises the need for higher DIMM capacity.



B. Enhanced Performance

   1. Enhancing the overall performance of the system requires raising the speed of the DIMM modules. Compared to earlier generations, modern DIMMs offer significantly greater data transfer speeds, especially those that comply with the DDR4 and DDR5 specifications. Faster application execution and data access are made possible by these enhancements. High-performance computer settings require this. advancements like faster clock speeds These speeds are improved by increased bus width and enhanced signal integrity. As a result, the system can complete increasingly difficult jobs more quickly.

   2. An additional crucial component of DIMM optimization is latency reduction. Better responsiveness and quicker data gathering are the results of lower latency. Applications like sophisticated memory controller design that demand real-time processing should take note of this. To reduce latency, better error correction techniques and cache management have been developed. Furthermore, improvements have been made to DRAM architecture, such as the advent of low latency memory technology. Memory modules need less time to access and transfer data as a result. This will assist in raising the system's overall performance.



C. Energy Efficiency

   1. Power management advancements are a major factor in the increased power efficiency of DIMM technology. DIMMs from the modern era have characteristics like dynamic voltage scaling. This modifies power usage based on workload requirements. as well as a sophisticated sleep mode that lowers power usage while not in use. These developments contribute to more than just increasing mobile devices' battery life. However, they also contribute to a decrease in the data center's overall energy usage. Both the running costs and the environmental effect decrease as a result.

   2. These increases in energy efficiency have a major effect on the total energy consumption of the system. Controlling power usage has becoming more crucial as computing systems' performance and capacity continue to grow. By lowering the amount of power needed for memory operation, energy-efficient DIMMs contribute to the construction of greener data centers. As a result, less cooling is needed and operating expenses related to running massive computing centers for consumer gadgets are decreased. Extended battery life and enhanced performance in mobile devices are made possible by memory modules with improved power efficiency, which enhances the user experience.

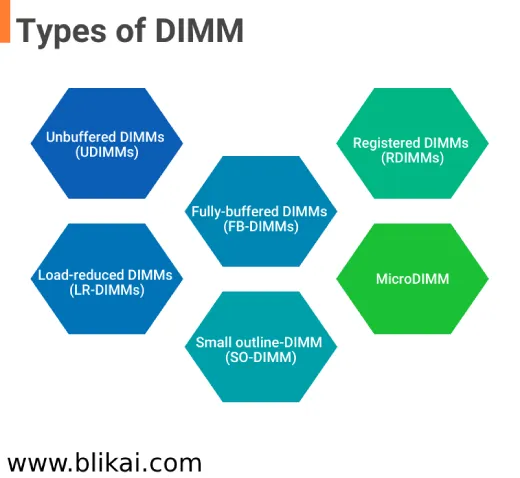

Types of Dual In-Line Memory Modules(DIMM)

Dual Inline Memory Modules, or DIMMs, come in a variety of forms, each intended to meet particular conditions and uses. The primary types of DIMM modules are:





1. SDRAM DIMM

- SDR (Single Data Rate): Transfers data on the rising edge of the timepiece signal.

- DDR (Double Data Rate): Transfers data on both the rising and falling edges of the timepiece signal, effectively doubling the data rate.



2. DDR SDRAM DIMM

- DDR (DDR1): The first generation of DDR SDRAM.

- DDR2: Improved performance over DDR1 with faster pets and advanced bandwidth.

- DDR3: More gains in power economy, bandwidth, and speed.

- DDR4: Better bandwidth and performance at a reduced power consumption than DDR3.

- DDR5: The most recent model, which offers even more performance, capacity, and speed enhancements.



3. ECC DIMM

- ECC (Error-Correcting Code): Has an extra memory chip with the ability to identify and fix data corruption. They are utilized in systems and servers where maintaining data integrity is essential.



4. Registered (Buffered) DIMM

- RDIMM: Includes registers that connect the system memory controller and DRAM module. Ensure a stable electrical load. and offers more server application scalability.

- LRDIMM (Load-Reduced DIMM): Use buffers to lessen the memory controller's workload. supports faster and larger capacities than RDIMM



5. UDIMM (Unbuffered DIMM)

- UDIMM: Neither registers nor buffers are present. Typically, they are utilized in laptop and desktop computers. When compared to registered DIMMs, they're less precious, but they give lower capacity and speed.



6. SO-DIMM (Small Outline DIMM)

- SO-DIMM: Notebook PCs use DIMMs with small form factors. DDR, DDR2, DDR3, DDR4, and DDR5 are some of the different types of small form size computer and networking technology available.



7. MicroDIMM

- MicroDIMM: Even smaller than SO-DIMM, used in ultra-compact devices like subnotebooks and some portable devices.



8. FB-DIMM (Fully Buffered DIMM)

- FB-DIMM: Uses the advanced memory buffer (AMB) to boost the bandwidth and scalability of memory. Usually, they are found in expensive workstations and servers.



9. NVDIMM (Non-Volatile DIMM)

- NVDIMM: Combines NAND and DRAM flash memory to enable data storage even in the event of a power outage. Applications requiring high availability and data permanence use it.



Applications of Dual In-Line Memory Modules(DIMM) Technology

Computer memory commonly uses Dual Inline Memory Module (DIMM) technology. Because of their structure and capabilities, DIMMs are essential to the performance and functionality of many modern systems, particularly for Random Access Memory (RAM) modules in various computing devices. Here are some significant applications for DIMM technology:



1. Personal Computers (PCs)

A fundamental part of both desktop and laptop computers are DIMMs. It is the primary type of temporary storage that the CPU uses to swiftly store and retrieve data.



2. Servers

DIMM technology in servers is essential for handling numerous operations and massive volumes of data at once. Server DIMMs frequently have Error- Correcting Code( ECC) to descry and correct data corruption, icing high trustability and uptime.



3. Workstations

A workstation intended for graphic design and related duties. DIMMs are required for high-speed data processing and substantial memory capacity in scientific computing and film editing. Applications requiring a high level of performance require this.



4. Gaming Consoles

DIMM technology is used by high-performance gaming consoles to meet the memory requirements of contemporary video games. This guarantees quick loading times and fluid gameplay.



5. Networking Equipment

DIMMs are used by network equipment like switches, firewalls, and routers to effectively handle high traffic volumes. This enhances the efficiency and stability of the network.



6. Embedded Systems

DIMMs are used in embedded systems for industrial applications, automotive controls, and telecommunications equipment. These systems benefit from the robust and reliable memory solutions provided by DIMM technology.



7. Data Centers

DIMM technology is used by data centers that support big data analytics and pall computing to supply the memory coffers demanded for virtual surroundings and big data processing jobs.



8. High-Performance Computing (HPC)

DIMMs give high bandwidth and low quiescence memory access for high performance computing( HPC) systems that reuse enormous data sets and sophisticated computations in scientific exploration, simulation, and fiscal modeling.



9. Consumer Electronics

DIMM technology is used by several cutting-edge electronics, such smart TVs and digital cameras, to support intricate features and enhance performance.



10. Artificial Intelligence (AI) and Machine Learning (ML) Systems

Large memory coffers are demanded by AI and ML systems for the training and conclusion processes. The speed and capacity required to support these demanding operations are offered by DIMMs.





11. Virtualization

In virtualised environments where multiple virtual machines (VMs) run on a single physical server, DIMMs are critical in allocating memory to each VM to ensure efficient and reliable operation.



Key Features of Dual In-Line Memory Modules(DIMM) Technology:

- Increased Capacity: When compared to older memory technologies, DIMMs can offer larger memory capacities.

- Improved Speed: Offers quicker data transfer speeds, which are necessary for the operation of modern computers.

- Error Correction: Error correction is possible with ECC DIMM. Boost system dependability.

- Dual-Channel and Multi-Channel Configurations: The system's overall performance and memory bandwidth are enhanced by these configurations.

- Power Efficiency: DIMM technology advancements contribute to lower power consumption. Particularly for servers and data centers, this is crucial.





Conclusion

One cannot stress the significance of DIMM technology in contemporary PCs. DIMMs are the fundamental components that offer the speed and memory capacity needed for a variety of applications. from commonplace gadgets to data centers' high-performance servers. Their function in enhancing processing efficiency The significance of these occupations is highlighted by enabling real-time data processing and support for intricate computational operations. As the essential component of memory architecture, DIMMs have changed to keep up with the rapid advancement of technology. continuously expanding the realm of computing's potential.
