Comparing 18650 and 21700 Batteries: What Sets Them Apart?

Overview

Computers, control systems, mobile gadgets, and electric automobiles all heavily depend on lithium-ion rechargeable batteries, which are available in 18650 and 21700 varieties. 18650 and 21700 batteries are compared and examined in the essay.





A short description of 18650



The lithium- ion battery, frequently applied to as the 18650 battery sometimes, is a globular device with confines of around 65 mm in length and 18 mm in breadth. Depending on the brand and particular chemistry, its capacity generally falls between 2000 and 3500 mAh. Electric lights, laptops, and vaping equipment have all constantly used it as the default option for a veritably long time.



A detailed Description of 21700



The 21700 battery, a generally advanced round lithium-ion battery, highlights a breadth of generally 21 mm and a length of around 70 mm, gaining its title from these dimensions. Regularly, the capacity of the 21700 battery falls interior the expand of 3000 mAh to 5000 mAh, with certain models indeed advertising more prominent capacities. Owing to their predominant energy density and improved thermal performance, 21700 batteries are rapidly finding utilize in high-performance employments such as electric vehicles, control devices, and electric lamps.







Different Features Between 18650 and 21700



The features of 18650

Large capacity: Lithium batteries have a capacity of at least 1200 mAh, if not 3600 mAh, while ordinary cells have a capacity of only 500 mAh.



High energy storage effectiveness and high stability: It can still maintain full performance output at temperatures below 70 °C, and there's generally a protection circuit inside to prevent the battery from burning out.



No memory effect: There's no need to discharge all the remaining power before charging; it can be charged and discharged at any time, and it's comfortable to use.



High charge-discharge cycle life: Lithium batteries have tens of thousands of cycles and high temperature resistance.



Environmentally friendly, no dangerous substancesnon-toxic,non-polluting, and RoHS quality certification.



The features of 21700

Since the positive electrode has been converted to nickel, the performance is not compromised, the consistency is good, and it can be used immediately as a battery pack.



Lithium-ion rechargeable battery



Dimensions: Diameter: 21mm, Length: 70mm



Weight: about 65 grams



Rated voltage: 3.6V



Standard capacity: 4800 mAh



Internal resistance: approx. 13 mOhm



Charging voltage: 4.2V



Discharge cut-off voltage: 2.5V



Discharge current: 10A (15-20A can be discharged instantly).



It can be used for flashlights, scooters, LED lights, mining lights, lighting products, mobile power supplies, provisory power supplies, computers, mobile devices,  motor vehicles, bikes, dispatches, medical, energy storage, solar energy, and other equipment.





Significant Disparities between 21700 and 18650

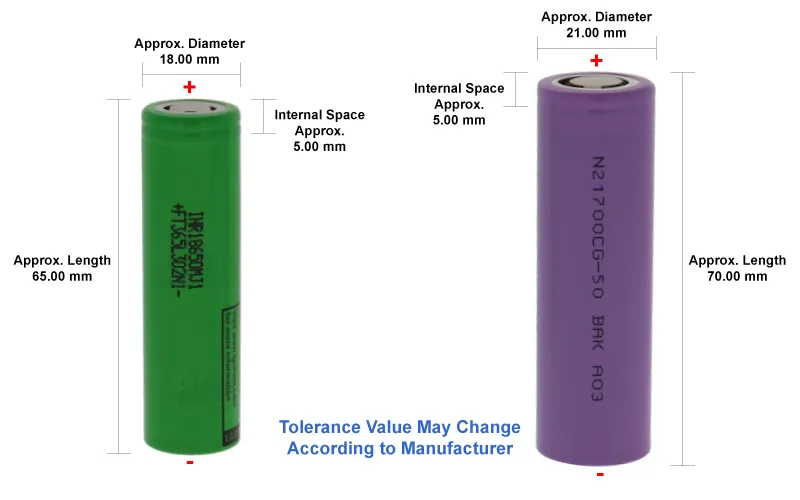

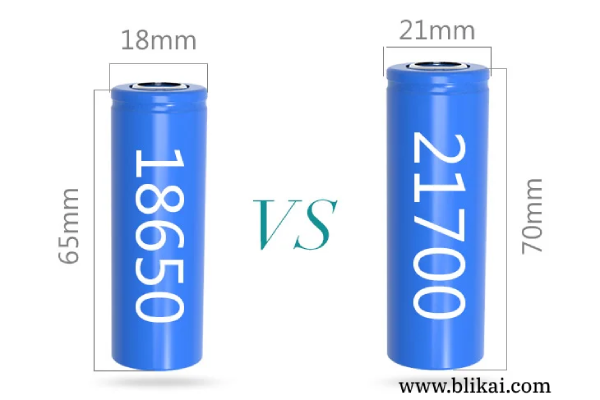

Size: The 21700 battery's larger diameter and extension as compared to the 18650 battery make its increased capacity and energy consistency feasible.

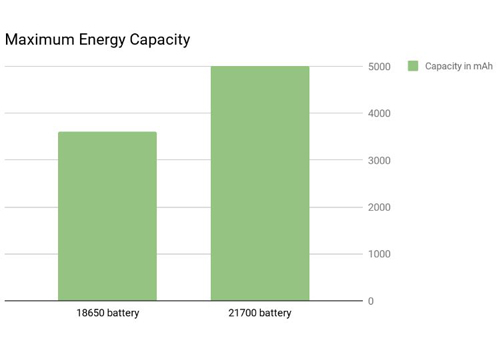

Capacity: 21700 batteries may withstand longer periods between charges than 18650 batteries since they typically have a larger capacity.



Performance: 21700 batteries are typically more effective and perform better because of their greater size and increased capacity, especially in high-drain applications.



Adoption: While 18650 batteries remain extensively used and established in the market, 21700 batteries are gaining popularity, particularly in industries taking advanced energy consistence and power outputs.







Specific Information About 18650 and 21700









Advantages and Disadvantages on 18650 and 21700



18650 Advantage

1) Large storage capacity

The capacity of an 18650 battery ranges from 1200 mAh to 3600 mAh, while the capacity of a standard battery is just about 800 mAh. When paired with an 18650 battery pack, it can fluently exceed 5000 mAh.



2) Extended Life

The 18650 battery has a long service life, with a cycle life of further than 500 times during typical operation, which is further than double that of standard batteries.



3) Veritably High Voltage: The voltage of an 18650 lithium battery is  generally3.6 V,3.8 V, or4.2 V, which is significantly higher than the1.2 V voltage of nickel- cadmium or nickel- substance hydride batteries.



4) There is no memory effect

It is not necessary to drain the remaining power before charging, making it more convenient to use.



5) Internal resistance is low

A domestic polymer battery may have an internal resistance as low as 35m, which considerably lowers the battery's self-consumption and lengthens the phone's standby life. The internal resistance of polymer batteries is also lower than that of ordinary liquid batteries. Emerging as the most promising substitute for nickel-metal hydride batteries, this high-discharge current polymer lithium battery is ideal for remote control models.



6) It may be linked in parallel or series to create an 18650 lithium battery pack.



7) Broad usage

Notebook computers, walkie-talkies, movable DVD players, instrumentation, audio facility, model airplanes, toys, videotape cameras, digital cameras, and other electronic devices can all use 18650 batteries.





Disadvantage on 18650

1. Limited Energy: Density Compared to newer battery technologies, similar to 21700 batteries, 18650 batteries have a lower energy density. This means they store lower energy per unit volume, performing in shorter runtimes for devices using 18650 batteries.



2. Heat Generation: 18650 batteries have the capacity to produce heat when operating at high drain or while charging quickly. This accumulation of heat can result in shortened battery life, worse performance, or, in severe situations, safety hazards including thermal runaway or cell venting.



Advantages on 21700

1. Increased capacity：21700 batteries generally have a higher capacity than 18650 batteries. Their typical capacities range from around 3000mAh to 5000mAh, and in some cases indeed higher, and they give further power for longer-lasting performance in high-power operations.



2. Advanced thermal performance： The larger size of the 21700 battery allows for better heat dispersal during high- power operation. This can reduce heat build- up and upgrade overall thermal operation, which can enhance battery performance and safety.



3. Higher power output： Due to the larger size and enhanced thermal characteristics, the 18650 battery can give a advanced power output compared to the 21700 battery. This makes them particularly suitable for operations that need high power,  similar as electric vehicles, power tools, and advanced lighting systems.



4. Compatibility with fast charging：The larger size and enhanced thermal performance of the 21700 battery make it ideally suited for fast charging technology. They can withstand advanced charging currents and dissipate heat more efficiently, allowing for rapidly, more effective charging without compromising battery life or safety.





Disadvantage on 21700

1. Size and weight The size and weight of the 21700 battery compared to lower format cells similar as the 18650 can be a disadvantage in operations where space and weight are critical factors.



2. Limited Compatibility Although 21700 batteries are growing in popularity, they may not be compatible with all devices presently using 18650 batteries. Some devices may need specific battery sizes or configurations, limiting the direct use of 21700 cells in certain operations.

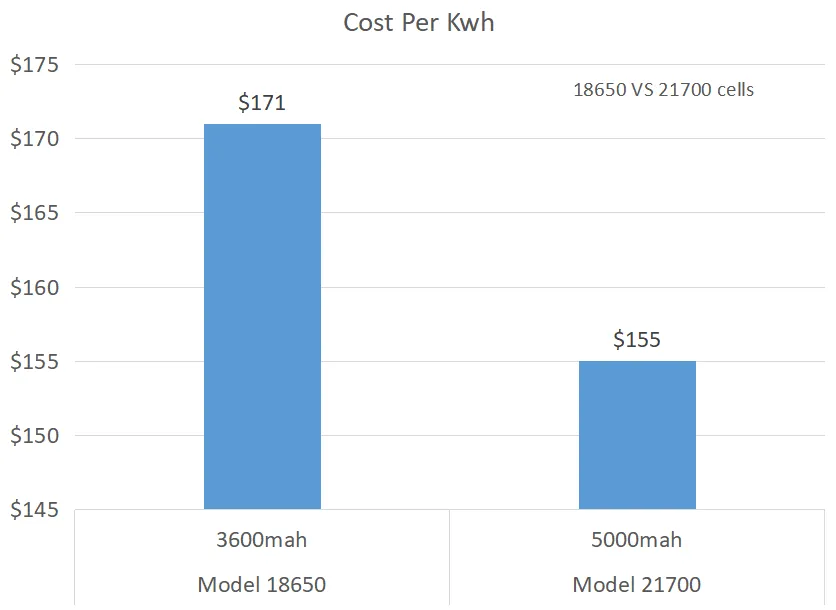

3. Cost Since 21700 batteries are larger and may be more technologically advanced, they may be more precious than 18650 batteries.





Conclusion About 18650 and 21700



A majority of people are curious roughly what makes the 21700 battery distinctive from the 18650 battery. The reply is introductory in terms of measures The 21700 battery is slightly lesser than the 18650 battery. There are button- top and flat-top models for both, in despite of the fact that the ultimate is surely more portable. The 21700 battery offers advance energy, power, and runtime due to its slightly larger measure. This battery's milliampere-hour rating is one significant factor to take into account. The capacity of an 18650 battery is limited to 2000–3500 mAh, but a 21700 battery may store up to 5000 mAh for extended periods. In conclusion, the specific needs of the operation will dictate whether to use 21700 or 18650 batteries; each form of battery has pros and cons of its own around.



The above is all the content of today's article. If you have any question, you can contact me.
