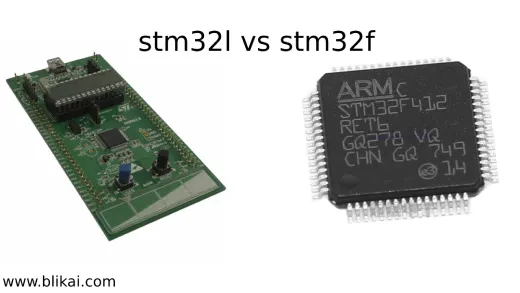

Comparing STM32L vs STM32F Series: Differences and Applications

STM32 microcontrollers from STMicroelectronics are largely protean, high-performing, and low-power bias that find expansive operation in a wide range of embedded operations. These microcontrollers, which are erected around the ARM Cortex-M core, come with a variety of peripherals and features to suit a variety of operation requirements. The STM32 family is broken up into multiple series, each intended for a particular set of operation requirements, from high-performance calculation to low-power operations.





STM32L Series

A. Overview of STM32L series

Operations demanding low power consumption without immolating performance are the focus of the STM32L family. Grounded on the ARM Cortex-M core, the microcontrollers give a variety of peripherals and functionality to accommodate colorful low-power operation needs. The STM32L series is available in a variety of product lines, each of which is acclimatized to meet particular performance and power consumption targets. This gives inventors inflexibility and scalability when creating operations.



B. Features

1. Low Power Consumption:

• Ultra-Low Power Modes: To reduce power consumption when inactive, the STM32L series supports a number of low-power modes, including arrestment, buttress, and stop.
• Dynamic Voltage Scaling: Modifies the force voltage in agreement with workload to optimize power consumption.



2. Core Architecture:

• ARM Cortex-M0+ (STM32L0 series): Applicable for low-cost, introductory energy-effective operations.
• ARM Cortex-M3 (STM32L1 series): Keeps enhanced performance and energy effectiveness in check for decreasingly sophisticated operations.
• ARM Cortex-M4 (STM32L4 and L4+ series): This processor family has DSP capabilities, excellent performance, and low power consumption.



3. Memory:

• Flash Memory: Varies across different series, typically ranging from 32 KB to 1 MB.
• RAM: Up to 320 KB in the higher-end models like the STM32L4+ series.
• EEPROM: Some models include integrated EEPROM for data retention without power.



4. Integrated Peripherals:

• Analog Peripherals: Comprises a variety of comparators, DACs, ADCs, and functional amplifiers.
• Communication Interfaces: Offers a large selection of communication peripherals, similar as USB, SPI, I2C, USART, and CAN.
• Timers and PWM: Multi-timers with sophisticated capabilities including input capture and PWM production.



5. Security Features:

• Hardware Encryption: AES, RSA, and SHA acceleration for secure data handling.
• True Random Number Generator (TRNG): Enhances security in cryptographic applications.
• Flash Protection: Includes read-out protection and proprietary code read-out protection.



6. Development Support:

• STM32CubeMX and STM32CubeL libraries: Each-inclusive development and setup tools and firmware libraries.
• Wide Range of Development Boards: Include paraphernalia for evaluation and prototyping, Nucleo and Discovery.



7. Performance:

• Up to 80 MHz CPU Clock (STM32L4 series): This allows for low power consumption and high performance.
• FPU (Floating Point Unit) and DSP Instructions (STM32L4 and L4+): Enhances computational efficiency for complex mathematical operations.





C. Applications

• Wearable Devices: wearable medical bias, smartwatches, and fitness trackers.
• Healthcare and Medical Devices: bias systems for patient monitoring, movable medical widgets.
• Internet of Things (IoT): environmental monitoring, smart husbandry, and wireless detector networks.
• Smart Meters and Energy Management: energy storehouse bias, water and gas measures, and electricity measures.
• Industrial Automation: HMI, remote control, asset shadowing, and health monitoring.
• Home Automation: lighting control, security systems, and smart thermostats.
• Consumer Electronics: toys, widgets, and remote regulators.
• Communication Devices: movable transceivers and smartphones and tablets.
• Automotive: pressure covering systems( TPMS) and crucial entry systems.
• Environmental Sensors: rainfall stations and pollution monitoring.
• Instrumentation: instruments for precise dimension and scientific data recording.



STM32F Series

A. Overview of STM32F series

Aperations demanding a high position of performance and processing power are intended for the STM32F family. Grounded on the ARM Cortex-M core, the microcontrollers give a broad range of peripherals and functionalities to satisfy the requirements of demanding operations. With multiple product lines available for the STM32F series, each optimized for distinct performance requirements, inventors may design operations with inflexibility and scalability.



B. Features

1. Core Architecture:

• ARM Cortex-M0 (STM32F0 series): Microcontrollers that are affordable and energy-effective, suitable for a variety of uses.
• ARM Cortex-M3 (STM32F1 series): All-purpose microcontrollers that strike a balance between functionality and cost.
• ARM Cortex-M4 (STM32F3 and F4 series): High-performance microcontrollers with DSP and FPU capabilities.
• ARM Cortex-M7 (STM32F7 series): Loftiest performance with advanced features for demanding operations.



2. Performance:

• Clock Speeds: Up to 216 MHz in the STM32F7 series, providing high processing power.
• FPU and DSP Instructions: Available in M4 and M7 cores for enhanced computation capabilities.



3. Memory:

• Flash Memory: Up to 2 MB in the STM32F7 series, allowing for complex applications and large firmware.
• RAM: Up to 512 KB, offering ample space for data handling and processing.
• EEPROM Emulation: Some models support EEPROM emulation in Flash for non-volatile storage.



4. Integrated Peripherals:

• Analog Peripherals: For high-perfection analog processing, a number of ADCs( F3 series up to 24 bit), DACs, comparators, and functional amplifiers are demanded.
• Communication Interfaces: Offers a variety of connection choices, including USB, Ethernet, CAN, SPI, I2C, USART, and SDIO.
• Timers: Several sophisticated and all-purpose timers that handle quadrature encoders, generate PWM, and capture input.
• Real-Time Clock (RTC): RTC integration for time management software.



5. Security Features:

• Hardware Encryption: Support for safe data encryption and decryption is handed by AES, DES, and Triple DES.
• True Random Number Generator (TRNG): Generates arbitrary figures for use in encryption and other security-related processes.
• Memory Protection: Features such a Memory Protection Unit( MPU) to guard important information and programming.



6. Development Support:

• STM32CubeMX and STM32CubeF Libraries: Extensive firmware libraries and programming tools for simple configuration and development.
• Wide Range of Development Boards: Including testing and prototyping tools such as Nucleo, Discovery, and evaluation boards.



7. Power Efficiency:

• Low Power Modes: Standby, idle, and power-saving modes to cut down on power use when not in use.
• Dynamic Voltage Scaling: Conserves power by conforming voltage in agreement with performance conditions.



8. Connectivity:

• Ethernet MAC: Available in some models for networked applications.
• USB OTG: On-The-Go support in various models for USB device and host capabilities.
• CAN and CAN FD: For automotive and industrial communication.





C. Applications

• Consumer Electronics: Multimedia players, smart bias, and home robotization.
• Industrial Automation: Robotics, PLC, industrial networks, and motor control.
• Automotive: Automobile body electronics, entertainment systems, and advanced driving backing systems(ADAS).
• Healthcare: Medical equipment, portable diagnostic tools, and methods for tracking health.
• Networking and Communication: IoT factors, connectivity modules, and network routers.
• Aerospace and Defense: Unmanned upstanding vehicles(UAVs), secure dispatches, and avionics systems.



Differences Between STM32L and STM32F Series

A. Power consumption

The power consumption of the STM32F and STM32L variants is one of the most significant distinctions. The STM32L series is finagled to minimize power consumption, as substantiated by itsultra-low power modes and effective power operation characteristics. On the other hand, the STM32F series, which has further recycling capability than the STM32L series but consumes farther power, places performance above energy effectiveness. Therefore, if the operation calls for low power consumption and long battery life, the STM32L series is the stylish option.



B. Performance

Another significant distinction between the STM32F and STM32L families is performance. The STM32F series has superior performance and spread over the STM32L series. Because of its quicker timekeeper speed, larger memory capacity, and more complicated peripherals, the STM32F series is suitable for operations taking a lot of calculation and data processing. On the other hand, the STM32L series can be more applicable if the operation benefits from low power consumption but doesn't bear high processing power.



C. Peripherals

There are new performance difference between STM32F and STM32L when it comes to external bias. Although there are numerous peripherals available in both series, the STM32F series constantly has further sophisticated and technical peripherals than the STM32L series. Multimedia interfaces, sophisticated control peripherals, and high-speed communication interfaces are a many exemplifications. Therefore, the STM32F series can be a better option if your operation calls for particular peripherals or sophisticated functionalities.



D. Memory options

Another significant distinction between the STM32F and STM32L families is memory choices. further memory is frequently available in the STM32F series than in the STM32L series. This comprises RAM for data storehouse as well as flash memory for programs. Therefore, the STM32F series can be more appropriate if an application needs a lot of programme or data memory. However, when deciding between the two series, keep in mind that larger memory options frequently translate into higher power consumption.



Conclusion

All effects considered, the STM32L and STM32F series satisfy the colorful demands of embedded system surroundings. Low power consumption, battery-powered, and energy-effective operations are a perfect fit for the STM32L series. Peripherals that are integrated and applicable for low-power andultra-low power modes are available. The STM32F series, on the other hand, is applicable for demanding operations demanding ferocious computing and quick data processing because it's erected for high performance and processing power and has a wide range of peripherals and high-speed connections.



Notice

opting the applicable STM32L or STM32F series depends on a number of pivotal factors. The quantum of power demanded is pivotal. The STM32L series ought to be used for operations that demand reduced power consumption and extended battery life. In discrepancy, the STM32F series should be taken into consideration for operations demanding a high processing power and sophisticated peripherals. It's critical to strike a concession between these specifications and the operation's particular requirements, similar as memory size and supplemental comity. By assessing these variables, it'll be possible to make sure that the microcontroller of choice satisfies the operation's conditions for both performance and power.
