2N2222 Transistor: Applications, Features, and Specifications

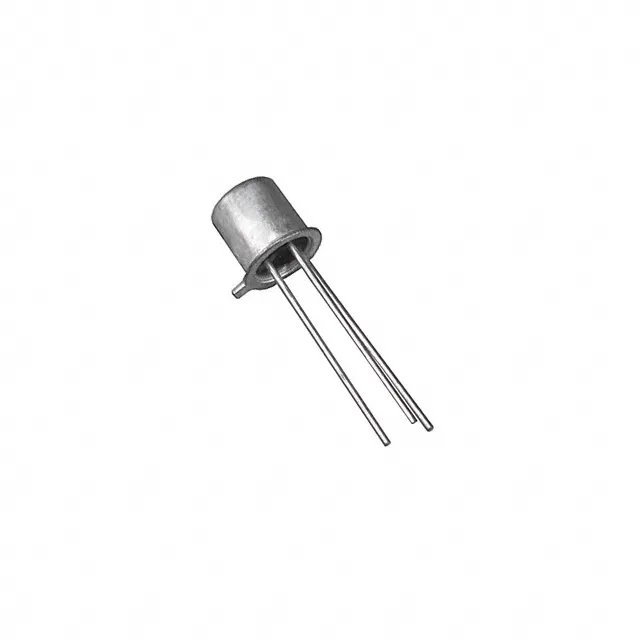

2N2222 Transistor

Product Overview

Part Number: 2N2222

Manufacturer: STMicroelectronics

Description: TRANS NPN 40V 0.8A TO-18

Lead Time: Can Ship Immediately

Datasheet: Datasheet PDF

Category: Semiconductors - Discretes - Transistors - Bipolar - (BJT) Single

Number of Lines: 3

Short Description

In electronic circuits, 2N2222 transistors are widely used as NPN bipolar junction transistors (BJTs). It is used as a building block in countless applications because it is low power, noise-free, and capable of moderate frequencies. 2N2222 transistors are used in various amplifiers, switching, and signal processing circuits owing to their 40-60 volt operation and 800 mA collector current capability. Both hobbyists and professionals prefer this device due to its robust performance and its maximum power dissipation of around 500 mW.



2N2222 transistors are widely used in electronic projects and prototypes because of their compact size, low cost, and wide availability. In addition to audio amplifiers and voltage regulators, this device has many applications in motor control systems. Engineers, students, and enthusiasts can rely on the 2N2222 transistor to provide reliable performance as a general-purpose amplifier or as a reliable switch. Despite its reliability, affordability, and adaptability, it has remained a popular component in modern electronics due to its reliability, affordability, and versatility.

2N2222 Transistor Specification

2N2222 Transistor Features

A bipolar junction transistor (BJT) such as the 2N2222 is widely used in a number of electronic applications due to its range of features, such as:



NPN Configuration: There are three semiconductor regions on the 2N2222 transistor, which follow the NPN configuration. When a small current is applied to the base, electrons flow from the emitter to the collector, allowing switching and amplification.



Voltage and Current Ratings: Low to moderate voltage applications can be accommodated by the transistor, which operates between 40 and 60 volts. This device is capable of handling collector currents of up to 800 mA, making it an ideal choice for many circuit designs.



Power Dissipation: A 2N2222 transistor dissipates 500 mW of power at its maximum. A transistor's maximum dissipated power, expressed in heat, can be determined by this specification.



Frequency Capability: 2N2222 transistors possess moderate frequency capabilities, making them suitable for applications that require signal processing and amplification. In general-purpose circuits, it performs well although it can't handle high frequencies like some specialized transistors.



Noise Performance: In audio amplifiers and radio frequency (RF) circuits, 2N2222 transistors are favored for their low noise characteristics.



Package Type: TO-92 packaging, which is compact and easy to handle, is commonly used to package the 2N2222 transistor. Circuit boards can be mounted on this package type easily, and electronic devices can be integrated with this package type easily.



Temperature Range: Transistors typically operate at temperatures between -55°C and +150°C. Different environmental conditions are covered by this wide operating temperature range, ensuring reliability and stability.



Cost and Availability: The availability and affordability of the 2N2222 transistor make it one of the most attractive transistors on the market today. It is readily available in electronic stores and on the internet from numerous semiconductor manufacturers.

2N2222 Transistor Applications

In various electronic circuits, the 2N2222 transistor finds numerous applications thanks to its versatile characteristics. The following applications are explained in detail:



Amplification: Often used in audio circuits as a general-purpose amplifier for microphones or musical instruments, the 2N2222 transistor provides gain for weak signals. In audio amplification applications requiring high signal fidelity, its low noise performance is especially advantageous.



Switching: 2N2222 transistors are used in power control systems and digital logic circuits because they can control larger currents with a small base current. With it, you can reliably and quickly switch on and off devices with high power such as motors, relays, and LEDs.



Oscillators: A positive feedback circuit using a transistor such as a 2N2222 can generate periodic signals, such as sine waves or square waves. Therefore, it can be used as a clock generator, a signal generator, or an RF oscillator.



Voltage Regulation: Voltage regulator circuits that use the 2N2222 transistor help stabilize output voltage against varying input voltages or loads. Other electronic components benefit from stable DC voltages supplied by power supply circuits.



Signal Processing: Filters, modulators, and demodulators are all applications of the 2N2222 transistor because of its moderate frequency response. In addition to tuning frequencies and modulating/demodulating signals, it is capable of transferring data as well.



Motor Control: Controlling the speed and direction of DC motors is achieved by using the 2N2222 transistor. It is commonly used in robots, automation, and industrial machinery to precisely control motor movement by switching the current to the motor on and off quickly.



LED Drivers: 2N2222 transistors are used to control the current flow through light-emitting diodes (LEDs) in lighting applications. Decorative lighting, automotive lighting, and display panels are often powered by 2N2222 transistors.



Radio Frequency (RF) Circuits: Radio transmitters and receivers can use 2N2222 transistors to amplify RF signals and modulate/demodulate them using their moderate frequency capability. In communication systems, it can be used to increase RF power and to mix or filter frequencies.

2N2222 Pin Configuration

There are three pins on the 2N2222 transistor: the emitter (E), the base (B), and the collector (C). The pinout configuration of the transistor is as follows when viewing the flat side with the pins facing downward:



Emitter (E): A ground pin is generally located here, or a common reference point. Forward bias generates electron emission into the base region.



Base (B): Current flows between the emitter and collector through the middle pin, which is called the base. The larger current flowing between the emitter and collector is controlled by a small current or voltage on this pin.



Collector (C): Transistors discharge their output current through their collector pins. Usually connected to the positive supply voltage or load in the circuit, it collects the majority of charge carriers emitted by the emitter.



Manufacturers or specific parts numbers may have different directions for the pins. If you want to ensure that the pins on a transistor are correctly identified, you should refer to their datasheet.

How to Use 2N2222A

NPN transistors such as the 2N2222A can be used as switches as well as amplifiers. In order to induce a base current in this transistor, you must supply the transistor's base and emitter with 6V across the base and emitter. Therefore, the collector and emitter connections will be closed when this transistor is forward biased. In addition, you should pay attention to the Base resistor. Using this resistor, the transistor will be protected from damage by limiting the current flowing through it. Using the formula, you can calculate the value of this resistor.

Faqs

Question 1: What are the voltage and current ratings of the 2N2222 transistor?

Answer: The 2N2222 transistor can handle collector currents up to 800 mA and operates between 40 and 60 volts. In many circuit designs, it provides ample capacity for applications with low or moderate voltages.



Question 2: What is the pin configuration of the 2N2222 transistor?

Answer: There are three pins on the 2N2222 transistor: emitter (E), base (B), and collector (C). In a transistor with the flat side facing downward, the pinout is typically an Emitter-Base-Collector.



Question 3: How to use the 2N2222 transistor in my circuit?

Answer: Using a small current to bias the 2N2222 transistor's base terminal, the transistor can be used as an amplifier. As a switch, it can also control the flow of current between the emitter and collector by applying a sufficient voltage or current to the base terminal.



Question 4: Are there any alternatives to the 2N2222 transistor?

Answer: Despite the popularity of the 2N2222 transistor, there are alternative transistors with similar features available. The 2N2222, BC547, and BC548 are alternative transistors to the 2N2222. Depending on the circuit specification, these transistors can often replace the 2N2222 because they have similar specifications and pinouts.

Wrapping Up

For a wide range of applications, the 2N2222 transistor provides versatility, reliability, and affordability. A great component for engineers, hobbyists, and students alike, it amplifies signals, controls currents, and operates at a variety of temperatures. Due to its low cost and widespread availability, it is appropriate for all kinds of projects, from simple circuits to complex systems.



In diverse industries, the 2N2222 transistor continues to contribute to innovation and technological advancement by serving as an amplifier, switch, oscillator, or voltage regulator. Electronics have been built on its enduring popularity and utility for decades.
