PN2222 Transistor: Equivalents, Applications and Features

Since PN2222 transistors are versatile and popular, they are widely used in electronic circuits. From switching to amplification, the PN2222 is known for its robustness and reliability. Professionals and hobbyists alike prefer this transistor for its excellent performance characteristics, including high current gain, low saturation voltage, and fast switching speed. PN2222s are also affordable and widely available, making them ideal for a variety of projects. A staple in electronics, the PN2222 transistor will be explored in this article, shedding light on its equivalents, applications, and features.

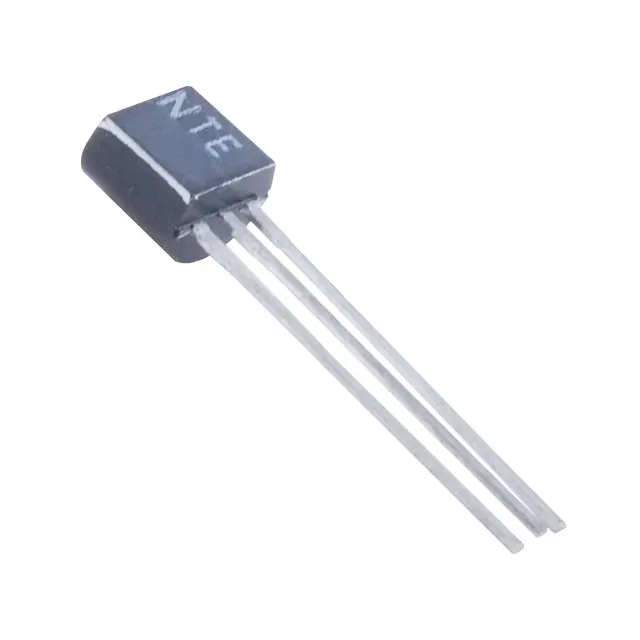

What is the PN2222 Transistor?

PN2222 transistors serve as key components in numerous electronic circuits due to their NPN bipolar junction nature. Electronic signals are amplified and electrical currents are switched by this type of transistor. An NPN transistor has two N-type layers sandwiching a layer of P-type semiconductor material. Flow of large currents from the collector to the emitter is controlled by small currents applied to the middle layer. This allows the PN2222 to be used in applications requiring current switching or signal amplification. Circuit designs can take advantage of its TO-92 package.

In addition to its high current gain (hFE), the PN2222 transistor provides efficient amplification of small signals due to its high current gain. Moreover, it features a low saturation voltage (VCE(sat)), making it highly efficient in switching applications due to its fast switching times. Low- to medium-power circuits can make use of the transistor by driving small loads such as LEDs, relays, and other components with a collector current of up to 600mA. Audio amplifiers, signal processors, and digital logic circuits are just a few of the applications that make the PN2222 popular among electronics enthusiasts and professionals.

PN2222 Transistor Specification

• Type: NPN Bipolar Junction Transistor (BJT)

• Maximum Collector-Emitter Voltage (VCEO): 30V

• Maximum Collector-Base Voltage (VCBO): 75V

• Maximum Emitter-Base Voltage (VEBO): 6V

• Maximum Collector Current (IC): 600mA

• Maximum Power Dissipation (Ptot): 625mW

• DC Current Gain (hFE): 100 to 300

• Transition Frequency (fT): 250 MHz (typical)

• Collector-Emitter Saturation Voltage (VCE(sat)): 0.3V to 1V (typical)

• Package Type: TO-92

• Junction Temperature (Tj): -55°C to +150°C

• Storage Temperature (Tstg): -55°C to +150°C

• Thermal Resistance (RθJA): 200°C/W (junction to ambient)

• Mounting Style: Through-hole

• Lead Configuration: Emitter, Base, Collector

PN2222 Transistor Equivalents

2N2222

PN2222 transistors are usually equivalent to 2N2222 transistors. Both transistors are NPN bipolar junctions and share nearly identical electrical characteristics. PN2222 is available in a plastic TO-92 package, whereas 2N2222 has a metal TO-18 package, which provides better thermal dissipation. As a result, the 2N2222 is well suited to applications that require higher power dissipation. It's possible to interchange these transistors in most circuits since their voltages and currents are similar.

2N3904

PN2222 is an equivalent NPN transistor to 2N3904, another popular NPN transistor. PN2222's collector current is 600mA, while this chip's is 200mA. Despite this, it is widely used in switching and amplification circuits, especially for low-power applications. Its low saturation voltage and high current gain make the 2N3904 ideal for electronic projects of many kinds. The TO-92 package makes substitution easy, since it is typically found with the same components.

BC547

In some applications, the BC547 can be used as an equivalent to the PN2222. Collector current is limited to 100mA and voltage is limited to 45V. In addition to switching low-current circuits and amplification of small signals, the BC547 is ideal for amplification of small signals. In European and Asian markets, TO-92 packages are commonly used. This component is equipped with a lower current handling capacity than the PN2222, but can still be used in circuits that require lower currents.

2N2369

In high-speed switching applications, the 2N2369 can replace the PN2222. Because of its higher transition frequency, it is capable of switching faster despite having a lower maximum collector current of 200mA. There are a lot of circuits that require rapid switching such as pulses and digital circuits that use the 2N2369. In applications requiring speed over current handling capacity, the TO-92 package makes it convenient to replace the PN2222.

MPS2222

There is no difference between the MPS2222 and the PN2222 electrically. Compared to NPN transistors, this transistor's maximum voltage, maximum current, and current gain are the same. As well as the PN2222, the MPS2222 is available in a TO-92 package for seamless interchangeability. In both switching and amplification circuits, this transistor is a reliable substitution for the PN2222 in North America.

Features

High Current Gain (hFE)

PN2222 transistors have a high current gain of 100 to 300, which makes them popular among transistor manufacturers. As a result of this high gain, it is ideal for amplification of signals where small input currents need to be amplified into much larger output currents. By increasing hFE, electronic circuits become more efficient, reducing the need for additional components to achieve desired amplification levels.

Low Saturation Voltage (VCE(sat))

Low collector-emitter saturation voltage is one of the many key characteristics of the PN2222. Due to low saturation voltage, transistors can switch on and off efficiently with minimal voltage drop across collector-emitter junctions. As fast switching and low power loss are critical in digital circuits, this characteristic is especially useful.

High Transition Frequency (fT)

With a transition frequency of 250 MHz, the PN2222 has a high transition rate. RF amplification and high-speed switching can be accomplished with this transistor's high-frequency capability. Because of this transistor's high transition frequency, it is suitable for use in high-frequency circuits and oscillators.

Robust Maximum Ratings

The PN2222 transistor is designed to handle a maximum collector current (IC) of 600mA, a maximum collector-emitter voltage (VCEO) of 30V, and a maximum collector-base voltage (VCBO) of 75V. Depending on the application, these transistors can handle anything from low-power signal processing to medium-power switching. For various electronic projects, the PN2222 is versatile and reliable because it can handle relatively high currents and voltages.

Thermal Stability

Temperatures up to 150°C are achieved by the PN2222 transistor, exhibiting excellent thermal stability. In environments with frequent temperature fluctuations, its high thermal tolerance makes it suitable for use in environments with various temperature conditions. Due to its TO-92 package, the transistor is able to dissipate heat adequately for most standard applications, improving its thermal stability.

Applications

Signal Amplification

The PN2222 transistor has a high current gain (hFE) that makes it a popular choice for signal amplification applications. In addition to amplifying weak signals from sensors or microphones, it can also drive other components or further process them. PN2222 can drive speakers or headphones in audio circuits, for example, by boosting the audio signals from a microphone. As it can handle moderate power levels, it can be used both as a pre-amplifier and as an output stage in audio devices.

Switching Applications

PN2222 transistors are ideal for switching applications because of their low saturation voltages and high current handling capabilities. With a small input signal, it is capable of controlling larger currents, making it an ideal component for digital circuits. LEDs, motors, and relays can be controlled by the PN2222 when used with microcontrollers. Electrical loads must be switched precisely and efficiently in automation and control systems.

Oscillators and Timers

Oscillator circuits generate periodic signals such as clocks, timers, and communication devices using the high transition frequency (fT) of the PN2222 transistor. Transistors can play an important role in oscillators such as RC (resistor-capacitor) and LC (inductor-capacitor). With the PN2222, time delays and pulse widths can be precisely controlled, essential for digital timing applications such as those utilizing 555 timer ICs.

Voltage Regulation

Additionally, PN2222 transistors are used in voltage regulation circuits where they maintain a constant output voltage despite input voltage variations. An operational amplifier and zener diodes help to provide a stable voltage output when the PN2222 acts as a pass transistor in a voltage regulator circuit. A reliable power supply for electronic devices relies on this application to ensure consistent voltage levels.

Relay Drivers

In order to operate relay coils, higher currents are needed than can be supplied directly by typical digital circuits. As a relay driver, the PN2222 transistor interfaces the low-power control signals with the high current needed to activate the relay. The PN2222 base receives small control signals that change the large current required by the relay coil, which opens or closes the relay. Industrial control systems and home automation applications require this function to isolate the control circuit from the high-power load.

Pulse Width Modulation (PWM) Control

In PWM control circuits, which are used to control motor speed, LED brightness, and power to other loads, the PN2222 transistor is often used. Transistors modulate pulse widths by switching on and off at high frequencies, controlling average power delivered to a load by modulating the PWM signal's pulse width. Controlling electrical devices with precision is key to energy efficiency and power management.

Final Verdict

Electronic components like the PN2222 transistor stand out for their versatility and reliability. The device is popular for a variety of applications, from signal amplification to switching and voltage regulation, due to its impressive characteristics, including high current gain and low saturation voltage. Due to its high transition frequency, advanced electronic designs can benefit from its use in high-speed and RF applications.

As a result, circuit design and maintenance are flexible and continuous, thanks to equivalent transistors like the 2N2222, S8050, and 2SC1815. It is an indispensable part of your toolbox no matter what your interests are, whether you are a hobbyist, student, or professional engineer.
