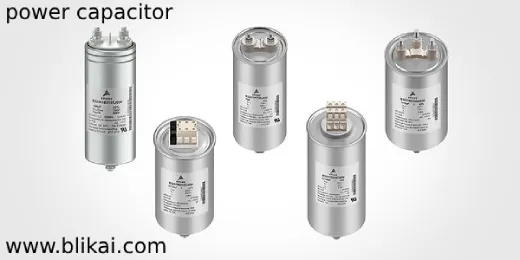

What is a Power Capacitor?

An electronic device that stores electrical energy as an electric field is an power capacitor. It's made up of two electrically conductive plates that are divided by a dielectric substance. Charges make up on the plate to store energy when it's linked to a power source.





Components and Operation

-Dielectric Material: The separating substance that holds the electric field between the plates of the capacitor.

-Capacitor Plates: An electrical charge is stored on a conducting plate.

-Enclosure: Ensures safe functioning and safeguards interior components.

-Switching Mechanism: For switched and automatic capacitor banks, a mechanism to connect or disconnect capacitors as needed.



Principles of Capacitors

Capacitors operate based on fundamental principles of electrostatics and energy storage. Here are the key principles of capacitors:



1. Charge Storage: Electric charge can be stored between conducting plates in a capacitor. When the capacitor is voltage-applied, electrons make up on one plate, producing negative ions, and the contrary plate gests an equal figure-up of positive charge. An electric field is produced between the plates as a result of the charges separating.



2. Capacitance: The capacitance(C) of a capacitor expresses its capacity to store charge per unit voltage. Its description is the following the rate of the applied voltage(V) to the size of the stored charge(Q):

   C = Q/V

   The unit of dimension for electrical capacitance is farads(F), where one farad is original to one coulomb per volt.



3. Dielectric Material: Its functioning depends on the substance that serves as a dielectric between the capacitor plates. Electric fields are suitable to flow through the separating plate while direct electrical contact is averted. Capacitance is impacted by the dielectric selection. Voltage ratio and additional features capacitor.



4. Energy Storage: An electric field is the form that capacitors use to store energy. One can compute the energy stored in a capacitor (E) by applying the following formula:

   E = 1/2CV²

   Where:

   -C is the capacitance in farads.

   -V is the voltage across the capacitor in volts.



5. Charging and Discharging: When a capacitor is subordinated to voltage. When electrons are gathered on one plate and exhausted on another, it will become charged. There will be a capacitor discharge. and allow the circuit to release the stored energy. The circuit's resistance and capacitance determine how snappily an object charges and discharges.



6. Time Constants: The time constant(τ) of a capacitor controls how snappily it charges or discharges. The product of the capacitor's capacitance(C) and the circuit's resistance(R) is the time constant:

   τ = RC

   A larger time constant indicates a slower rate of charging or discharging.



Types of Power Capacitors

• Film capacitors
• power capacitors
• Ceramic capacitors
• Power Factor Correction (PFC) Capacitors
• Supercapacitors (Ultracapacitors)
• Variable capacitors



1. Film Capacitors: A thin plastic sheet serves as a dielectric between metal electrodes in these capacitors. It loses little and has a large capacity. Because of this, it can be used in operations where great performance and responsibility are necessary. Numerous accessories are included with film capacitors. They act polyester(mylar), polypropylene, and metallized flicks.



2. power capacitors: In an power capacitor, the attendant electrolyte serves as a dielectric. Generally, they give a large capacity in a small package. In power force circuits, aluminum power capacitors are constantly employed for filtering and large-scale energy storehouse. The power capacitors of Tantalum Despite their lower size, they retain a lesser electric charge viscosity, making them applicable for uses where confines are pivotal.



3. Ceramic Capacitors: Ceramic accoutrements are used as the dielectric in ceramic capacitors. multitudinous kinds live, including ceramic fragment capacitors and multilayer ceramic capacitors(MLCC), which are well-liked for their affordable price and large capacity. They are hence perfect for uses in electronic circuits involving bypass, filtering, and isolation.



4. Power Factor Correction (PFC) Capacitors: PFC capacitors are specifically designed to lower reactive power and raise the power system's power factor. To cut down on energy loss, they're constantly employed in marketable and artificial settings. Enhance performance while adhering to utility rules.



5. Supercapacitors (Ultracapacitors): Supercapacitors are far larger and further able of storing energy than regular capacitors. They're constantly employed in systems like the regenerative retardation systems of electric buses , which call for quick energy storehouse and release. Peak power reduction in renewable energy systems and backup power sources.



6. Variable Capacitors: Capacitance can be adjusted manually or automatically with variable capacitors. used to adjust the frequency control and impedance matching in the circuit



Applications of Power Capacitors

1. Power Factor Correction (PFC): Power factor adaptation in mileage, marketable, and artificial power systems is generally achieved through the use of power capacitors. The effective use of electrical energy is enhanced by capacitors. Enhance system effectiveness and lower electricity costs by raising power factor and lowering reactive power.



2. Voltage Regulation: Systems for regulating voltage use capacitors to keep the electrical grid's voltage position steady. It contributes to minimizing voltage swings and preserving a steady voltage supply. It contributes to the dependable operation of industrial and delicate equipment.



3. Energy Storage and Peak Shaving: In many different sectors, capacitors are utilized for peak reduction and energy storage. When the demand for energy is low, they store excess energy and release it fast when the need is high. It assists in lowering peak electrical power demand as well as cargo variations.



4. Motor Starting and Run Capacitors: In single-phase and three-phase motor circuits, capacitors are constantly employed to increase motor effectiveness and force starting necklace. The starting power demanded to turn on the motor is increased by the starting capacitor. The motor's operating efficiency is preserved in part by the starting capacitor.



5. Filtering and Harmonic Suppression: In filter circuits, capacitors are employed to exclude ripples, harmonics, and undesirable noise from electrical signals. By adjusting the waveforms of voltage and current, it enhances power quality. lower electromagnetic interference and increase the dependability of the system.



6. Uninterruptible Power Supplies (UPS): A UPS system's capacitors are a pivotal element. They store energy to give temporary backup power in the event of a main power outage. It aids in preventing electrical interference and ensuring the ongoing operation of vital equipment.



7. Power Electronics: Applications for power electronics, including inverters, require capacitors. In addition to storing energy and supporting reactive power, converters, rectifiers, and frequency converters aid to smooth the waveforms of voltage and current. increases power electronics systems' productivity and efficiency.



8. Renewable Energy Systems: In renewable energy systems like solar and wind power plants, capacitors are essential. In order to preserve grid stability and include sporadic renewable energy sources, they aid in voltage regulation, lessen energy fluctuations, and provide energy storage.



Advantages of Power Capacitors:

• Power Factor Improvement
• Energy Efficiency
• Voltage Stability
• Load Balancing
• Reduced Heating and Overloading
• Compliance with Regulations
• Improved Power Quality
• Enhanced System Capacity



Installation and Maintenance of Power Capacitors

Electrical systems require power capacitors as essential components. Voltage regulation and power factor correction are their primary uses. Here's a guide on their installation and maintenance:



Installation:



1. Site Selection: Pick a place that is dry and well-ventilated. Keep away from sources of vibration and heat. Verify that it can be accessed for upkeep.



2. Mounting: Capacitors need to be firmly fixed with the right mounting brackets or hardware on a non-conductive surface. Make sure the mounting allows for adequate airflow.



3. Wiring: Observe the guidelines provided by the manufacturer while attaching wires. To avoid overheating, use wire with the proper gauge and ensure that all connections are tight.



4. Safety: Before installing, the circuit should always be disconnected. It's critical to cleave to safety procedures and use the proper particular defensive outfit(PPE).



5. Grounding: Original electrical canons bear the grounding of capacitor enclosures. To reduce the possibility of electric shock.



6. Labeling: Capacitors should have their nominal value clearly labeled. Safety alerts and a connection diagram.



7. Testing: Before turning on the system, verify the insulating resistance and inspect the connections.



Maintenance:



-Regular Inspection: To make sure everything is working properly and to spot wear or damage.

-Proper Rating: Verify that the capacitor is rated appropriately for the load and system voltage.

-Protection Devices: Fuse or circuit breakers should be used to guard against overcurrent situations.



By referring to these installation and upkeep instructions. Your electrical system's power capacitors will function dependably and last a long time, you can be sure of that.



Selection Criteria

-Capacitance and Voltage Ratings: Must fulfill the demands of the particular application.

-Environmental Conditions: Taking into account the exposure to corrosive elements, humidity, and temperature.

-Quality and Reliability: Choosing capacitors from reliable producers will guarantee long-term functionality.



FAQ

1. Why are power capacitors used?

Electrical systems with power factor issues can be fixed with power capacitors. It lessens reactive energy. enhanced efficiency of the electrical grid and better control of voltage.



2. Where are power capacitors typically installed?

Electrical systems with sizable inductive loads in the commercial, industrial, and occasionally domestic domains are typically equipped with power capacitors. Large buildings, factories, and even some electrical gadgets contain them.



3. Are there any safety considerations when using power capacitors?

Yes, proper installation is a factor in safety considerations. Make sure capacitors are rated for the necessary voltage and current levels, and adhere to the maintenance and operation instructions provided by the manufacturer.



4. Can power capacitors fail?

Indeed, a number of reasons, including overvoltage, overcurrent, overtemperature, and deterioration, can cause capacitors to fail. To ensure peak performance and assist prevent failure, routine maintenance and inspections are recommended.
