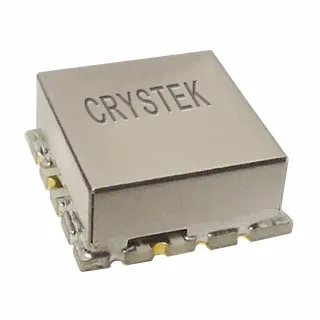

Name: CVCO55CC-2380-2580 VCO 2480MHZ 0.5-15V 12.7X12.7MM
Brand: Crystek Corporation
SKU: CVCO55CC-2380-2580
Price: 26.384 USD
Availability: InStock
Rating: 4.9 (2 reviews)

Question 1

What is the Mfr

Accepted Answer

Mfr refers to the component's producing company, whose brand and manufacturing processes directly impact the component's performance, consistency, and traceability, making it a key reference during selection.

Question 2

What is the Series

Accepted Answer

Series indicates a manufacturer’s organized range of components, often named with a common prefix or code, to streamline product selection and ensure compatibility across similar models.

Question 3

What is the Package

Accepted Answer

his term denotes the protective casing (often made of plastic, ceramic, or metal) that encapsulates an integrated circuit, determining its size, reliability, and suitability for different mounting technologies like through-hole or SMT.

Question 4

What is the Package / Case

Accepted Answer

Package / Case refers to the protective housing that encases an electronic component, providing mechanical support, electrical connections, and thermal management.

Question 5

What is the Product Status

Accepted Answer

Product Status indicates the commercial availability and production stage of the component, such as Active, Not for New Design (NRND), Obsolete, or Last Time Buy (LTB).

Question 6

What is the Tuning Voltage (VDC)

Accepted Answer

It specifies the DC control voltage applied to a varactor diode or voltage-controlled component (e.g., VCO, VCF) to adjust its capacitance or frequency. This voltage directly modulates the component's electrical parameter, enabling precise electronic tuni

Question 7

What is the Operating Temperature

Accepted Answer

The operating temperature is the range of ambient temperature within which a power supply, or any other electrical equipment, operate in. This ranges from a minimum operating temperature, to a peak or maximum operating temperature, outside which, the powe

Question 8

What is the Voltage - Supply

Accepted Answer

The nominal DC potential difference applied to the power input pin(s) of an integrated circuit or module, measured in volts (V). It defines the required energy level for proper operation and establishes the reference for internal logic levels and analog s

Question 9

What is the Height

Accepted Answer

Height refers to the vertical dimension of a component, measured perpendicularly from its mounting or reference plane to its highest point. This critical mechanical parameter determines the component's spatial footprint and influences clearance, stacking

Question 10

What is the Frequency Range

Accepted Answer

The span of electromagnetic frequencies over which a component, device, or system is designed to operate effectively, typically specified by its lower and upper limits in Hertz (Hz). This parameter defines the usable bandwidth for signal transmission, rec

Question 11

What is the Size / Dimension

Accepted Answer

This parameter specifies the physical measurements of a component, typically expressed as length, width, height, and/or diameter in millimeters or inches. It defines the component's spatial footprint, which is critical for mechanical integration, PCB layo

Question 12

What is the 2nd Harmonic, Typ (dBc)

Accepted Answer

This parameter specifies the typical power level of the second harmonic frequency component generated by a non-linear device (e.g., amplifier, mixer, oscillator), relative to the power of the fundamental output signal. It is expressed in decibels relative

Question 13

What is the Frequency - Center

Accepted Answer

The nominal or designed operating frequency of a filter, oscillator, or tuned circuit, measured in Hertz (Hz). It defines the primary spectral location of a passband's maximum response or a resonant peak, serving as the key reference point for system freq

Question 14

What is the Icc Max

Accepted Answer

This parameter specifies the maximum continuous current that an integrated circuit draws from its power supply pin (Vcc/Vdd) under specified operating conditions, measured in Amperes (A) or milliamperes (mA). It is a critical Absolute Maximum Rating that

Question 15

What is the Pushing (MHz/V)

Accepted Answer

Pushing quantifies the sensitivity of an oscillator's output frequency to variations in its supply voltage, expressed in megahertz per volt (MHz/V). It is a key figure of merit for voltage-controlled oscillators (VCOs) and clock sources, where a lower val

Question 16

What is the Phase Noise Typ (dBc/Hz)

Accepted Answer

Phase Noise Typ (dBc/Hz) quantifies the short-term, random fluctuations in the phase of an oscillator's output signal, measured as the power spectral density of these phase deviations relative to the carrier power at a specified offset frequency. A lower

Question 17

What is the Power (dBm)

Accepted Answer

Power (dBm) is a logarithmic unit for expressing absolute power levels relative to one milliwatt (1 mW). It is calculated as 10*log₁₀(P/1mW), where a value of 0 dBm equals 1 mW. This unit is fundamental in RF and microwave engineering for specifying signa

Crystek Corporation CVCO55CC-2380-2580
