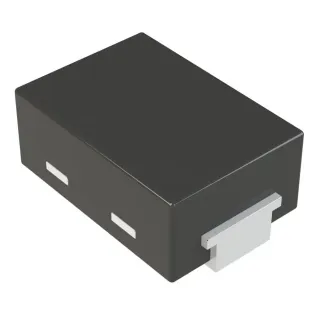

Name: SZNZ8F13VSMX2WT5G 13V ZENER TIGHT TOLERANCE IN X2D
Brand: onsemi
SKU: SZNZ8F13VSMX2WT5G
Price: 0.08025 USD
Availability: InStock
Rating: 4.9 (2 reviews)

Question 1

What is the Mfr

Accepted Answer

Mfr refers to the component's producing company, whose brand and manufacturing processes directly impact the component's performance, consistency, and traceability, making it a key reference during selection.

Question 2

What is the Series

Accepted Answer

Series indicates a manufacturer’s organized range of components, often named with a common prefix or code, to streamline product selection and ensure compatibility across similar models.

Question 3

What is the Package

Accepted Answer

his term denotes the protective casing (often made of plastic, ceramic, or metal) that encapsulates an integrated circuit, determining its size, reliability, and suitability for different mounting technologies like through-hole or SMT.

Question 4

What is the Supplier Device Package

Accepted Answer

Supplier Device Package refers to the specific nomenclature or code used by a component manufacturer or distributor (supplier) to designate the physical outline and pin arrangement of an electronic component they produce or sell.

Question 5

What is the Package / Case

Accepted Answer

Package / Case refers to the protective housing that encases an electronic component, providing mechanical support, electrical connections, and thermal management.

Question 6

What is the Product Status

Accepted Answer

Product Status indicates the commercial availability and production stage of the component, such as Active, Not for New Design (NRND), Obsolete, or Last Time Buy (LTB).

Question 7

What is the Power - Max

Accepted Answer

The maximum amount of electrical energy a component can continuously convert, handle, or dissipate without risk of permanent damage or exceeding its safe operating temperature. This absolute upper limit, measured in Watts (W), is a critical thermal and el

Question 8

What is the Voltage - Forward (Vf) (Max) @ If

Accepted Answer

This parameter specifies the maximum forward voltage drop across the anode and cathode of a semiconductor diode when it is conducting a specified forward current (If). It defines the upper limit of the on-state power loss for the device under that operati

Question 9

What is the Current - Reverse Leakage @ Vr

Accepted Answer

This parameter specifies the maximum leakage current that flows through a semiconductor junction (e.g., a diode, transistor, or MOSFET body diode) when a specified reverse voltage (Vr) is applied while the device is in its non-conducting, blocking state.

Question 10

What is the Operating Temperature

Accepted Answer

The operating temperature is the range of ambient temperature within which a power supply, or any other electrical equipment, operate in. This ranges from a minimum operating temperature, to a peak or maximum operating temperature, outside which, the powe

Question 11

What is the Tolerance

Accepted Answer

Tolerance specifies the permissible deviation from a component's nominal value, expressed as a percentage or absolute unit. It defines the manufacturing precision and directly impacts circuit performance, stability, and yield. Tight tolerances are critica

Question 12

What is the Mounting Type

Accepted Answer

Mounting Type refers to the standardized classification of the method by which an electronic component or module is physically secured and electrically connected to a printed circuit board, chassis, or panel. It defines how the component integrates into t

Question 13

What is the Voltage - Zener (Nom) (Vz)

Accepted Answer

This parameter specifies the nominal reverse breakdown voltage at which a Zener diode begins to conduct significantly, measured in volts (V). It is the primary design target for the component's voltage regulation or reference function. The actual voltage

Question 14

What is the Impedance (Max) (Zzt)

Accepted Answer

This parameter specifies the maximum total impedance presented by a circuit or component, encompassing both resistive and reactive elements, under specified operating conditions. It defines the upper limit of opposition to current flow, typically measured
