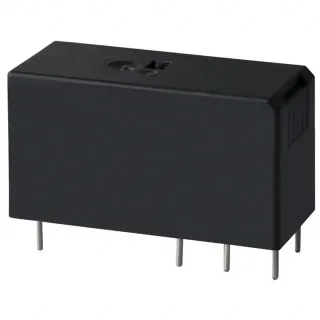

Name: RT424730 RELAY GEN PURPOSE DPDT 8A 230V
Brand: TE Connectivity Potter & Brumfield Relays
SKU: RT424730
Price: 7.352 USD
Availability: InStock
Rating: 4.9 (2 reviews)

Question 1

What is the Mfr

Accepted Answer

Mfr refers to the component's producing company, whose brand and manufacturing processes directly impact the component's performance, consistency, and traceability, making it a key reference during selection.

Question 2

What is the Series

Accepted Answer

Series indicates a manufacturer’s organized range of components, often named with a common prefix or code, to streamline product selection and ensure compatibility across similar models.

Question 3

What is the Package

Accepted Answer

his term denotes the protective casing (often made of plastic, ceramic, or metal) that encapsulates an integrated circuit, determining its size, reliability, and suitability for different mounting technologies like through-hole or SMT.

Question 4

What is the Base Product Number

Accepted Answer

By using the Base Product Number, manufacturers and customers can efficiently communicate about component families without detailing every specification, streamlining the procurement process.

Question 5

What is the Contact Material

Accepted Answer

Contact Material refers to the specific metal or alloy used at the interface where two conductors meet to establish an electrical path in connectors, switches, or relays. Its core properties include conductivity (affecting contact resistance), hardness (a

Question 6

What is the Contact Form

Accepted Answer

Contact Form refers to the mechanical configuration and circuit state relationship of contacts inside a relay or switch, such as Normally Open, Normally Closed, etc.

Question 7

What is the Contact Rating (Current)

Accepted Answer

Contact Rating (Current) is the maximum current a contact can safely make, carry, and break, measured in Amperes (A).

Question 8

What is the Switching Voltage

Accepted Answer

Switching Voltage is the circuit voltage across which the contacts can reliably switch without arcing or damage.

Question 9

What is the Must Release Voltage

Accepted Answer

Must Release Voltage (or Drop-Out Voltage) is the maximum coil voltage below which a relay is guaranteed to de-energize and its contacts will return to their un-operated state. It ensures the relay turns off reliably when power is reduced or removed.

Question 10

What is the Must Operate Voltage

Accepted Answer

Must Operate Voltage (or Pull-In Voltage) is the minimum coil voltage at which a relay is guaranteed to energize and its contacts will switch to their operated state. It ensures the relay turns on reliably even when the supply voltage is at the lower end

Question 11

What is the Product Status

Accepted Answer

Product Status indicates the commercial availability and production stage of the component, such as Active, Not for New Design (NRND), Obsolete, or Last Time Buy (LTB).

Question 12

What is the Coil Resistance

Accepted Answer

This parameter specifies the DC resistance of the wire winding within an inductive component, measured in Ohms (Ω). It represents the primary source of power loss (I²R) and directly impacts the component's current-handling capability, thermal performance,

Question 13

What is the Coil Insulation

Accepted Answer

A dielectric layer applied to the windings of an inductor or transformer to provide electrical isolation between turns and layers. Its primary function is to prevent short circuits and dielectric breakdown under high voltage stress, ensuring reliable oper

Question 14

What is the Operating Temperature

Accepted Answer

The operating temperature is the range of ambient temperature within which a power supply, or any other electrical equipment, operate in. This ranges from a minimum operating temperature, to a peak or maximum operating temperature, outside which, the powe

Question 15

What is the Termination Style

Accepted Answer

This parameter specifies the physical form and connection method of a component's leads or contacts, such as through-hole, surface-mount, screw terminal, or quick-connect. It defines the required assembly process (e.g., soldering, clamping) and is critica

Question 16

What is the Features

Accepted Answer

These are the additional, non-core capabilities or characteristics integrated into a component beyond its primary function. They enhance performance, reliability, or ease of use, such as built-in protection (thermal shutdown, overcurrent), enable/disable

Question 17

What is the Relay Type

Accepted Answer

This classification categorizes electromechanical or solid-state switching devices based on their core operating principle, contact configuration, and application. Key types include electromechanical (using a coil and armature), reed (sealed magnetic cont

Question 18

What is the Coil Type

Accepted Answer

This parameter classifies the physical construction of the inductor's wire winding, such as air core, toroidal, solenoid, or planar. The construction directly determines key characteristics like magnetic field path, self-resonant frequency, EMI generation

Question 19

What is the Mounting Type

Accepted Answer

Mounting Type refers to the standardized classification of the method by which an electronic component or module is physically secured and electrically connected to a printed circuit board, chassis, or panel. It defines how the component integrates into t

Question 20

What is the Coil Voltage

Accepted Answer

The nominal DC or AC voltage required to energize the electromagnetic coil of a relay, solenoid, or contactor, establishing the magnetic field necessary for its operation. This specification, measured in volts (V), is critical for selecting a compatible d

Question 21

What is the Seal Rating

Accepted Answer

A standardized code (e.g., IP, NEMA, or MIL-STD) that quantifies the degree of protection an enclosure provides against the ingress of solids (like dust) and liquids (like water). It defines the environmental conditions under which the component can opera

TE Connectivity Potter & Brumfield Relays RT424730
