LM386 Audio Amplifier Circuit: Features, Applications and Datasheet

It is renowned for its simplicity and effectiveness in amplifying audio signals that the LM386 audio amplifier circuit is widely used and versatile. As one of the most compact audio amplifiers available, the LM386 allows you to apply various audio applications without requiring a large number of external components. The purpose of this introduction is to provide an overview of the capabilities and practical uses of the LM386, its features, applications, and available datasheets.

What is LM386?

An audio amplifier integrated circuit (IC) such as the LM386 amplifies small audio signals to a level suitable for driving speakers or headphones. It is a simple, low-cost, and versatile device produced by Texas Instruments, making it a popular choice among hobbyists, students, and professionals. The LM386 can be used in many electronic projects, from portable music players to intercoms, due to its straightforward design and minimal external components.

This battery-powered device features a low quiescent current and a wide supply voltage range, making it a great choice for battery powered applications. A staple component in audio circuits, it offers significant amplification while taking up a small footprint. It provides a reliable and cost-effective solution for amplifying audio signals, regardless of whether it is used as a standalone amplifier or integrated into a larger audio system.

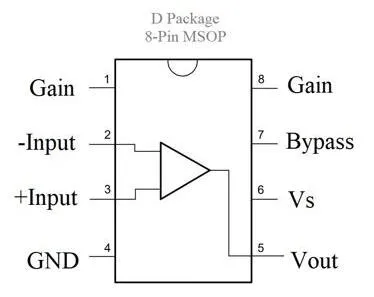

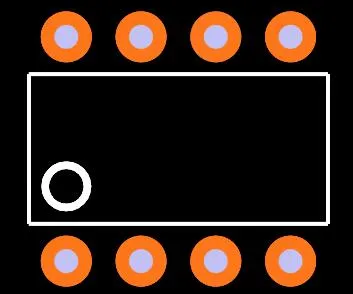

LM386 Pinout and Cad Models

Features

Voltage Gain Control

A voltage gain of up to 200 is available with the LM386. Amplification levels can be precisely controlled according to user needs due to this flexibility. In order to adjust the gain to suit different input signal strengths, the resistor connected between pin 1 (Gain) and pin 8 (Vs) can be adjusted. LM386 amplifies a wide range of audio sources with excellent clarity and accuracy, including microphones and line-level signals.

Low Quiescent Current

Its low quiescent current ensures efficient power consumption during standby periods, which is one of the most outstanding features of the LM386, since energy conservation is important for extending the life of batteries in battery-powered applications. A battery-powered device like a portable radio, music player, or communication system can be developed with minimal power requirements using the LM386.

Wide Supply Voltage Range

There is a wide range of voltages that can be used with the LM386, usually ranging from 4V to 12V. Its wide operating range allows it to be powered by a variety of power sources, such as batteries, regulated power supplies, and DC power adapters. This flexible, multi-voltage solution simplifies circuit design and integration, allowing it to be used in a range of different electronic projects and applications.

Minimal External Components

The LM386 also requires a minimum amount of external components for operation. This IC's design simplifies circuit design and reduces overall system complexity by minimizing the need for additional components. It allows audio amplification applications to be compact and cost-effective due to the low number of external components required. In addition to its simplicity, it can easily be incorporated into a wide range of electronic devices and projects, making it an attractive choice for hobbyists, students, and professionals alike.

Built-in Thermal Shutdown Protection

This IC is equipped with built-in thermal shutdown protection, preventing overheating under adverse conditions or during prolonged operation. In high-temperature or heavy-load applications, this feature protects the amplifier from damage and ensures long-term reliability.

Low Distortion and Noise

LM386 provides high-quality audio output with minimal interference due to its low distortion and noise design. Music players, mixers, and stereo systems use this feature to reproduce music accurately and clearly.

High Output Power

This compact, low-power LM386 can drive speakers or headphones effectively despite its compact size and low power consumption. ICs with this feature deliver robust audio performance, making them suitable for portable radios, public address systems, and other applications that require loud and clear sound reproduction.

Applications

Portable Radios

Due to its low power consumption, compact size, and high audio amplification efficiency, the LM386 has been widely used in portable radios. In order to make portable radios work reliably on battery power, the amplifier should be capable of supplying enough power without draining the batteries too quickly. These requirements are perfectly met by the LM386, a clear audio amplifier that can amplify FM, AM, as well as other radio signals. In compact radio designs, users can enjoy clear and loud sound thanks to its ability to drive small speakers effectively.

Intercom Systems

The LM386 is a crucial component of intercom systems because it amplifies voice signals, ensuring clear and intelligible communication. To drive small speakers or earpieces, these systems often require efficient amplification. Low quiescent current and wide voltage range make it a great choice for residential, commercial, and industrial intercoms. In addition to enhancing the overall functionality of intercom systems, it delivers consistent and reliable audio performance.

Hearing Aids

Small size and low power consumption make the LM386 an ideal component for some older hearing aids. LM386 provides the lowest level of distortion and noise when amplification of sound signals is required. As a result of its stable voltage output, users with hearing impairments can benefit from clear, accurate amplification of sound. A long battery life makes the LM386 an ideal choice for hearing aids that are required to function continuously.

DIY Audio Projects

LM386s are frequently used by DIY audio enthusiasts and hobbyists. With minimal external components required, it is an excellent choice for building small speaker systems, guitar amplifiers, and custom audio amplifiers. The adjustable gain feature makes it a versatile component for educational and personal use, allowing users to experiment with different levels of amplification. The maker community likes it because it's easy to use and reliable.

Musical Instruments

Music instruments and electric guitar amplifiers often incorporate the LM386. As a result of its high output power and low distortion, the LM386 meets the needs of musicians who need clean and robust sound. A practice amplifier, effects pedal, and other audio gear used by musicians often use this audio component because it amplifies musical instruments' signals with clarity and precision.

Telecommunication Devices

With its audio amplification abilities, the LM386 is suitable for telecommunication devices like telephones and modems. Ensure accurate and intelligible voice and data transmissions with these devices by amplification of the signal. In telecommunications applications where reliability and clarity are paramount, the LM386 is able to operate efficiently with low power consumption. These devices benefit from its integration in maintaining the quality of audio and data communication.

Public Address Systems

To ensure announcements are heard clearly across large areas, the LM386 is used in public address systems (PA). To drive large speakers with minimal distortion, PA systems need amplifiers that are capable of delivering high output power. As an excellent PA system for schools, offices, and public venues, the LM386 delivers robust performance with minimal noise. Announcements are effectively communicated due to its reliability and efficiency.

Toys and Small Gadgets

A variety of toys and small electronics that produce audio are also equipped with the LM386. A battery-operated device like this is ideal for toys with sound effects or music that require little power and are compact in size. A loud and clear audio output is guaranteed by the LM386's ability to drive small speakers efficiently. Audio amplification can be achieved through this application in educational gadgets and novelty items without consuming a lot of power or space.

Wireless Audio Systems

A wireless audio system, such as a Bluetooth speaker or wireless headphones, relies heavily on the LM386 for amplifier purposes. High-quality sound cannot be delivered by these systems without efficient amplifiers. Performance and power consumption make the LM386 a great choice for portable wireless audio devices, while excellent audio quality and power output also make it a great choice.

Final Thoughts

Its versatility, simplicity, and efficiency make the LM386 audio amplifier circuit unique. This device is ideal for many audio applications, including mobile devices and DIY projects, due to its adjustable gain, low power consumption, and wide voltage range. Both hobbyists and professionals alike continue to depend on the LM386 for its reliability and ease of use. The datasheet can be accessed to ensure that users can take advantage of the DAC's features, applications, and ensure optimum performance on a variety of devices when using it in audio amplification. Learn more on Blikai.com.
