Electronic Speed Control (ESC)：Description & Its Working

At present, we can observe the electric motors' pace regulation all over modern society. So, the list of pace regulation mainly includes an extensive range of machines which ranges from basic electrical appliances used in a household like in the garage, garden to large industrial plants through pumps, machine tools, conveyor belts, etc. So we can notice that how important and necessary this pace regulation technique is for several electrical machines. We cannot perform longer without an efficient method to regulate pace. So, the electronic pace regulation method is used to regulate the machinery as well as motors rotational pace. This article discusses an overview of electronic pace regulation for motors, drones, vehicles, etc.



What is Electronic Pace Regulation or ESC?



The term ESC stands for "electronic pace regulation is an electronic circuit used to change the pace of an electric motor, its route, and also to perform as a dynamic brake. These are frequently used on radio-controlled models which are electrically powered, with the change most frequently used for brushless motors providing an electronically produced 3-phase electric power low voltage source of energy for the motor. An ESC can be a separate unit that lumps into the throttle receiver control channel or united into the receiver itself, as is the situation in most toy-grade R/C vehicles. Some R/C producers that connect exclusive hobbyist electronics in their entry-level vehicles, containers, or aircraft use involved electronics that combine the two on a sole circuit board.





ESC Design

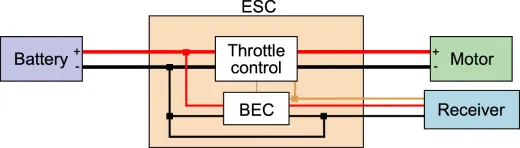

An electronic pace controller can be designed with three essential components like a voltage regulator/ BEC (Battery Eliminator Circuit)), a Processer & the switching includes FETs. The BEC is a separation of the electronic pace control that will transmit power back to your receiver after that to servos.



This also includes one secondary function like when the motor is operated through a battery then the motor gets its smallest voltage, then the BEC will keep some power for the flight control in risky situations so the motor doesn't consume all the power from the battery. At present, the processor is completely enclosed within a single Si semiconductor chip.



The main function of this processor is to decode the data being provided to it from the receiver within the model as well as to regulate the power toward the motor using FETs. In an ESC, this transistor plays a vital role by carrying out all the works. It observes the complete current & voltage of the motor as well as a battery. This transistor works like a switch to control the current flow to throttle the electric motor.



The Function of Electronic Pace Regulation



An ESC or electronic pace control mainly follows a pace reference signal to change the pace of a switching network of field-effect transistors. The motor pace can be changed by changing the switching frequency or the duty cycle of the transistors.



For BLDC motors, different kinds of pace controls are necessary because this motor pace can be controlled by changing the voltage on its armature. This kind of motor needs a diverse operating rule like the motor pace can be changed by varying the timing of pulses for current transmitted to the different motor windings.



Generally, the Brushless ESC systems make 3-phase AC power such as a variable frequency drive (VFD) to make the brushless motors work. These kinds of motors are more popular due to their power, efficiency, lightweight, longevity as compared to usual brushed motors. BLDC motor controllers are very complex as compared to brushed ones.



The exact phase changes through the rotation of the motor, which can be taken into account using the electronic pace control. Generally, the rotation of this motor can be detected through back EMF, but variations that exist will utilize optical detectors otherwise separate Hall Effect sensors.



In general, the pace controllers based on programming mainly include some options which are specified by the user that permits braking, acceleration, timing & direction of revolution. The reversed motor's direction can be accomplished by switching any 3 leads of the ESC toward the motor.



Features of an Electronic Pace Control



As we know, an ESC controls the pace of the motor spin of an airplane. It helps a similar purpose as the throttle servo of a glow-powered airplane. It is an edge between the radio receiver of an airplane and the power plant. Electronic pace control will have 3- sets of wires. One wire will plug into the main battery of an airplane. The second wire will have a typical servo wire that plugs into the receiver's throttle channel. And lastly, a third of the wire is used for powering the motor. The main features of an electronic pace control include a battery eliminator circuit, low voltage cutoff, brake, and to.



Components used in ESC



The components used in ESC mainly include the following:



Solder pads for the 3-BLDC motor phases

Negative (-) LIPO connections

Positive (+) LIPO Connection

Servo signal or input of the PWM signal

GND reference of PWM Signal

Solder jumper, for altering the direction of Rotation (CW/CCW)

Solder jumper, for varying the type of the PWM input signal

State LED



Types of an Electronic Pace Controller



There are two kinds of electronic pace controllers based on the specific requirements, you can acquire the exact one existing in RC Models shops such as brushed ESC and brushless Electronic Pace Control.

Brushed ESC



Brushed ESC is the first electronic pace controller, which has been around for several years. It is very cheap to use in various RTR electric RC vehicles.



Brushless ESC



Brushless ESC is the modern advancement in technology once it comes to Electronic Pace Controls. It is also a bit more costly. Connected to a brushless motor, it carries more power higher performance as compared to the brushed ones. It can also last a longer period.



Electronic Pace Controller Circuit



The term ESC is frequently used as a contraction for 'electronic pace controller. The basic function of ESC is to change the amount of power to the electric motor from the aircraft battery based upon the location of the throttle stick. In earlier, pace controllers are mainly used in remote control boats and cars which use a variable resistor with a wiper that was stimulated by a servo motor.







This technique functions adequately at full throttle as the battery is connected directly to the motor, though at partial throttle conditions the flow of current through the resistor producing power to be lost in the form of heat. As a model, the aircraft will use most of its time at the portion of the throttle. This is not a very practical means of power regulation.

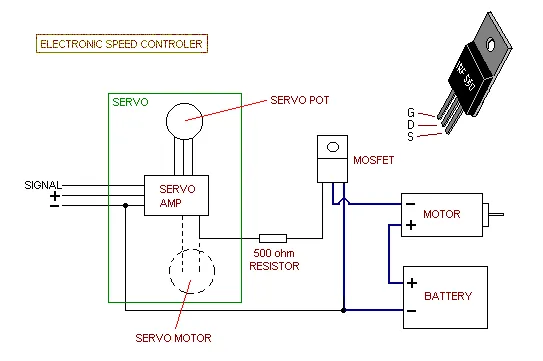

Current pace controllers differ the power to the motor by fast switching the power ON and OFF. Here, MOSFET Transistor is used as a switch instead of a mechanical device, and the amount at which it is switched is about 2000 times a second. So, the power to the motor is diverse by changing the amount of ON time, against off time in a specified cycle. Here is the simple ESC circuit with a waveform diagram that may help with the description.



When the metal-oxide-semiconductor field-effect transistor (MOSFET) is activated, the current escalates as the magnetic flux in the coils of the motor augments. When the MOSFET is deactivated, the magnetic energy accumulated in the windings must be absorbed by the ESC. By connecting a diode across the motor, we channel the energy back into the motor as current, which diminishes as the magnetic field decays.



ESC Firmware



The majority of contemporary ESCs primarily encompass a microcontroller to interpret the input signal and properly govern the electric motor through an embedded program, which is referred to as firmware.



In certain situations, it is feasible to alter the factory-installed program for an alternative. This can be accomplished by tailoring the ESC to a specific application. Some types of ESCs are equipped with user-upgradeable firmware, whereas others require soldering. Typically, these are marketed as black boxes with proprietary firmware.



Electronic Pace Controller for Drone



In the majority of drone applications, the utilization is continually escalating across a diverse range of domains, spanning from hobbyist to industrial, commercial, and even advanced military applications.



The principal advantages of Drones are their ability to be operated remotely, enabling access to regions that would be arduous, inconvenient, or hazardous to reach in person. The commercial applications of drones are manifold, such as monitoring structures, facilities, agriculture, capturing footage, and delivering medicines, packages, and other essential goods.



Generally, the high-range of drones mainly equipped with BLDC motors but these motors need cautious & continuous pace regulation for the relative direction of revolution. For that, the ESC circuit is responsible. So the ESC design mainly includes the following features.



The topology utilized for controlling the motor

Compromise among efficiency & cost

The kind of battery used on the drone

Necessary performance



EMC (electromagnetic compatibility) and resistance to interference





In drones, two types of brushless motors are employed - BLDC (Brushless DC), BLAC (Brushless AC), also referred to as PMSM (Permanent Magnet Synchronous Motors). The selection of the motor primarily depends on the preferred control algorithm, such as trapezoidal or FOC (Field-Oriented Control).



How does an ESC Work?



ESC plays a key role in automobiles by preventing a car from skidding & the vehicle driver from losing their control while driving a vehicle. This technology automatically activates the brakes to help steer the vehicle in the right direction.



The ESC is one of the primary active safety systems that are already integrated with both passenger cars and commercial vehicles. In a European nation, a majority of cars are equipped with ESC technology. Active safety technologies can prevent disasters from occurring altogether or actively assist the driver to mitigate the impact of a crisis. These systems provide the driver with additional control in hazardous situations. Thus, various safety systems consistently monitor the vehicle's performance and its surroundings.



Choosing the Right ESC



The number one significant consideration to keep in mind is to match the Electronic Pace Control to the sort of motor you used. Be sure to purchase the correct ESC for the exact motor: brushed ESC is used for the brushed motor, brushless ESC is used for the brushless motor, never vice versa. Usually, apart from the labels, you will directly know that it's a brushed motor if it has 2-wires. If the motor has three wires, then it is brushless.



For people who are not aware of electronic pace control, most of the models like the RTR RC model are provided with a pre-installed Electronic Pace Control. Most of these are brushed digital units that carry a decent act in their operations. If the RC car comes with analog pace control, which needs a servo to work the swing arm, consider receiving a digital one as soon as you can.



It is also acceptable to acquire an ESC with the reverse functionality. This way, you will eliminate all the disturbances and deterrents descending from the driver's area, enabling you to retrieve your RC car each time it becomes obstructed on the track.



Applications of ESC



Electronic speed control systems are utilized in remote control and vehicle applications.



Electric cars

Electric bicycles

Electric aircraft

Automobiles

Helicopters

Airplanes

Watercraft

Quadcopters

ESC Firmware



Thus, this provides an overview of the ESC. We hope you have gained a better comprehension of this concept. Furthermore, if you have any queries regarding this concept or the implementation of any electrical projects, please share your valuable suggestions by commenting in the section below. Here's a question for you - What is the function of the ESC?
