What is an LCD Display:All Explained

Currently, liquid crystal displays (LCDs) are ubiquitous; however, their development was not immediate. Progressing from the discovery of liquid crystals to the widespread application of LCDs took considerable time. In 1888, Austrian botanist Friedrich Reinitzer first identified liquid crystals. Observing the behavior of materials like cholesteryl benzoate, he noted their transition from a cloudy fluid to clarity with increasing temperature, followed by a blue hue before crystallization upon cooling. The inaugural experimental LCD was crafted by the RCA Corporation in 1968. Subsequently, LCD manufacturers have innovatively enhanced the technology, expanding its capabilities remarkably. Consequently, advancements in LCD technology have proliferated.

What is an LCD (Liquid Crystal Display)?

A liquid crystal display, or LCD, derives its name from the combination of two states of matter: solid and liquid. An LCD employs liquid crystals to create a visible image. These displays are ultra-thin and are commonly used in laptop screens, televisions, mobile phones, and handheld video games. The technology behind liquid crystal displays allows them to be significantly thinner compared to cathode ray tube (CRT) technology.

An LCD consists of multiple layers, including two polarized panel filters and electrodes. This technology is utilized to present images in notebooks and other electronic devices like mini-computers. Light is directed through a lens onto a layer of liquid crystal. The interplay of this colored light with the grayscale image produced by the liquid crystal (as electric current passes through it) generates the final colored image that appears on the screen.

an LCD (Liquid Crystal Display)

What is an LCD (Liquid Crystal Display)?

How LCDs are Constructed?

Constructing an LCD involves several key considerations:

1. The fundamental structure of the LCD must be regulated by varying the applied current.

2. Utilization of polarized light is imperative.

3. The liquid crystal must possess the capability to control both transmission and alteration of polarized light.

To begin, two pieces of polarized glass filters are required for the LCD assembly. The glass lacking a polarized film on its surface should be treated with a specialized polymer, creating microscopic grooves aligned in the same direction as the polarized film.

Next, a layer of pneumatic liquid phase crystal is applied to one of the polarizing filters. The microscopic channels induce alignment of the first layer molecules with the filter's orientation. Subsequently, when a second piece of glass with polarized film is introduced at a right angle to the first layer, polarization occurs naturally as light initially strikes it.

As light traverses through each layer, it is guided to the subsequent layer by the molecules, which adjust the plane of light vibration to match their angle. Upon reaching the far end of the liquid crystal substance, the light vibrates at the same angle as the final layer of molecules. Entry into the device is permitted only if the polarization of the second layer of polarized glass aligns with the final layer of molecules.

How LCDs Work

The operating principle of LCDs involves the response of liquid crystal molecules to an electrical current. When current is applied, these molecules untwist, altering the angle of light passing through the polarized glass and affecting the angle of the top polarizing filter. Consequently, light passing through specific areas of the LCD is reduced, making those areas appear darker.

LCDs function by blocking light. During construction, a reflective mirror is placed at the back of the display. An indium-tin-oxide electrode plane is positioned on top, with a polarized glass featuring a polarizing film at the bottom. The entire LCD region is covered by a common electrode, with the liquid crystal material situated above it.

A second piece of glass, featuring a rectangular electrode on the bottom and another polarizing film on top, is then added. These two glass pieces are positioned at right angles to each other. In the absence of current, light entering the front of the LCD is reflected by the mirror at the back. When the electrode is powered by a battery, the current causes the liquid crystals between the common-plane electrode and the rectangular electrode to untwist, thereby blocking light from passing through and rendering the rectangular area dark.

How LCD utilizes Liquid Crystals & Polarized Light?

An LCD TV monitor employs the concept of sunglasses to manipulate its colored pixels. Positioned behind the LCD screen is a powerful backlight that emits light towards the viewer. On the front surface of the display, millions of pixels are arranged, each consisting of smaller units called sub-pixels. These sub-pixels are colored with variations of green, blue, and red hues. Each pixel within the display contains a polarizing glass filter positioned perpendicular to another filter, causing the pixel to appear dark in its default state.

Situated between these two filters is a small twisted nematic liquid crystal that can be electronically controlled. When the liquid crystal is in its deactivated state, it rotates the light passing through by 90 degrees, effectively allowing it to pass through both polarizing filters and making the pixel appear bright. However, when the liquid crystal is activated, it does not rotate the light, effectively blocking it from passing through the polarizer, resulting in the pixel appearing dark. Each pixel is individually controlled by a separate transistor, toggling its state on and off multiple times per second.

How to Choose an LCD?

Many consumers lack comprehensive knowledge about the various types of LCDs available in the market. Therefore, before making a selection, they gather information on features, price, brand reputation, quality, specifications, customer service, and reviews. It is a reality that marketers often capitalize on the fact that most customers conduct minimal research before making a purchase decision.

One aspect to consider when choosing an LCD is motion blur, which can result from the time it takes for an image to switch and display on the screen. However, the occurrence of motion blur varies significantly among individual LCD panels, regardless of the underlying LCD technology. Choosing an LCD based on its underlying technology should prioritize factors such as price versus desired differences in viewing angles and color reproduction, rather than solely focusing on estimated blur or other gaming-related qualities. The panel's specifications should include consideration of the highest refresh rate and response time. Additional gaming technologies, such as strobing, involve rapidly turning the backlight on and off to reduce motion blur.

Different Types of LCDs

There are several types of LCDs, each with unique characteristics:

Twisted Nematic Display

Twisted Nematic (TN) LCDs are the most commonly produced and utilized displays across various industries. They are popular among gamers due to their affordability and fast response times compared to other displays. However, their main drawbacks include lower quality, limited contrast ratios, narrower viewing angles, and less accurate color reproduction. Despite these limitations, TN displays are adequate for everyday use.

These displays offer quick response times and high refresh rates, making them the only gaming displays available with 240 hertz (Hz). The lower contrast and color accuracy are due to the imprecise twisting mechanism of the liquid crystals.

In-Plane Switching Display

In-Plane Switching (IPS) displays are considered the best LCDs due to their superior image quality, wider viewing angles, and vibrant color accuracy and contrast. They are primarily used by graphic designers and in applications where high standards for image and color reproduction are essential.

Vertical Alignment Panel

Vertical Alignment (VA) panels fall between Twisted Nematic and In-Plane Switching technologies. These panels offer better viewing angles and color reproduction with higher quality than TN displays. However, they have slower response times. VA panels are more affordable and suitable for everyday use.

The structure of VA panels produces deeper blacks and better colors compared to TN displays. Several crystal alignments in these panels allow for improved viewing angles. However, this technology comes with tradeoffs, such as being more expensive, slower response times, and lower refresh rates compared to other displays.

Advanced Fringe Field Switching (AFFS)

AFFS LCDs deliver superior performance and a wide color reproduction range compared to IPS displays. Their applications are highly advanced, as they can minimize color distortion while maintaining broad viewing angles. Typically, AFFS displays are utilized in sophisticated and professional environments, such as commercial airplane cockpits.

Passive and Active Matrix Displays

Passive Matrix Displays

Passive matrix LCDs operate using a simple grid system to supply charge to specific pixels on the LCD. The grid, designed with a straightforward process, consists of two substrates, or glass layers. One layer provides columns, while the other provides rows, both made from a conductive material like indium-tin-oxide.

In this setup, rows and columns are connected to integrated circuits (ICs) to control when charge is transmitted to a particular row or column. The liquid crystal material is sandwiched between the two glass layers, with a polarizing film added to the external side of the substrate. An IC sends a charge down a specific column of one substrate, while the ground is activated for the corresponding row of the other substrate, thereby activating a pixel.

Passive matrix displays suffer from significant drawbacks, including slow response times and imprecise voltage control. Response time refers to the display's ability to refresh the image being displayed. One way to gauge the slow response time in such displays is by quickly moving the mouse pointer from one side of the screen to the other.

Active Matrix Displays

Active matrix LCDs rely on thin-film transistors (TFTs). These small switching transistors and capacitors are arranged in a matrix on a glass substrate. When a specific row is activated, charge is transmitted down the corresponding column to address a particular pixel, with all other rows intersecting that column being deactivated. Only the capacitor adjacent to the designated pixel receives a charge.

The capacitor retains the charge until the next refresh cycle. By carefully controlling the amount of voltage supplied to the crystal, it can be untwisted to allow light through. Most modern panels offer brightness with 256 levels for each pixel.

How Colored Pixels Function in LCDs

In the anatomy of a TV, a luminous source is positioned at the rear, while the front is adorned with numerous colored squares capable of toggling ON/OFF. Let's delve into the mechanism behind the activation and deactivation of each colored pixel:

Deactivation of Pixels in LCDs

1. Light emanates from the rear of the LCD and travels towards the front.

2. A horizontal polarizing filter positioned in front of the light obstructs all light signals except those vibrating horizontally.

3. To deactivate a pixel, a transistor facilitates the flow of current through its liquid crystals, aligning them. Consequently, light passing through these crystals maintains its horizontal vibration.

4. Light signals, vibrating horizontally, traverse through the liquid crystals.

5. Another polarizing filter, this time vertically oriented, intercepts all light signals except those vibrating vertically. Consequently, light unable to pass through the liquid crystals renders the pixel dim.

Activation of Pixels in LCDs

1. The luminous source at the rear continues to emit bright light.

2. A horizontal polarizing filter, once again, obstructs all light signals except those vibrating horizontally.

3. By halting the flow of electricity in the liquid crystals, a transistor activates the pixel, allowing the crystals to rotate. As a result, light signals passing through are rotated by 90°.

4. Light signals, now vibrating horizontally, exit the liquid crystals and begin to vibrate vertically.

5. A vertically oriented polarizing filter permits only vertically vibrating light signals to pass through. Consequently, light that previously couldn't pass through the liquid crystals is now able to traverse the vertical filter.

6. Once activated, the pixel displays color.

Difference between Plasma & LCD

While both plasma and LCD displays share similarities, their operational mechanisms are fundamentally distinct. In plasma displays, each pixel functions as a minute fluorescent lamp that illuminates through plasma—an exceedingly hot gas where atoms dissociate into electrons (negatively charged) and ions (positively charged). These dissociated atoms move freely and emit light upon collision. Plasma screens can be designed on a larger scale compared to conventional cathode-ray tube (CRT) TVs, but they come at a considerable cost.

Advantages

The advantages of liquid crystal displays (LCDs) include:

- LCDs consume less power compared to CRT and LED displays.

- LCDs require only microwatts for display, while LEDs require several milliwatts.

- LCDs are cost-effective.

- They offer excellent contrast.

- LCDs are thinner and lighter compared to cathode-ray tubes (CRTs) and LEDs.

Disadvantages

The disadvantages of liquid crystal displays (LCDs) include:

- They require additional light sources.

- The operational temperature range is limited.

- They have lower reliability.

- Their response speed is slow.

- LCDs require an AC drive.

Applications

The applications of liquid crystal displays (LCDs) include:

- LCD technology is widely used in science, engineering, and electronic devices.

- Liquid crystal thermometers.

- Optical imaging.

- Visualization of radio frequency waves in waveguides.

- Medical applications.

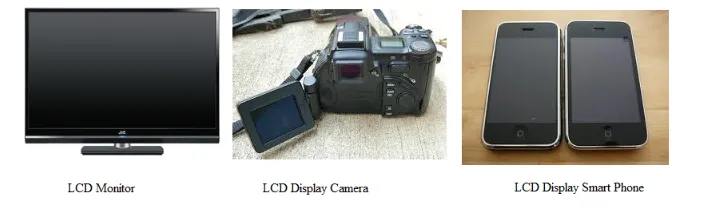

A Few LCD Based Displays

This overview of LCDs covers their structure from the back to the front, including backlights, sheet1, liquid crystals, sheet2 with color filters, and the screen. Standard liquid crystal displays use backlights such as cold cathode fluorescent lamps (CCFL). These lights are uniformly positioned behind the display to provide consistent illumination across the panel, ensuring that the brightness level of all the pixels in the image is even.

I hope you now have a solid understanding of liquid crystal displays.
