LM324N IC: Applications, and Features

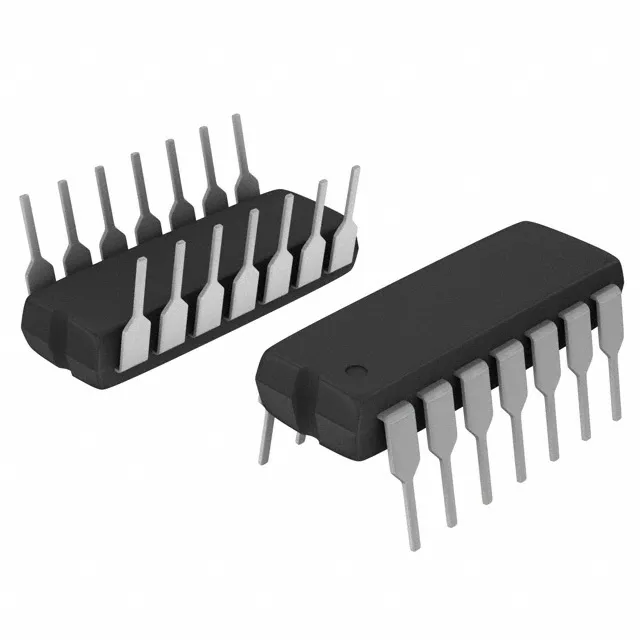

LM324N IC



The operating amplifier LM324 consists of four independent operational amplifiers and can be used as a comparator. For use with a single power supply across a wide range of voltages, this IC is designed to operate with low power, high bandwidth, and high stability. For low voltage, this IC operates at 3.0 V and for high voltage, it operates at 32 V. Since the negative voltage supply is its primary input, many applications do not require external biasing components. Negative voltages are also included in the output voltage range. Comparators such as the LM324 are discussed in this article.

What is an LM324 IC?

As a member of the operational amplifier (op-amp) family, the LM324 is a versatile and widely used integrated circuit (IC). There are four components in an operational amplifier, including a low input offset voltage, a low input bias current, and a high gain bandwidth product. These characteristics can be useful for a variety of analog applications, including signal conditioning, amplification, filtering, and voltage regulation. Diverse electronic circuits can benefit from the LM324's flexibility over a wide supply voltage and temperature range.



The LM324 is widely used in consumer electronics, automotive, and industrial automation industries due to its low cost, reliability, and ease of use. Active filters, voltage followers, comparators, sensor signal processing circuits, and audio amplifiers use it frequently. Engineers looking for an economical yet effective analog circuit solution choose the LM324 because it has a straightforward pinout and is compatible with standard operational amplifier configurations.



LM324N IC Pin Configuration

Four independent operational amplifiers are packed together in the LM324N. Within the LM324N, there is no differentiation between operational amplifiers in terms of functionality or pin configuration. Let's take a closer look at each pin and its function:



Input 1 (-IN1): The first operational amplifier has an inverting input terminal. Typically, a resistor network is used to connect the input signal for amplifying or processing.



Input 1 (+IN1): The first operational amplifier's input terminal is non-inverting. If the amplifier is used in a non-inverting configuration, it is normally connected to ground or a fixed reference voltage.



Output 1 (OUT1): An operational amplifier's output terminal is located at this pin. This pin is used for amplifying or processing signals.

V-: This is the pin that connects the power supply to the negative side. An application with a single power supply connects this to the negative terminal, which is typically ground.



Input 2 (-IN2), Input 2 (+IN2), and Output 2 (OUT2): As with the first operational amplifier, these pins can be used for the second operational amplifier as well.



Input 3 (-IN3), Input 3 (+IN3), and Output 3 (OUT3): As with the first and second operational amplifiers, these pins are for the third operational amplifier.



Input 4 (-IN4), Input 4 (+IN4), and Output 4 (OUT4): In the same way that the first three operational amplifiers were connected, these pins are for the fourth.



V+: This pin is part of the positive power supply. The power supply's positive terminal is connected to it.



NC (Not Connected): A pin like this is typically left unconnected and does not connect to any circuitry internally.



Offset Null 1 (Offset Null1), Offset Null 2 (Offset Null2), Offset Null 3 (Offset Null3), and Offset Null 4 (Offset Null4): Offset voltages can be nulled or adjusted using these pins. Each operational amplifier's input offset voltage can be adjusted by connecting a potentiometer or resistor network between these pins.

LM324N IC Features

There are a variety of features available on the LM324N which makes it suitable for a wide range of analog applications. Now let's take a closer look at its features:



Quad Op-Amp Configuration: With four independent operational amplifiers incorporated into a single package, the LM324N allows circuits to be designed more efficiently and at a lower cost. There is one input pin, one output pin, and one power supply pin on each op-amp.



Low Input Offset Voltage: Input offset voltages for LM324N are typically in the millivolt range. As a result, amplification and signal conditioning applications are able to process signals accurately and minimize errors.



Low Input Bias Current: LM324N's low input bias current ensures that the device operates efficiently. As a result, high-impedance circuits and sensor interfaces are less likely to generate errors due to input bias currents.



High Gain Bandwidth Product: As a high gain bandwidth product, the LM324N is capable of getting a high amount of signal amplification across a wide spectrum of frequencies. As a result of this feature, it can be used in a variety of applications including high-frequency amplifiers, active filters, and more.



Wide Supply Voltage Range: An LM324N can be operated from a wide range of supply voltages, such as a single positive (e.g., 3V to 32V) or dual positives (e.g., ±1.5V to ±16V). Due to its flexibility, this power supply can work with a wide variety of voltage levels and configurations.



Low Power Consumption: Low-power applications relying on battery power or low-power sources are perfect for the LM324N due to its low power consumption. Battery life is prolonged and heat dissipation is reduced.



Temperature Stability: This chip performs well at a wide range of temperatures, typically from -25°C to 85°C or even higher. Regardless of the environmental conditions or applications, this ensures reliable operation.



Internally Frequency Compensated: In addition to eliminating the need for external frequency compensation components, the internal compensation of the LM324N simplifies circuit design. In feedback amplifier circuits, it prevents oscillations and ensures stable operation.



Cost-Effective Solution: As a result of its wide availability, low cost, and versatility, the LM324N is an ideal analog signal processor and amplifier for engineers and hobbyists alike.

LM324N IC Applications

An integrated circuit (IC) such as the LM324N is capable of handling a wide range of applications in many different industries. Here are some examples of its applications:



Signal Conditioning: Amplification, filtering, and impedance matching are common signal conditioning tasks that are performed with the LM324N. Sensors and transducers can be amplified, noise or unwanted frequencies can be filtered out, and signal levels can be adjusted to satisfy downstream circuit requirements.



Voltage Comparator: An LM324N is used in voltage comparator circuits to determine which input voltage level is higher by comparing two input voltage levels. Overvoltage protection and voltage monitoring circuits use this functionality extensively.



Active Filters: There are several types of active filters that can be implemented in the LM324N, including low-pass filters, high-pass filters, band-pass filters, and band-stop filters. Various frequency components of a signal can be selectively passed or rejected by these filters in audio processing, communication, and instrumentation.



Voltage Reference: The LM324N can provide a stable voltage reference output by using their op-amps as voltage followers or buffers. Analog-to-digital converters (ADCs) and voltage regulators are among the applications requiring this feature.



Oscillator Circuits: This device can produce both square wave and triangular wave oscillations, which makes it perfect for controlling pulse width modulation (PWM), creating tones, and creating frequencies.



Active Rectifiers: In comparison to passive diode rectifiers, the LM324N provides improved efficiency and voltage drop reduction when converting AC to DC signals.



Current Sensing: Current sensing applications can benefit from the LM324N's low input bias current and input offset voltage characteristics. Power monitoring, battery management, and motor control systems can accurately detect current levels by measuring small voltage drops across shunt resistors.



Temperature Measurement: Temperature measurement circuits utilizing thermistors or temperature sensors can be constructed using the LM324N. Temperature can be measured and controlled accurately by amplifying and linearizing the voltage from the sensor.



Voltage Regulation: Voltage regulators or voltage stabilizers such as the LM324N can maintain a constant output voltage regardless of variations in input voltage or load. Circuits for voltage reference, battery chargers, and power supplies commonly use this application.



Audio Amplifiers: In low-power devices such as intercom and alarm systems, and portable audio devices, the LM324N is useful for making simple audio amplifier circuits.

Wrapping Up

It offers a combination of versatility, cost-effectiveness, and performance in analog electronics, making it a reliable cornerstone in analog electronics. From signal conditioning to voltage regulation, the LM324N proves indispensable in a wide range of industries with its quad op-amp configuration and low input offset voltage.



Engineers and hobbyists alike prefer it because of its stability and reliability over a wide temperature range. This fundamental component in countless electronic designs has enduring value, even though it is not suited for specialized applications. Its reliability and broad utility makes the LM324N a trusted workhorse for analog circuits of all kinds, enabling innovation and functionality.
