Understanding Rectifiers: How Do They Convert AC to DC?

I. Introduction

A rectifier is an electrical device that converts alternating current (AC) to direct current (DC). A unidirectional inflow of electrical charge is the outgrowth of it allowing current to travel in just one direction. Rectifiers play a pivotal role in numerous different types of electronic circuits and power inventories since they're necessary for the effective operation of numerous electronic systems and widgets.



Typically, baseboards convert AC to DC using semiconductor diodes. Diode driving and current flow are enabled by the input AC waveform during the positive half-period. The diode conducts no current and is reversed during the negative half-period. Consequently, only the positive half cycles of the input AC waveform are present in the rectifier's palpitating DC waveform affair. The purpose of this article is to give a detailed explanation of how rectifiers work and their significance in electronics.



II. Working Principles of Rectifiers

A. Explanation

The abecedarian task of rectifiers is to change alternating current( AC) into direct current( DC). Since numerous electronic systems and outfit require DC power to serve properly, this conversion is pivotal.



B. Half-wave rectifier

The half- wave rectifier is the utmost introductory type of rectifier. It's made up of a single diode that's linked to the cargo in series. The diode is driven by the input AC waveform during the positive half-period, which permits current to pass through the circuit and enter the load.



C. Diode

Current can flow through the circuit when the diode at the half-wave substrate is forced forward due to a positive AC input voltage. Nevertheless, the diode is inverted during the AC input waveform's negative half-period, blocking current flow through the circuit.

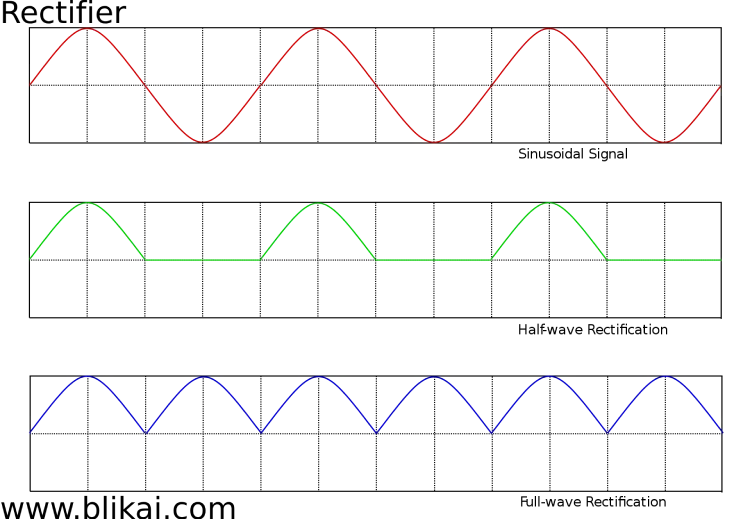

III. Types of Rectifiers



Electronic devices called rectifiers change alternating current (AC) into direct current (DC). Diverse kinds of rectifiers exist:



1. Half-Wave Rectifier:

• Consists of a single diode that is wired to the load in series.
• One source of alternating current is linked to the input of one diode.



2. Full-Wave Rectifier:

• Produces a DC output by converting both half of the AC input waveform.
• The following are the types of full wave rectifiers:
• Wave Rectifier: A center motor and two diodes are used in the Center Tap Full.
• Bridge rectifier: a bridge-shaped rectifier that makes use of four diodes.





3. Bridge Rectifier:

• The full-wave rectifier that is most frequently utilized.
• It uses four diodes in a ground configuration to amend both positive and negative half- cycles of the input AC signal.



4. Voltage Multiplier Rectifiers:

• When a very high DC voltage is needed, these rectifiers are employed.
• The voltage rectifier manufactured by Cockcroft-Walton is one example.

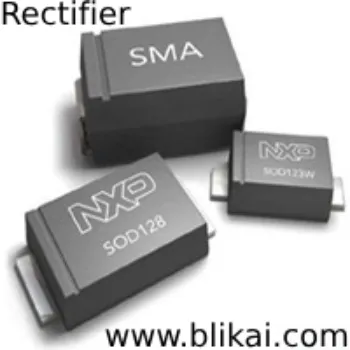

5. Power Diodes:

• Regular PN-junction diodes can be used as rectifiers in low power applications.





6. Zener Diode Rectifiers:

• Used for voltage regulation in addition to rectification.



7. Schottky Diode Rectifiers:

• Faster switching diodes than regular PN-junction diodes.
• Suitable for high-frequency applications.



IV. Advantages of Rectifiers

1. Convert AC to DC: Rectifiers are essential for the majority of electronic systems and equipment to function because they convert AC to DC.



2. Efficient Power Conversion: Baseboards make it possible to convert mains power from AC to DC power in an efficient manner, which lowers power loss and raises the general efficiency of electronic systems.



3. Versatility: They can be used for a variety of purposes and come in a broad range of designs, such as half-wave, full-wave, bridge, and medium tap.



4. Cost-Effectiveness: Basins are an affordable and simple-to-manufacture alternative for converting AC to DC power.



5. Reliability: Re rectifiers are robust and dependable semiconductor devices as they don't have any moving parts.



V. Disadvantages of Rectifiers

1. Voltage Ripple: A pulsating DC waveform, which may include notable voltage pulsation, is a common characteristic of rectifiers' output. In order to stabilize the output, this pulse may need to be further filtered as it can lead to variations in the output voltage.



2. Harmonic Distortion: When rectifiers produce harmonic distortions in the AC power system, other electronic devices connected to the same power source may work less well.



3. Power Factor Correction: Inefficient use of electricity and higher energy expenses might result from rectifiers with low power factors. For the system to operate more efficiently, more power factor adjustment could be required.



4. Heat Generation: When rectifiers are in operation, especially when they are using a lot of power, they can produce a lot of heat. It could be essential to take applicable cooling and heat- immersion preventives to avoid overheating and guarantee reliable performance.



5. Electromagnetic Interference (EMI): During standalone switching operations, electromagnetic interference( EMI) may be produced, which may beget dislocations to conterminous electronic devices. To bring down EMI to manageable levels, shielding and filtering could be required.

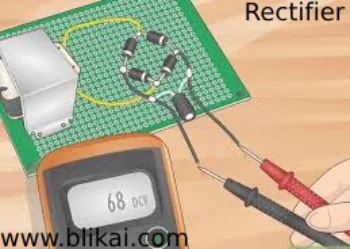

VI. Applications of Rectifiers

Rectifiers are crucial parts of many different kinds of power systems and electronic circuits. The following are a few of the more typical uses for rectifiers:



1. Power Supplies:

Rectifiers are generally used in power inventories to transfigure mains AC electricity into DC voltage, which powers electronic devices and outfit.



2. Battery Charging:

To charge the batteries in widgets like cellphones, computers, and electric cars, rechargers are employed in battery chargers to convert AC to DC voltage.



3. Signal Demodulation:

By separating the modulating signal from the carrier, subcarriers are employed in dispatches systems to demodulate breadth modulated( AM) transmissions.



4. DC Motor Drives:

To drive DC motors, motor drives employ sub-drives to convert AC power to DC power.



5. High Voltage DC Transmission:

Substations are used in High Voltage Direct Current( HVDC) transmission systems to transfigure the grid's alternating currents into high voltage direct currents that can be transferred over great distances with smaller losses.



6. Welding Power Supplies:

In order to convert AC to DC for arc welding, substations are utilized in welding machines.



7. Uninterruptible Power Supplies (UPS):

In UPS systems, UPSs are utilized to convert AC power to DC power, enabling battery charging and provisional power in the event of a power outage.



8. Switched-Mode Power Supplies (SMPS):

By efficiently converting AC to DC power, switched-mode power supplies (SMPS) offer superior power conversion and management in SMPS operations when compared to direct power supplies.



9. Solar Power Systems:

In solar energy systems, basins are used to change the direct current produced by solar panels into interspersing current for use in homes and businesses.



10. Railway Traction Systems:

To drive traction motors, third rail or overhead line AC electricity is converted into DC power via substations in railway transport systems.





VII. Conclusion

In summary, rectifiers convert AC to DC by only allowing electricity to travel in one way. Power supply, battery chargers, signal modulation, and motor control circuits are just a few of the many uses for them. Anyone dealing with electronic systems and equipment has to understand rectifier operation principles and applications.



Final Thoughts

Rectifiers are essential electronic factors that are used in numerous ultramodern electronics and technological systems. Rectifiers facilitate the effective operation of electronic devices and systems by converting alternating current( AC) to direct current( DC). Rerectifiers are essential for the effective operation of numerous electronic outfit.



FAQ

1. What is a rectifier?

An electrical device that changes alternating current( AC) into direct current( DC) is called a rectifier. It results in a unidirectional inflow of electrical charge since it only permits one direction of current inflow.



2. How do rectifiers work?

In baseboards, pulsed direct current (DC) is produced from an alternating current (AC) input using semiconductor diodes. A diode drives the input AC waveform during the positive half-period, allowing current to flow. The diode is inverted during the negative half-period and doesn't conduct.



3. What are the different types of rectifiers?

The two main types of rectifiers are half-wave rectifiers and full-wave rectifiers.



• Half-wave rectifiers: these devices convert AC to DC by exercising just half of the input's AC waveform and a single diode.
• Full-wave rectifiers: for further effective conversion, employ the input AC waveform's positive and negative half- cycles. Bridge rectifiers and medium valve rectifiers are exemplifications of full wave rectifiers.



4. What are the applications of rectifiers?

Rectifiers are used in a wide range of electronics and artificial operations, such as:



• Power supplies: these devices convert the mains AC electricity to DC voltage for use in electronic systems and outfit.
• Battery chargers: these devices transfigure mains AC voltage into DC voltage in order to charge batteries.
• Signal demodulation: removing audio signals from radio receivers' modulated carrier signals.
• Motor control: the process of converting AC to DC voltage to regulate the speed and direction of DC motors.



5. What are the advantages of using rectifiers?

Advantages of rectifiers include:



• Efficient power conversion from AC to DC.
• Versatility in design and application.
• Cost-effectiveness and reliability in operation.



6. What are the disadvantages of using rectifiers?

Disadvantages of rectifiers include:



• Voltage ripple and harmonic distortion in the output waveform.
• Poor power factor and potential for increased energy costs.
• Heat generation and electromagnetic interference during operation.
