Network Layer In OSI Model (Fully Explained)

It is often said that threats target a particular layer in cybersecurity. How does that work in practice? It explains how data signals travel from one point to another, and is therefore fundamental to computer science as a whole. In this article we are going to discuss what is the network layer in the OSI model in full detail! You can learn more from our Blog section.

What is a Network Layer?

Defining the best path for data to travel from the source to the destination is the role of the network layer in the OSI (Open Systems Interconnection) model. Data packets across interconnected networks are routed by the routing protocol to their intended destination. By using logical addressing (such as IP addresses), the network layer can identify devices and determine which data transmission path is the most efficient using routing protocols such as OSPF (Open Shortest Path First), BGP (Border Gateway Protocol), and RIP (Routing Information Protocol). For smooth data flow throughout the network, this layer is also responsible for packet forwarding, packet sequencing, and congestion control.

In addition, network units and errors are considered when fragmentation and reassembling data packets. As a result, devices across various networks can effectively communicate thanks to its scalability and interoperability. As the backbone of modern networks and internet communication, the network layer manages packet paths and addresses to ensure reliable, efficient, and accurate data transfer. You can also learn about the What is RF Modulator in detail from here.

Functions of Network Layer

Data packets are routed and delivered efficiently across complex networks through the network layer, which is the third OSI (Open Systems Interconnection) layer. The primary functions of the system are as follows:

Logical Addressing

IP Addressing: Every device on the network is assigned an IP address (logical address). Addresses serve as means of finding out where data is coming from and where it is going to.

Address Resolution: By mapping IP addresses to MAC addresses through protocols such as ARP (Address Resolution Protocol), logical addresses can be translated into physical addresses.

Routing

Path Determination: A data packet's optimal path to the destination is determined by the network layer. Distance, congestion, and link quality are factors to consider when evaluating routes.

Routing Protocols: As changes in topology occur, OSPF (Open Shortest Path First), BGP (Border Gateway Protocol), and RIP (Routing Information Protocol) are used to determine routes and maintain them in real time.

Packet Forwarding

Next-Hop Routing: As data packets travel from hop to hop towards the destination, they are forwarded to the network layer. The best next hop for each packet is determined by consulting the routing table.

Switching: It is the network layer that transfers packets between the different segments of WANs (Wide Area Networks) to guarantee they reach their intended destinations.

Packet Fragmentation and Reassembly

Fragmentation: The network layer breaks up large packets into smaller fragments when they cannot be transmitted over a network segment. After arriving at the destination, each fragment is reassembled separately.

Reassembly: A fragment of a packet is reassembled with the original packet at the network layer of the destination device. In this way, data is delivered accurately and completely.

Error Handling and Diagnostics

Error Detection: A packet's checksum or another mechanism for detecting errors is used at the network layer.

Error Reporting: It is possible to diagnose problems like unreachable destination, routing loops, or time exceeded by ICMP (Internet Control Message Protocol) through protocols like this.

Time to Live (TTL): During packet transmission, the network layer manages the TTL field to prevent packets from looping endlessly. Upon receiving a packet, each router decrements the TTL, and the packet is discarded when it reaches zero.

Traffic Control and Congestion Avoidance

Flow Control: In order to avoid overloading network resources and causing congestion, the network layer regulates the rate of data transmission.

Congestion Control: By adjusting routing paths and throttling data flows, it detects and alleviates network congestion.

Quality of Service (QoS)

Prioritization: Prioritizing certain types of traffic at the network layer can ensure that latency and bandwidth are optimized for critical data (like VoIP or streaming media).

Traffic Shaping: In addition to managing traffic flow, it ensures the efficient utilization of network resources by ensuring specific performance requirements are met.

Network Interconnection

Interconnecting Networks: A network layer enables seamless data transfer across heterogeneous network environments by connecting different types of networks (e.g., wide area networks, local area networks, and metropolitan area networks).

Gateway Functionality: By linking different protocols and architectures, it provides gateway functions.

Security

Packet Filtering: Security measures can be implemented at the packet level, such as packet filtering, to block or allow traffic according to rules.

Network Address Translation (NAT): Network address translation (NAT) modifies IP address headers during network transmission to improve security and manage public IP addresses.

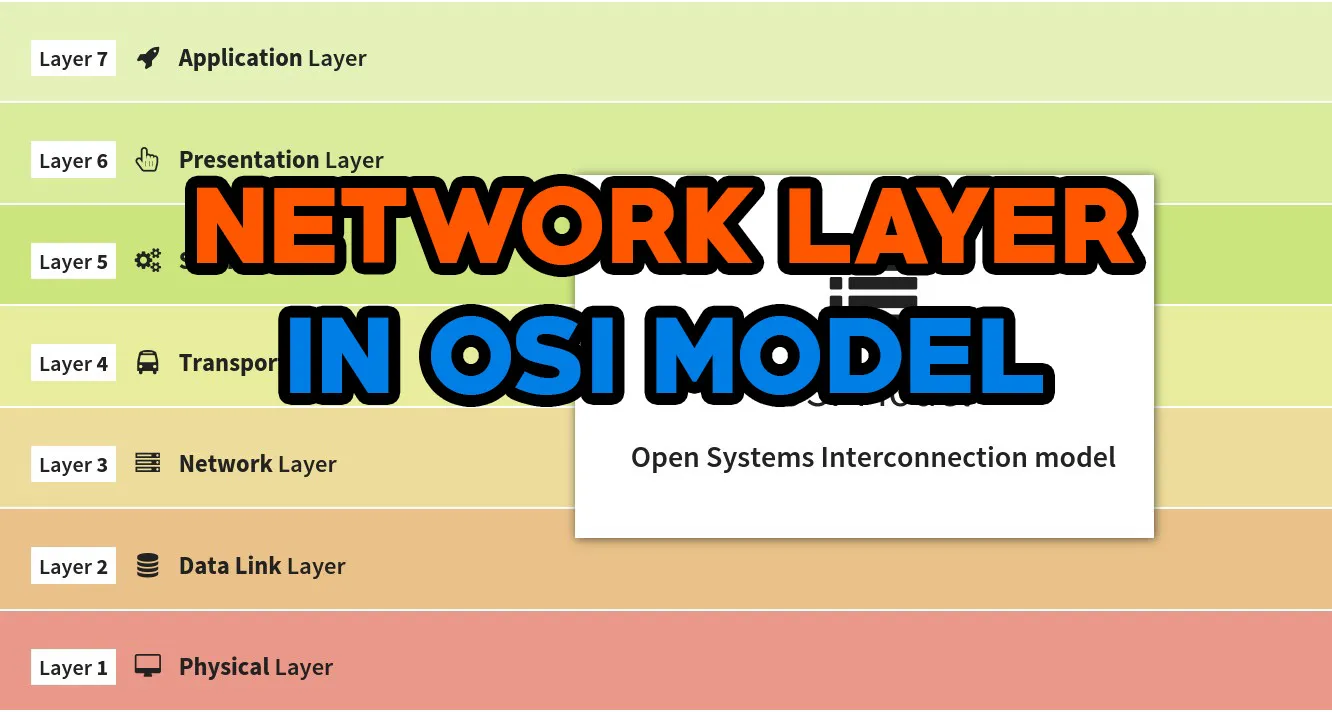

Layers in the OSI Model

Seven distinct layers are used to understand and implement network protocols. The layers interact directly with one another and each has a specific function. OSI layers are explained in detail here:

Physical Layer (Layer 1)

Functions

Transmission of Raw Data: Raw bits are transmitted over physical media by the physical layer. Other physical requirements include cabling, wiring, frequencies, pulses, and other hardware equipment.

Data Encoding: Optical, electronic, or radio signals are produced by converting digital bits.

Bit Synchronization: Maintains bit-level synchronization between the sender and receiver.

Transmission Mode: Simplexing, half-duplexing, or full-duplexing the transmission.

Physical Topology: A network topology describes how devices are physically arranged (e.g., bus, star, ring topologies).

Devices

Cables and Connectors: Cables and connectors, including coaxial, fiber optic, and twisted pair.

Hubs and Repeaters: In order for data to travel over a longer distance, devices that amplify or regenerate signals are used.

Network Interface Cards (NICs): A computer's connection to the network is provided by network hardware.

Data Link Layer (Layer 2)

Functions

Framing: To check for errors and control flow, raw bits are converted into frames (data units).

Error Detection and Correction: Provides error detection and correction at the physical layer.

Flow Control: To avoid overloading the receiver, the sender and receiver manage the rate of data transmission.

MAC Addressing: Devices connected to a local network are uniquely identified by their hardware addresses (MAC addresses).

Sublayers

Logical Link Control (LLC): Flow control, frame synchronization, and error checking are handled by this program.

Media Access Control (MAC): Addressing and channel access methods are managed to enable access to the physical transmission medium.

Devices

Switches: In a local network, these devices forward data to specific devices at the data link layer.

Bridges: Two or more network segments are connected by devices that filter and connect traffic between them.

Network Layer (Layer 3)

Functions:

Logical Addressing: Network devices are identified by IP addresses.

Routing: Analyzes the best path for data across interconnected networks to reach its destination.

Packet Forwarding: Interconnects networks by moving packets.

Fragmentation and Reassembly: At the destination, the packets are reassembled after being divided into smaller pieces.

Protocols

IP (Internet Protocol): Routing and addressing packets are handled by this protocol.

ICMP (Internet Control Message Protocol): Operational information and error messages are stored here.

ARP (Address Resolution Protocol): A MAC address can be resolved from an IP address.

RIP, OSPF, BGP: A routing protocol that determines which path to take for data is the best.

Devices

Routers: Data packets are forwarded between computers by devices.

Transport Layer (Layer 4)

Functions

End-to-End Communication: Connects two endpoints on a network to provide reliable data transfer services.

Segmentation and Reassembly: Reassembles large messages at the destination by dividing them into smaller bits.

Error Detection and Correction: Re-transmits lost or corrupted segments to ensure data integrity.

Flow Control: Ensures that the receiver does not become overwhelmed by data flow from the sender.

Protocols

TCP (Transmission Control Protocol): Delivers data in a reliable, orderly, and error-free manner.

UDP (User Datagram Protocol): Data can be sent more quickly, but less reliably.

Session Layer (Layer 5)

Functions

Session Establishment, Maintenance, and Termination: Connections (sessions) between computers are managed and controlled by this program.

Synchronization: Data streams can be checked for failures and synchronized in case of a failure.

Dialog Control: By using this controller, it is possible to keep the dialogue between two devices going (simple, half-duplex, or full-duplex).

Presentation Layer (Layer 6)

Functions

Data Translation: Provides translation between the network format and the application layer. The program encodes, decodes, and compresses data.

Encryption and Decryption: The encrypted data is sent to the recipient and decrypted once it has been received, ensuring data security.

Data Compression: Improves the efficiency of transmission by reducing the size of data.

Final Thoughts

For data packets to be properly routed and delivered across interconnected networks, the network layer in the OSI model is crucial. As well as translation of logical addresses, routing, packet transmission, fragmentation, reassembly, and error handling, it performs packet forwarding. Data integrity and optimal path selection are ensured by managing these functions at the network layer.

In addition to enhancing network reliability and performance, various routing protocols and error reporting mechanisms are implemented. In everyday internet applications as well as advanced networking, it is indispensable for seamless and robust data transfer across diverse and complex networks.
