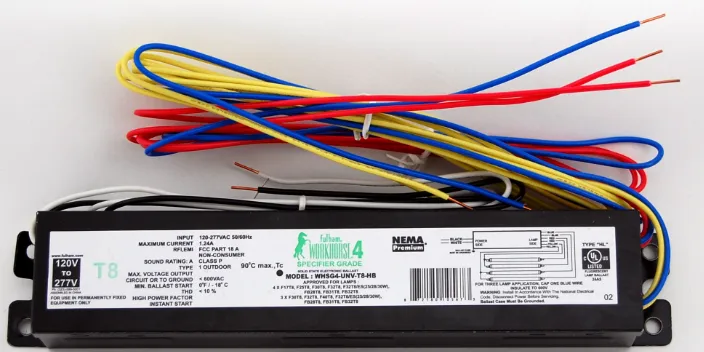

What are Lighting Ballasts?

Lighting ballasts serve as crucial components in numerous fluorescent, HID, and select LED lamps, managing current to suit the specific lamp type. These ballasts are pivotal in enabling the ignition and sustained

operation of failiar fluorescents and HID luminaires, preventing premature burnout by controlling current flow at varying voltages.

If you've ever passed by a standing light fixture or ceiling batten emitting a faint hum or buzz, chances are it's the ballast diligently carrying out its function. But what exactly does a light ballast entail and what role does it play during illumination?

In essence, a ballast functions as an electrical resistor or reactance integrated into the circuits that supply mains power to a light bulb. Its fundamental purpose revolves around controlling and regulating the current provided during distinct operating phases and voltages specific to certain bulb types.

Certain luminaires require an additional component to manage power flow effectively, especially during their switch-on phase (marked by peak power draw) and continuous use (characterized by lower, precisely regulated current). Enter the lighting ballast, an essential addition to ensure proper power control.

When paired with a dimmer, specific ballast types enable regulation of adjustable power draw and light output levels. This grants fluorescent and HID luminaires the potential for comprehensive dimming functionality, akin to the dimmer systems commonly associated with simpler incandescent light bulbs.

How do light ballasts work?

To simplify how a light ballast functions within in-fixture lighting setups, envision it as a component with a dual role. Initially, it provides a surge to initiate the lighting arc and power the lamp, then it moderates this initial high current flow to a steady level once illumination begins—similar to a car's engine during ignition and subsequent idling.

The primary role of the ballast is crucial during luminaire activation, ensuring sufficient voltage for ignition when the user flips the switch. By promptly allowing mains voltage to supply this initial 'boost,' adequate current jumps across to create an arc between the lamp's electrodes, initiating light emission.

Equally vital is the ballast's secondary function: regulating current post-switch-on. This control prevents the lamp from continuously drawing the full available voltage from mains power throughout its operation. While various bulb types need an initial current boost for successful activation, allowing sustained high power draw would rapidly overheat and damage them.

Without a ballast integrated into the circuitry, the consequence would be a bulb that either immediately burned out or shattered, or in a more favorable scenario, suffered a drastically shortened lifespan.

Different types of lighting ballasts available

A diverse array of lighting ballast types is accessible in the market. These range from basic components within a light's power loop, serving as straightforward resistors, capacitors, or inductors when connected in-line, to sophisticated circuitry capable of regulating adjustable voltage and current. This advanced functionality grants certain HID and fluorescent luminaires the ability to achieve fully customizable dimming capabilities.

In the following sections, we'll delve deeper into the various types of available light ballasts and discern which ones are suitable for specific lighting configurations.

Standard lighting ballasts

Typical light ballasts ensure the safe and reliable operation of the luminaire and its power circuit, particularly at lower power consumption levels, whether during startup or continuous use. Basic ballasts, like those present in certain LED or neon lamps, primarily act as resistors, limiting the current flowing through the light's circuit.

Fluorescent lighting ballasts

In lighting circuits employing gas discharge, like those powering workplace fluorescent light ballasts, the attached luminaires typically consume considerably more power during operation. In these setups, the ballast may function as a reactance element within the circuit's interior.

This role becomes essential to manage the voltage drop across a completed circuit, preventing an uncontrollable surge in current flow. Such an unregulated surge could swiftly damage either the lamp or the power supply providing the current.

LED light ballasts

The circuitry of LED lights, along with their associated drivers, usually maintains simplicity due to the LED lamp's significantly reduced power consumption. Often, it necessitates just a basic resistor to control the flow of mains power through the circuitry. Yet, when it comes to ballasts and LEDs, several factors should be considered, particularly if you're upgrading by retrofitting LEDs into an existing fixture or system.

Do LED lights need a ballast?

LED lamps are a popular choice across various settings, including industrial, home, and display lighting, owing to their consistent light output, superior quality, and long-term cost-effectiveness. While their initial cost might be higher than other lighting types, their operational efficiency typically offsets this expense quite rapidly.

Given their low power draw, LED lights generally don't require a traditional ballast. However, if you're considering transitioning from fluorescent or HID lamps to LEDs, you might opt to directly insert LED lamps into the existing fittings. This process often involves choices such as 'plug-and-play' formats.

Technically, LEDs use a driver instead of a ballast, yet some LED variants can function with the current ballast technologies commonly found in fluorescent or HID fittings.

Ballasts eventually fail, even in LED lighting systems that don't strictly require them. However, an LED lamp incompatible with a ballast won't operate until the ballast is removed, necessitating rewiring with the correct driver, potentially requiring extensive fixture rearrangements or replacements.

Plug-and-play LEDs are pricier systems but still cost less than a full fixture upgrade or replacement. Other options include hybrid or linear LEDs, which initially work with an existing ballast before being rewired or fitted with a driver after the ballast fails.

Non-ballast-compatible LED lamps are cheaper upfront but their installation and wiring might pose safety risks for non-electricians, as they often carry live mains voltage if the ballast is bypassed.

Opting for slightly pricier ballast-compatible LED lamps during retrofitting generally proves easier and safer. Simply replace ballasts as needed and enjoy the convenience and safety of a direct lamp swap for system upgrades.

For further information and advice on lighting controllers and accessories, reach out to our support team through our support pages. We're here to assist!

HID light ballasts

HID light ballasts function akin to the ones found in fluorescent lamps, albeit with nuanced differences that render them slightly more intricate in their circuitry.

For most HID lamps, the need for quick power cycles, often with minimal warm-up time, defines the design and wiring of their ballasts. These ballasts are engineered to facilitate rapid heating and cooling of the gas within the lamp without risking damage or potential explosion.

Furthermore, precise regulation of the current supplied to HID lamps is crucial. Inadequate current can be as detrimental as excessive current, impacting the long-term health of the luminaire. HID ballasts perform tasks such as converting DC to AC current when necessary and meticulously controlling the electricity flow within the specific and relatively narrow ranges demanded by these types of lights.

Electronic light ballasts

Electrical light ballasts utilize arranged induction coils to manage power flow within a lamp's circuitry, offering distinct advantages over their larger, often more economical magnetic counterparts.

Compared to magnetic variants, electronic lighting ballasts operate at significantly higher frequencies. Consequently, lamps powered through a properly functioning electric ballast exhibit notably reduced flickering and substantially diminished buzzing.

When you detect audible humming or observe persistent flickering in a fluorescent, HID, or LED light fixture operating normally and in good condition, chances are there's a magnetic ballast in place. These devices control current flow at much lower frequencies than their electrical counterparts, making slight waveform irregularities in power delivery more perceptible.

Electronic ballasts for fluorescent lights

Magnetic ballasts have been the traditional standard for conventional long-tube fluorescent lamps, often found in older workplace fixtures or those yet to undergo upgrades. They're prevalent in older workshop or industrial setups that haven't transitioned to newer HID or LED bulkheads and drum lamps.

Dimmable fluorescent lighting and modern compact fluorescent tubes frequently rely on electrical ballasts for optimal functioning due to their intricate internal current regulation needs. Electrical ballasts excel in precisely and efficiently regulating current flow, offering reduced audible noise and visible flicker compared to their magnetic counterparts.

The smoother user experience beneath fluorescent lamps powered by electronic ballasts makes them a more favored choice, especially in home and display settings, owing to their more efficient utilization of supplied power.

Moreover, the extended lifespan of electric ballasts contributes to their value proposition despite the higher initial cost. Regular maintenance and replacement of numerous ballasts and other components in a fluorescent lighting setup can quickly offset this higher cost, making electric ballasts a cost-effective choice in the long run.

How to change or replace a light ballast

Swapping out a fluorescent or HID lighting ballast isn't excessively complex, but as with any electrical work, it's advisable to enlist a qualified professional unless you possess a thorough understanding of the process. If you're considering a light fixture ballast replacement, the steps to follow may vary depending on the type of lamp installed.
