Pockels Cells: Features, Principle & Applications

What is Pockels Cells?

Pockels cells are electro-optic bias that manipulate the polarization state of the light that passes through them by means of the Pockels effect. Linear optic goods are known as Pockels goods or electro-optical goods. It happens in certain non-centrosymmetric crystals when an applied electric field alters the crystal's refractive index. As a result, light's polarization is altered.





Features of Pockels Cells

Material Composition

Common Materials Used:

• Potassium Dihydrogen Phosphate (KDP): Because of its excellent electro-optical qualities and high damage threshold, KDP is an extensively utilized material



• Beta Barium Borate (BBO): The large phase-matching distance of BBO is well-known. Both a broad translucency range from UV to near-IR and a high damage threshold.



• Lithium Niobate (LiNbO3): Because of its broad optic translucency range and strong electro-optical measure, LiNbO3 is extensively employed.



Properties of These Materials:

• KDP: Exhibits good electro-optic coefficients, high laser damage resistance, and is suitable for applications requiring high peak power handling.



• BBO: Provides a significant degree of nonlinearity in combination. broad phase compatibility and resilience to visual impairment. It is hence appropriate for electro-optical modulation and frequency conversion.



• LiNbO3: Useful in integrated optics and telecommunications, they have a broad transparency range and are robust.



Structural Characteristics

Physical Structure and Components:

• Crystal: The core component, where the Pockels effect occurs.



• Electrodes: Arrange in such a way as to take advantage of the electric field that creates the electro-optical effect.



• Housing: The crystal and electrodes are enclosed in a protective sheath. They frequently have an environmentally friendly design.



• Optical Windows: Allow light to enter and exit the Pockels cell without significant loss or distortion.



Variations in Design:

• Longitudinal Pockels Cells: Electric field is applied along the light propagation direction.



• Transverse Pockels Cells: The direction in which light propagates is perpendicular to the electric field.



• Custom Designs: Intended for specialized uses, including high power laser systems or high speed modulation.



Performance Metrics

Key Performance Indicators:

• Response Time: The rate at which light causes Pockels cells to change. Typically, they fall between nanoseconds and picoseconds.



• Wavelength Range: The wavelength range at which Pockels cells can function well. Usually, the material's transparency range dictates this.



• Voltage Requirements: The voltage needed to reach a specific modulation level. The material's electro-optical coefficient has an impact on it.



• Damage Threshold: The highest energy density or optical power that a Pockels cell can sustain without breaking down.



Comparison with Other Electro-Optic Devices:

• Kerr Cells: Employ the Kerr effect, which requires further voltage and has a slower response time than the Pockels effect because it's frequently weaker.



• Acousto-Optic Modulators: Makes use of sound swells to change light. They've several benefits, like cost savings and customization. But in comparison to Pockels cells, they often have a slower response time and a shallower modulation depth.

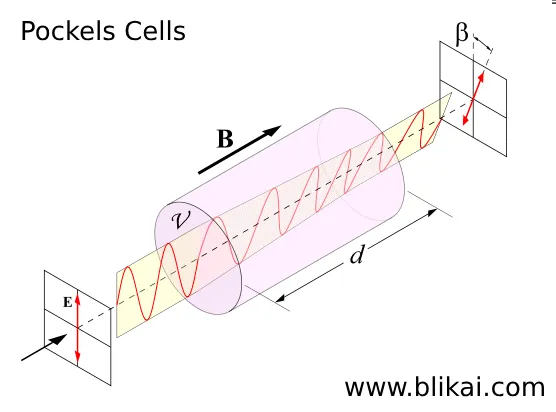

Principle of Operation

Electro-optic Effect

  - Explanation of the Pockels Effect: The direct electro- optical effect is another name for the Pockels effect. It happens in certainnon-centrosymmetric chargers when an applied electric field alters the material's refractive indicator. The magnitude of the electric field has a linear relationship with this change.



  - How Electric Fields Influence Optical Properties: A Pockels cell's refractive indicator varies when an electric field is applied to it. The phase and polarization state of light traveling through the demitasse are impacted by this shift in refractive indicator. By altering the electric field This makes it possible to precisely adjust the crystal's optical characteristics. It allows the brightness to be adjusted.



Functioning Mechanism

  - Detailed Description of How Pockels Cells Work: In substance, a Pockels cell is made up of a crystal squeezed between two electrodes. An electric field is produced inside the crystal when a voltage is placed across the electrode. When light passes through the crystal, the Pockels effect of this electric field changes the crystal's refractive indicator. The crystal's polarization state varies in direct proportion to the applied voltage. The degree of polarization shift can be regulated by varying the voltage. enables the illumination to be adjusted.



  - The Role of Voltage in Modulating Light: The electric field strength and, consequently, the size of the refractive index variations are determined by the voltage given to the Pockels cell. The refractive index changes more when the voltage is higher. The light adjustment has greater significance as a result. Therefore, the phase and amplitude of the light can be adjusted to fit various applications with exact voltage control.



Modulation Techniques

Types of Modulation:

• Phase Modulation: An electric field modifies the phase of light traveling through a Pockels cell in phase modulation, but it does not alter its amplitude. This method is widely applied in communication systems connected to interferometry.



• Amplitude Modulation: By modifying the polarization state of light, amplitude modulation allows light to be selectively blocked or transmitted by the polarizer. This technique is applied in laser pulse control and optical communications.



Technical Implementation in Devices:

• Phase Modulation: The laser beam is aimed towards Pockels cells. By using various voltages, the laser light's phase can be altered. Applications like laser interferometry employ this configuration. Precise phase control is needed for this.



• Amplitude Modulation: As the voltage varies, position the polarizer in front of or behind the Pockels cell. As a result, the light's polarization state changes. The shift in polarization is subsequently translated into an intensity change by the polarizer. This effectively modifies the light's breadth. Information is encoded into a light beam using this technique in optical communication systems.



Applications of Pockels Cells

Laser Systems

Use in Q-Switching for Lasers:

• Mechanism: By quickly altering the polarization state of light inside the laser cavity, Pockels cells function as a quick light switch in Q-switch lasers. They let energy build up before releasing it in brief, powerful bursts.



• Benefits in Pulse Generation and Control: Possibility of producing pulses with the highest power and exact timing control. indispensable for uses in medical surgery, drilling, and laser cutting. as well as research studies.



Telecommunications

Role in Optical Communication Systems:

• Optical Modulation: Pockels cells are used in fiber optic communication systems to modify the polarization, phase, and intensity of light. Information is encoded onto the beam for high-speed transmission using this modulation.



Advantages in Signal Processing:

• High-Speed Operation: Pockels cells offer rapid response times, enabling fast data transmission and processing.



• Low Signal Distortion: The precise control over light modulation helps maintain signal integrity over long distances, improving the reliability and efficiency of communication networks.



Imaging and Sensing

Applications in High-Speed Photography:

• Time-Resolved Imaging: Pockels cells provide for exact exposure control. It makes it possible to record fast-moving phenomena with precise temporal resolution. In scientific research, this is beneficial. Testing of materials and industrial quality assurance.



Use in Various Sensing Technologies:

• Optical Coherence Tomography (OCT): In OCT systems, light-tuned Pockels cells improve penetration depth and picture resolution for material inspection and medical diagnostics.



• LIDAR and Remote Sensing: Provide exact control over the laser pulses that are released, increasing the effectiveness of LIDAR systems. increased precision in 3D mapping and distance measuring.



Other Industrial Applications

Role in Material Processing:

• Laser Machining: Laser settings can be precisely controlled thanks to Pockels cells. This improves the precision and caliber of operations like engraving, cutting, and marking. In the manufacturing sector, this is crucial for making high-precision components.



Use in Research and Development Environments:

• Experimental Physics: Pockels cells are used in various experimental setups to control and modulate light for studying fundamental physical phenomena.



• Development of Optical Devices: It plays a significant role in the investigation and creation of novel optical devices and technologies. This makes progress possible in areas like optoelectronics and photonics.



Advantages

• High-speed operation



• Precise control over light polarization and intensity



• Compatibility with a wide range of wavelengths



Disadvantages

• Require high voltages for operation



• Potential for damage if overdriven



• Can introduce losses and optical distortions



Conclusion

Pockels cells are still crucial to the advancement of technology. They provide the special capacity to direct and work with light for a variety of purposes. It is essential in fields like scientific research, medical diagnostics, laser technology, telecommunications, and laser technology due to its high speed, sensitivity, and adaptability. Pockels cells' ongoing research and use will probably lead to more advancements in optics and photonics as technology advances. It makes scientific and industrial advancement possible.
