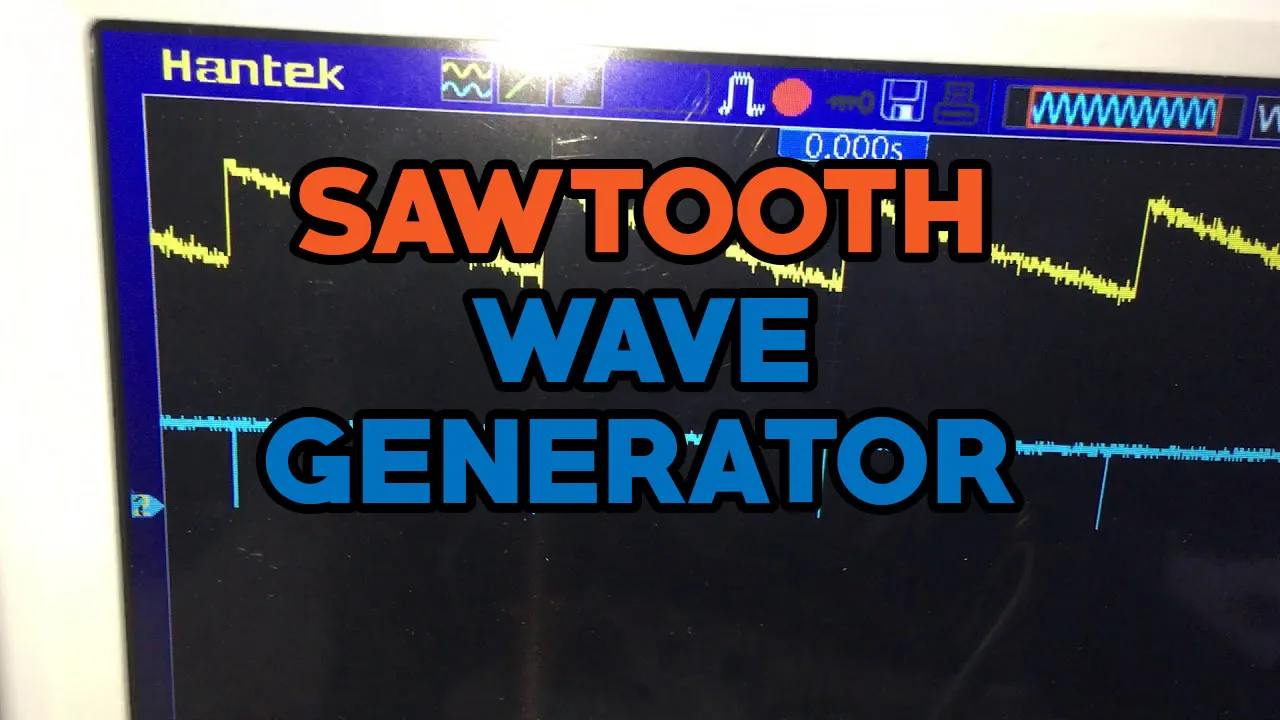

Sawtooth Wave Generator: Design, Construction and Working Principles
An amplitude change over time is represented by a waveform. In addition to sine waves, square waves, triangular waves, and sawtooth waves, periodic waveforms also include square waves. There is a time axis and an amplitude axis. Sawtooth waves and triangular waves are frequently confused by many people. Sawtooth wave generators are non sinusoidal linear waveforms with triangular shapes and varying rise and fall times. An asymmetric triangular waveform is also called a sawtooth waveform.
What is Sawtooth Wave Generator
Originally developed to produce sawtooth wave shapes, sawtooth wave generators are electronic circuits designed to produce waveforms that rise linearly in voltage or current before falling rapidly back down again. Integrating circuits, timing elements, and comparators are used to generate this waveform. As a capacitor is charged or discharged, which is controlled by a timing element, the integrating circuit steadily increases or decreases the voltage output. This sawtooth shape is created when a voltage ramps up or down linearly, reaching a predetermined threshold determined by the comparator. Upon reaching this threshold, a reset signal is generated which rapidly returns the voltage to its original level.
Periodic waveforms are produced by repeating this process continuously. Synchronizers and synthesizers use them as sound sources, while test equipment uses them as reference signals. It is possible to synthesize frequency modulation by using voltage-controlled oscillators, for example. As an electronic tool, sawtooth wave generators are popular because they are simple, versatile, and can generate linearly rising and falling waveforms for a wide variety of practical applications.
Working Principle of a Sawtooth Wave Generator using 555
A sawtooth wave generator using the 555 timer IC operates on the principle of charging and discharging a capacitor to generate a linearly rising voltage followed by a rapid descent, forming the sawtooth waveform. Here's how it works:
555 Timer IC Configuration:
As 555 timers are configured in astable multivibrators, their states continually switch from high to low without external triggers. Connected to the 555 timer are resistors, capacitors, and a diode, if desired.
Charging Phase:
Circuit voltage is applied to the capacitor (C) by passing it through the resistor (R1) and discharge pin (7) of the 555 timer during the charging phase. Resistance (R1) and capacitance (C) determine the RC time constant, which determines the timing of this phase. It increases linearly in voltage as the capacitor charges.
Discharging Phase:
555 timers (pin 3) switch from high to low when they reach a threshold determined by two-thirds of the supply voltage (Vcc). Discharge begins as a result of this. This phase causes the voltage across the capacitor to drop abruptly as the capacitor discharges rapidly through a discharge resistor (R2) and a discharge pin (pin 7).
Sawtooth Waveform Generation:
A sawtooth waveform is displayed at the output (pin 3) of the 555 timer as a result of the charging and discharging phases alternating continuously. Sawtooth is characterized by linear rise and rapid fall during charging and discharging phases.
Frequency and Amplitude Control:
Based on the formula, the value of the resistors (R1 and R2) and the capacitor (C) determines the frequency of the sawtooth waveform:
Sawtooth waveforms can be tuned by varying the values of these components. By controlling the supply voltage (Vcc) and scaling the amplitude, the waveform's amplitude can also be controlled.
By using the 555 timer IC, sawtooth waveforms are generated by charging and discharging capacitors through external resistors. Many fields, including music synthesis, signal generation, and test equipment, use this simple yet versatile circuit.
Applications of Sawtooth Wave Generator
Waveform-specific characteristics and versatility make the sawtooth wave generator useful in a variety of fields. Here are a few examples of key applications:
Signal Generation and Testing:
Signal generation and testing equipment often use sawtooth wave generators. Electronic circuits, calibrating instruments, and generating reference signals can benefit from the linearly rising and rapidly falling waveform. Calibration of sweep frequencies and testing circuit responses are particularly useful with oscilloscopes and function generators.
Music Synthesis:
Synthesizers commonly use sawtooth waves as sound sources in electronic music production. Having a harmonic spectrum very similar to the natural overtone spectrum, they produce a rich, bright sound. To create musical tones, sawtooth wave generators produce pitches, amplitudes, and timbres that vary from one another. In electronic music genres, they are responsible for creating lead sounds, basslines, and other synth textures.
Frequency Modulation (FM) Synthesis:
As part of frequency modulation synthesis, sawtooth wave generators are also used to generate sawtooth waves. When two sawtooth waves are modulated with different frequencies, harmonic spectra emerge and the timbre evolves. It is suitable for synthesizing a wide range of musical tones and textures, as it allows for the creation of dynamic and evolving sounds.
Video and Graphics:
Cathode-ray tube (CRT) displays and raster scan displays use sawtooth wave generators to generate vertical and horizontal sweep signals. Images and videos are displayed on screens using these sweep signals. Screen images are sharp and stable because sawtooth wave generators provide precise and synchronized scanning.
Synchronization and Timing:
Synchronization and timing are accomplished with sawtooth wave generators in different devices and systems. In electronic circuits, instrumentation, and industrial automation, they trigger events, synchronize operations, and control sequences. Systems utilizing sawtooth wave generators are more reliable and efficient since they ensure accurate timing and synchronization.
Pulse Width Modulation (PWM):
PWM applications also use sawtooth wave generators. A PWM circuit generates pulse-width-modulated signals with adjustable duty cycles by comparing a sawtooth wave with a variable reference voltage. There are numerous applications for PWM signals, including the control of motors, the regulation of power supplies, and dimming of LED lighting.
Faqs
How is a sawtooth wave generator used in music synthesis?
Because sawtooth waves possess a rich harmonic content, they are used as sound sources in synthesizers. Creating lead sounds, basslines, and other synth textures requires sawtooth wave generators, which generate musical tones with varying pitches, amplitudes, and timbres.
Is it possible to synthesize FM using a sawtooth wave generator?
In FM synthesis, sawtooth waves are modulated by sawtooth waves of different frequencies. As a result, electronic music is able to produce dynamic and evolving sounds due to the complex harmonic spectrum and evolving timbre.
What is a sawtooth wave generator?
Similar to the teeth of a saw, sawtooth wave generators produce linear waveforms that descend rapidly.
Final Verdict
With a rapid descent and linear rise, the sawtooth wave generator offers a versatile waveform in electronics. The circuit's wide range of applications and straightforward working principles make it useful in a wide range of situations. Numerous electronic systems and devices use sawtooth wave generators for a variety of purposes, from signal generation to music synthesis to video displays to timing synchronization. In the realm of waveform generation and signal processing, its ability to produce precise and synchronized waveforms makes it a cornerstone.
Engineers, musicians, technicians, and musicians can achieve their objectives with accuracy and efficiency using a sawtooth wave generator in laboratories, studios, industrial settings, or anywhere else. In the end, sawtooth wave generators play an important role in advancing technology and realizing innovative ideas, both among electronics enthusiasts and professionals.
