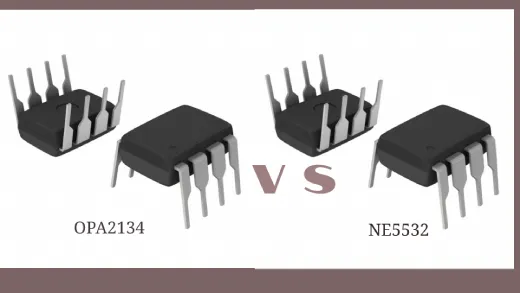

OPA2134 vs NE5532: A Comparison of Performance, Features, and Applications

OPA2134 and NE5532 are popular functional amplifiers (op-amps) famed for their audio fidelity and versatility. In the following composition, we will introduce the differences between OPA2134 and NE5532 in detail in terms of performance, characteristics, and operations.





A brief Introduction to OPA2134



OPA2134 is a low-noise,ultra-low-distortion functional amplifier designed for audio operations. To deliver improved sound quality and speed for superior audio performance, a true FET input stage is included. This, combined with its high output drive capability and good DC performance, makes it suitable for a wide range of demanding applications. The OPA134 also has a wide output swing (within 1V of the rail), which allows for greater headroom, making it ideal for use in any audio circuit.



In traditional configurations, single- and dual-channel versions are available in 8-pin DIP and SO-8 surface-mount packages. The quad channel is available in 14-pin DIP and SO-14 surface-mount packages. All products are rated over the temperature range of -40°C to 85°C. SPICE macro models can be used for design analysis.



A brief Introduction to NE5532



The NE5532 series of functional amplifiers is a high-performance device with good DC and AC characteristics. Low noise, high output drive capability, high coherence-gain, maximum output swing bandwidth, low deformation, high slew rate, input protection diode, and output short-circuit protection are all features. These op amps are internally calibrated to operate at unity-gain. These devices set a maximum equivalent input noise voltage limit.



Different Performance in OPA2134 vs NE5532



A comparison of performance between the OPA2134 and NE5532 functional amplifiers demonstrates distinctive characteristics suitable for different audio operations. The OPA2134 shines with exceptional specifications, including lower noise and deformation situations, making it the top choice for high-dedication audio systems and professional audio equipment.In contrast, the NE5532 provides a more affordable option with satisfactory performance for general-purpose audio applications, appealing to hobbyists and DIY enthusiasts. Both op-amps deliver exceptional audio quality, with the selection between the two depending on the specific requirements of the audio circuit and the desired balance between performance and cost.







Features of OPA2134 vs NE5532



The Features of OPA2134



• Superior Sound Quality



• Ultra-Low Distortion: 0.00008%



• Low noise: 8 nV/√Hz



• Genuine FET input: IB = 5pA



• High Speed:

---Slew rate: 20 V/μs



---Bandwidth: 8 MHz



• High open-loop gain: 120 dB (600 Ω)



• Versatile supply voltage range: ±2.5V to ±18V



• Available in single, dual, and quad channel configurations



The Features of NE5532



• Bandwidth for small signal: 10 megahertz



• Drive capability of output: 600 at 10 volts RMS



• Input noise voltage: Typically 5.0 nV per square root of hertz



• Voltage gain at DC: 50,000



• Voltage gain at 10 kilohertz: 2,200



• Power bandwidth: 140 kilohertz



• Slew rate: 9.0 volts per microsecond



• Wide supply voltage range: 3.0 to 20 volts



• Compensation for unit gain



• Lead-free packaging is available



A Specific Comparison Between OPA2134 and NE5532



	OPA2134	NE5532
Packaging	Tube	8-DIP
Supply Voltage	15V	15V
Operating Supply Current	4mA	8mA
Slew Rate	20V/μs	9V/μs
Output Current per Channel	35mA	38mA
Operating Temperature	-40°C~85°C	0°C~70°C
Datasheet	OPA2134 Datasheet	NE5532 Datasheet



Specific Applications for OPA2134 and NE5532



Applications of OPA2134



• Professional Audio and Music



• Line Drivers



• Line Receivers



• Multimedia Audio

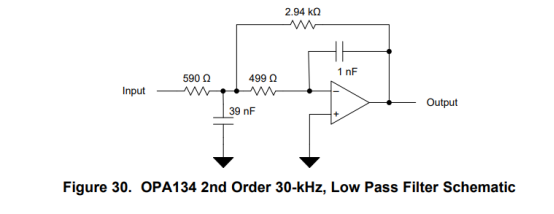

• Active Filters



• Preamplifiers



• Integrators



• Crossover Networks



Applications of NE5532



• AV Receivers



• Embedded PCs



• Netbooks



• Video Broadcasting and Infrastructure: Scalable Platforms



• DVD Recorders and Players



• Multichannel Video Transcoders



• Pro Audio Mixers





Differences of OPA2134 and NE5532



The OPA2134 and NE5532 are commonly utilized operational amplifiers in audio applications, each offering particular features:







Noise Performance: In comparison to the NE5532, the OPA2134 regularly illustrates lower noise levels, which is especially useful in high-gain audio circuits where minimizing commotion is vital for maintaining sound fidelity.



Distortion Characteristics: In spite of the fact that both op amps show low distortion, the OPA2134 may have slightly better distortion characteristics that contribute to accomplishing clearer sound propagation, particularly in situations that prioritize basic listening.



Bandwidth and Slew Rate: The OPA2134 generally boasts a more extensive transfer speed and higher slew rate than the NE5532, coming about in moved forward temporal reaction and speedier signal handling, making it reasonable for high-speed audio applications.



Price: The OPA2134 tends to carry a higher price tag compared to the NE5532, which is advocated by its predominant execution determinations, making it the favored choice for proficient sound equipment and high-end audio systems.



Supply Voltage Range: The NE5532 ordinarily offers a more extensive supply voltage range when compared to the OPA2134, which is beneficial in applications that require adaptability in supply voltage.



Bias Current: The OPA2134 ordinarily features lower input predisposition current than the NE5532, which is useful in circuits where input impedance coordination is basic as it decreases mistakes caused by input predisposition currents.



Ultimately, the preference for either the OPA2134 or NE5532 depends on the particular necessities of the audio circuit, including craved execution, budget considerations, and compatibility with other components. Both op amps give amazing audio quality and flexibility, but the OPA2134 might be favored for operations that emphasize predominant commotion execution and deformation characteristics.





Frequently Asked Questions



Q: What's the OPA 2134?

A: OPA2134, delivered by Texas Instruments, is a functional amplifier included in the company’s range of high-performance audio op amps, exceedingly admired for its remarkable audio fidelity and flexibility.



Q: What are the key features of OPA 2134?

A: The OPA2134 is characterized by its low noise, minimum mutilation, and high slew rate, making it well-suited for high-dedication audio operations. With a wide transmission capacity and minimum signal attenuation, it conveys top-quality audio reduplication.



Q: What is the NE5532 op amp?

A: The NE5532 serves as a double operational amplifier (op-amp) coordinates circuit, prized for its flexibility and broad pertinence in audio-related scenarios. Initially made by Signets (which is currently a portion of ON Semiconductor), it has characteristics such as low noise, a high slew rate, and plentiful open-loop pick-up, making it perfect for assignments like sound signal handling and amplification.



Q: What are the crucial features of the NE5532?

A: The NE5532 is characterized by its low noise position (averaging around 5 nV/√ Hz), high slew rate( averaging 9 V/μs), high input impedance, and wide transmission capacity of over 10 MHz. It works with either a single or double control force and is capable of conveying top-notch audio improvement while maintaining minimum deformation.



Q: What are the main contrasts between the OPA2134 and the NE5532?

A: The OPA2134 is known for having diminished commotion and deformation when compared to the NE5532. Also, it's likely to boast a broader transfer speed and advanced transformation rates, making it a practical choice for high-dedication audio operations that require fineness and appreciation.



Q: Which op-amp is way better for audio applications?

A: The OPA2134 and NE5532 op amps are widely utilized in audio circuits. The OPA2134 is, as often as possible, favored for proficient and high-end audio systems due to its extraordinary execution. Alternatively, the NE5532 provides a cost-effective and dependable arrangement, making it well-suited for common audio applications and DIY projects.



Q: Where can I purchase OPA2134 and NE5532 op amps?

You can discover both op amps at electronic component wholesalers, online retailers, and proficient audio hardware providers. They are commonly accessible in through-hole and surface-mount bundles and can be consistently joined into a variety of electronic circuits.



Conclusion of OPA2134 VS NE5532



In conclusion, the comparison between OPA2134 and NE5532 reveals two protean functional amplifiers suitable for a wide range of audio operations. While the OPA2134 offers superior performance in terms of lower noise,deformation, and potentially advanced bandwidth, it comes with an advanced price label. On the other hand, the NE5532 provides a more budget-friendly option with decent performance suitable for general-purpose audio circuits. The choice between the two op-amps depends on specific conditions, balancing performance, cost,and the position of the audio. Eventually, both op-amps will have their place in audio design,catering to different requirements and preferences within the electronics community.
