Relay: What You Need to Know?

What is Relay?

A relay is an electrically operated switch that allows a low-power signal to control a higher power circuit, effectively acting as a bridge between different circuit elements. Relays basically operate by opening and closing the connections on one circuit to insulate and control another electrical circuit. As a result, low power signals can operate high power devices without requiring a direct electrical connection. Relays are crucial parts of many different kinds of equipment, from basic home appliances to intricate industrial gear, because they precisely regulate and safeguard circuits and guarantee the effectiveness and safety of electrical systems.

How Relay works

For a relay to serve, it needs an architecture that's moving, an electromagnetic coil, and one or further sets of connections. When current passes through the coil, a glamorous field is created that attracts the architecture, which moves as a result. This operation opens and closes the connections on the relay, controlling the circuit that's attached to it, depending on the type of relay. For case, a solenoid relay's architecture is pulled by an amped coil, which closes the ordinarily open(NO) or opens the normally closed(NC) contact. Because they can regulate power, insulate circuits, and turn bias on and off, relays are an essential element of electrical and electronic systems.

Main features of Relay

They increase safety in the first place by offering electrical isolation between the control and output circuits. Relays also provide for the effective management of large devices with low power consumption since they can handle huge power loads at low inputs. Additionally, the relays are versatile, coming in a variety of configurations to suit various demands, including single-pole single-throw (SPST) and double-pole double-throw (DPDT). Furthermore, robustness and quick reaction times guarantee dependable operation in both home and commercial devices. These qualities taken together explain why relays are widely used in a variety of mechanical and technical systems.

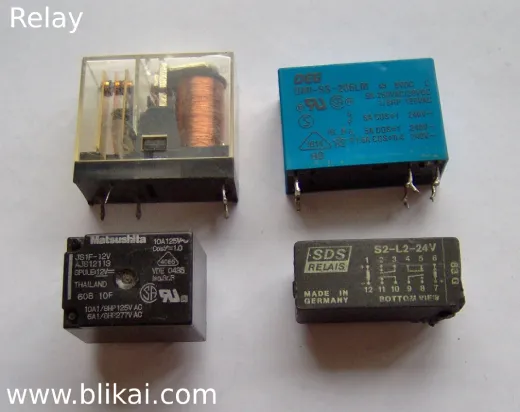

Types of relays

Electromagnetic relays:

The most common kind, electromagnetic relays, work by using an electromagnetic coil to mechanically operate a switch. The contacts open and shut as a result of the lever being drawn in by the magnetic field created when current passes through the coil. The simplicity, dependability, and capacity to manage large voltages and currents make these relays highly appreciated. Their sturdy design guarantees long-term functioning in difficult conditions, and they are frequently utilized in industrial controls, home appliances, and automobile systems. Clear physical feedback is another benefit of electromagnetic relays' mechanical action, which is helpful in some situations.

Solid-state relays (SSRs):

The absence of moving parts distinguishes solid state relays (SSRs) from electromagnetic relays in a big way. Rather, switching is accomplished by semiconductor devices like transistors, triacs, and thyristors. There are various benefits to this design, such as faster switching times, more physical wear, and better durability. SSRs may function in challenging conditions with significant vibration and temperature swings and are incredibly dependable. Silent operation and long life are essential advantages in applications that need frequent switching, such as temperature control systems, industrial automation, and lighting management.

Time-delay relays:

Time-delay relays enable fine timing control in circuits by adding a delay to the activation or deactivation of its contacts. They have electronic circuits or mechanisms installed that allow them to postpone the switching action for a preset amount of time. In applications where timing is critical, like motor control circuits, manufacturing processes, and sequential activities, these relays are indispensable. Depending on the requirements of the operation, time- detention relays can be moreover on- or out- detention. They offer a solid way to guarantee that particular conduct take place in a precise order, perfecting overall system effectiveness and collaboration.

Reed relays:

The usage of a reed switch inside the coil is what distinguishes reed relays. The reeds are drawn to the coil by the magnetic field, which closes the connections when the coil is energized. These relays are renowned for their tiny size, low power consumption, and quick switching speed. Applications needing quick response times and excellent dependability, like signal switching, test equipment, and telecommunications, are best suited for reed relays. Their small size and excellent precision in switching low-level signals make them perfect for use in delicate, fast-paced electronic circuits.

Relay vs. Alternatives

When comparing relays to similar communication tools like switches, transistors, and integrated circuits (ICs), several distinctions become evident. Traditional mechanical switches offer direct manual control but lack the automation and remote control capabilities of relays. Transistors, while providing fast electronic switching and amplification, are limited in handling high power loads and do not offer the electrical isolation inherent in relays. Integrated circuits, including logic gates and microcontrollers, provide complex functions and control capabilities but often rely on relays for interfacing with high-power devices or for ensuring electrical isolation in critical applications. Thus, while each tool has its place, relays uniquely bridge the gap between low-power control and high-power switching, offering mechanical isolation and the ability to manage significant loads effectively.

Advantages of using relays

Relays are veritably salutary in a wide range of operations because they've multitudinous significant advantages. The electrical insulation between the control and cargo circuits, which boosts safety and securities delicate factors from high voltages, is one of the crucial benefits. Because relays can handle high current loads, they're a good choice for heavy- duty artificial outfit switching. Their adaptability, which comes in a variety of forms and combinations to suit various needs, is another benefit. Relays are also renowned for their dependability and toughness, particularly in harsh environments, guaranteeing prolonged operation with little upkeep. In addition to offering unambiguous and predictable switching behavior, electromagnetic relays' mechanical design is advantageous for system diagnosis and troubleshooting.

Disadvantages of using relays

The comparatively sluggish switching speed of mechanical relays in comparison to electronic components like transistors and solid state relays is one of their main drawbacks. Electromagnetic relay mechanical components are subject to wear and tear, necessitating replacement or failure. Because of the mechanical movement of their components when in operation, relays can also produce noise. Furthermore, their larger nature compared to semiconductor devices may provide a drawback in situations requiring limited space or compact design. Relay coil energization can need more power than a pure electronic switch, which could be problematic in applications where power is limited.

Applications of Relays

A. Industrial automation

Because they make it possible to automate and control a large variety of devices and processes, relays are crucial to industrial automation. They are a crucial part of PLCs, or programmable logic controllers, which keep an eye on industrial gear such as motors, conveyors, lights, and other fixtures. Relays improve operating economy and safety by allowing low-power signals to precisely control high-power equipment. Reference relays, for instance, guarantee that procedures are carried out correctly and prevent potential mishaps. Solid state relays are favored because of their quick switching speed and endurance in high vibration and temperature settings. For industrial processes to run smoothly, safely, and automatically, relays are necessary.

B. Electrical engineering

In electrical engineering, relays are versatile tools used for switching, protection, and control. They are critical in circuit breakers, automatically cutting off power during faults to protect equipment and prevent fires. Relays also facilitate load management, distributing electrical loads across multiple circuits to ensure system stability. In control panels and power distribution systems, relays provide isolation and precise control, which are crucial for managing complex electrical functions safely. Their ability to handle varying electrical conditions and requirements underscores their fundamental role in electrical engineering, from simple home circuits to advanced industrial power systems.

C. Automotive industry

In the automotive sector, relays are constantly employed to guarantee the reliable operation of multitudinous vehicle systems. Essential features including gasoline pumps, wipers, headlights, HVAC(heating, ventilation, and air exertion), and ignition systems are all managed by relays. This enhances the performance and safety of vehicles by enabling low- power circuits to drive high- power factors effectively. ultramodern cars can profit greatly from solid state relays because of their robustness and adaptability to severe operating surroundings like high temperatures and vibration. Relays are extensively used in automotive systems to insure safe and effective vehicle operation in a variety of scripts.

D. Aerospace and defense

Relays are essential to the functionality and responsibility of vital outfit in the aerospace and defense diligence. factors used in aerospace operations must be suitable to endure harsh climatic factors similar high altitude, extremely high temperatures, and violent vibration. In avionics, relays are used to regulate flight control, communication, and navigation systems. In defense, relays are integral to radar systems, armament control systems, and secure communication networks. Their capability to give dependable switching and electrical insulation in harsh conditions makes them necessary for icing the safety and functionality of aerospace and defense technologies. These sectors calculate on the robustness and trustability of relays to maintain critical operations under demanding conditions.

How to Get Started with Relay

Relays must be started with a few methodical procedures to guarantee correct installation and operation. First, ascertain the kind of relay needed for the specific application, accounting for variables like voltage, current, number of throws, and number of poles. Next, thoroughly go over the relay specifications and wiring schematic in the data sheet that was supplied by the manufacturer. Install a suitable and safe power source for the relay coil first. Make sure the relay is correctly polarized before connecting the control circuit to the coil terminals. Next, depending on the needs of the application, connect the load circuit to the common (COM), usually open (NO), and normally closed (NC) contacts. Verifying the precision and security of each connection is crucial. Once everything is wired correctly, test the relay by activating the control circuit and observing the relay's response to ensure it operates as intended. This step-by-step approach provides a clear pathway for beginners to effectively incorporate relays into their projects.
