Mastering RJ45 Connectors: A Comprehensive Handbook

In this introductory manual on the diverse array of RJ45 connectors available for purchase online, we will address fundamental FAQs regarding the functionality and operation of these network connectors. We will explore different variations that may be encountered and provide guidance on how to properly terminate an RJ45 connector onto an Ethernet cable.



What is an RJ45 Connector?



RJ45 network connectors are predominantly situated at the termination points of Ethernet (wired internet) connections. Initially, they may resemble the conventional telephone plugs and jacks used to link landlines to wall outlets or switchboards. Nevertheless, RJ45 connectors typically exhibit slightly larger dimensions.



Presently, the term "RJ45 connector" commonly encompasses both male RJ45 plugs and female RJ45 sockets. These plugs, also referred to as modular connectors, are typically located at the terminations of Ethernet cables. Meanwhile, the sockets or jacks are typically integrated into the device being connected or installed within a fixed wall panel.



Description of an RJ45 Connector



Registered jacks serve as interfaces for telecommunications networks, facilitating connections between various types of voice and data equipment either to a central hub or directly to one another.



In contemporary residential and commercial settings, RJ45 connectors are predominantly utilized to directly connect internet-enabled devices to hardware such as modems, routers, or servers. These connectors comprise modular sets of fittings situated at each end of the physical data connection (Ethernet cable), enabling the linkage of one networked device to another.



As mentioned earlier, the term "RJ45 connector" broadly encompasses both male and female versions of these jacks and plugs. In Ethernet networking setups, the plug fixtures located at cable ends are referred to as RJ45 male components, while the sockets integrated into the devices themselves are known as RJ45 female components.



Technical RJ45 Definitions



Most standard Ethernet data cables consist of four twisted-pair wire strands, totaling eight individual wires. Male RJ45 plugs are responsible for separating and terminating these eight individual wires correctly. In essence, RJ45 wiring adheres to an 8P8C (8 position, 8 contact) configuration.



A standard RJ45 connector is characterized by a mechanically-keyed design integrated into a generic 8P8C body. The term "mechanically keyed" indicates that RJ45 connectors feature an additional tab to prevent mating with visually similar socket standards that are electrically incompatible. This tab also serves to prevent accidental disconnection.



To ensure proper functionality of an RJ45 network connector, the eight Ethernet cabling wires must be inserted into the correct pinout locations on the male connector. This is achieved by following either the T568A or T568B wiring standard, each of which employs its own color-coded wiring convention, resulting in two different forms of connectivity.

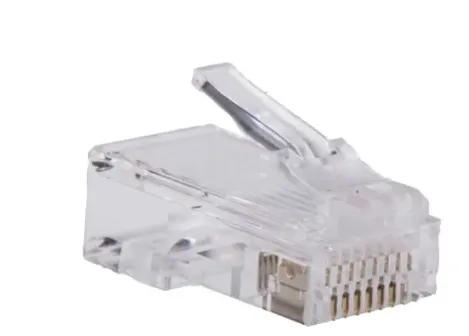

What is RJ45?



RJ45, short for ‘Registered Jack 45’, signifies its inclusion in a universally standardized networking interface. These registered interfaces were developed in the 1970s to ensure seamless compatibility between telephone company hardware and consumer equipment. As part of a series of miniature modular connectors introduced during this standardization effort, RJ45 emerged as one of the types.



Initially, referring to a registered jack specifically denoted the standardized female sockets and their wiring, hence the term ‘jack’, which signifies a socket. However, over time, this distinction has gradually blurred. Presently, RJ45 is commonly used as a concise reference encompassing both male and female components of the modular RJ45 connector system.



Wired Ethernet Connections and RJ45 Connectors



Wired Ethernet connections are often favored over wireless or Wi-Fi networks due to their reliability, stability, and interference-free nature. They offer faster data transfer speeds and enhance security by preventing hackers from intercepting sensitive data.



In today's world, Ethernet networks are ubiquitous in both home and professional settings. A network comprises interconnected devices capable of sharing data. For instance, a home network typically revolves around a router or modem linked to various devices such as PCs, laptops, smart TVs, mobile phones, gaming consoles, printers, and more. Such setups, known as Local Area Networks (LANs), feature devices situated in close proximity to each other, usually within the same building.



While some networks rely solely on wireless connectivity, others utilize physical, wired connections for enhanced speed and data transfer stability. In such cases, Ethernet cables, featuring plug fittings at both ends, are employed to link the devices. These plug fittings, known as RJ45 connectors, seamlessly connect to corresponding sockets on devices, ensuring a secure connection.



Types of RJ45 Connector



There are several types of RJ45 connectors available for purchase, but the primary distinction lies between the modular male and female versions. So, what are the various types of RJ45 connectors, and how can you tell them apart?



In essence, plugs are considered male, while jacks or sockets are deemed female. Plugs are responsible for terminating the wires in an Ethernet cable correctly. In contrast, sockets facilitate the transmission of the electrical data signal to the connected device. Both components are designed to securely fit together, ensuring a reliable physical and electrical connection.

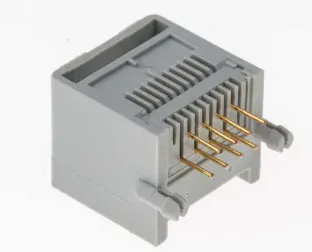

RJ45 Female Connectors (RJ45 Socket)

Female RJ45 connectors, also known as RJ45 sockets, are designed as recessed sockets where a male RJ45 plug can be inserted. These connector sockets may be referred to as RJ45 female jacks or female RJ45 sockets. Typically, they are integrated into the body of the device being connected or installed on walls and panels.



In most consumer electronic devices such as TVs, PCs, and various tech hardware, you'll find the female RJ45 Ethernet socket located on the device's I/O (input/output) connectivity panel. This panel is usually situated at the rear of the device, alongside other ports for HDMI and USB cables.

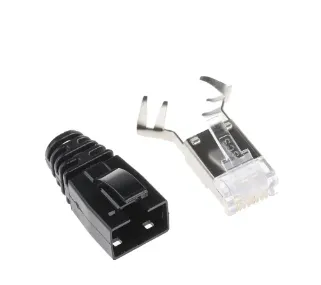

Male RJ45 Connectors (RJ45 Plug)



Male RJ45 connectors are modular plug-in components situated at the ends of an Ethernet cable. They are commonly made of clear, white, black, or grey plastic, though they can also come in various other colors and materials. Professional-grade RJ45 male connectors may be shielded in metal to reduce the risk of electromagnetic interference (EMI), thus enhancing the quality and stability of data transmission.



It's important to note that Ethernet cables typically do not have one female RJ45 end and one male RJ45 end. If you need to extend a cable in such a configuration rather than purchasing a longer cable, you'll generally require an RJ45 male-to-male adapter. These adapters usually consist of a small linking module featuring two female sockets facing in opposite directions.



Ruggedized RJ45 Connectors



A ruggedized RJ45 connector is essentially a more durable variant of the standard RJ45 connector. These connectors are primarily utilized in environments where the wiring system is exposed to factors such as dust, vibrations, water, or mechanical strain. The specific hazards your network connection may face will determine the optimal type of ruggedized connector to procure. Ruggedized RJ45 connectors are available in both cable-to-cable and panel-mounted configurations, often incorporating various additional features to enhance strength and resilience.



Key Additional Features:



• Robust environmental shielding (IP-rated for protection against dust, moisture, etc.)
• Vibration resistance
• Mechanical stress relief at connector-cable and connector-socket interfaces
• Screw-terminated shields for independent load transfer, separate from electrical connections





RJ45 Pinout Configuration



The pin connections of RJ45 plugs adhere to the 8P8C cabling standard. When terminating the connector, it is crucial to correctly crimp the eight color-coded individual wires of the patch cable.



T568A and T568B Wiring Schemes for RJ45



It's important to note that there are two wiring conventions used for RJ45 plugs when wiring an Ethernet cable: T568A and T568B.



The choice between these standards dictates the sequence in which the eight individual wires within Ethernet cables connect to the pinout of an RJ45 connector. T568A is often regarded as the preferred configuration due to its broader compatibility with older equipment and cables. However, T568B is more prevalent, especially in slightly older cables and devices.



Each standard employs a distinct color code, with the primary distinction being the arrangement of the orange and green wire pairs. It is essential to ensure the correct wiring standard is used for the type of connection you intend to establish.



Wiring an RJ45 Connector



Constructing your own male RJ45 plugs onto the end of a suitable network communication cable requires only a few basic tools. Opting to fix a new connector is often more cost-effective than replacing an entire Ethernet cable. Here are some reasons why you might consider wiring them yourself:



Custom Lengths: Knowing how to wire an RJ45 connector plug allows you to tailor Ethernet cables to your desired lengths, aiding in cable management or creating lengthy runs.



Prevent Damage: RJ45 plugs and sockets can endure stress at connection points, leading to damage if cables are too short or experience pulling or snagging. By correctly crimping connectors, you can minimize potential damage and extend their lifespan.



Cost Efficiency: If you frequently need Ethernet cables, wiring them yourself can offer significant cost savings compared to purchasing pre-made cables.Step-by-Step Guide for Wiring Ethernet Cables with RJ45 Connectors .To wire your RJ45 connector, you will need the following tools and components:



Ethernet network communication cable



RJ45 crimpable connectors suitable for your cable category

RJ45 crimping tool

Once you have determined the appropriate wiring convention (T568A or T568B), follow these basic steps to complete your RJ45 wiring:



Trim the cable to the desired length, if necessary, using a cable cutter.

Use the crimping tool to trim and tidy the cut cable ends.

With wire strippers, remove approximately an inch of the cable jacket from the end, taking care not to damage any internal wiring.

Untwist and separate the eight individual wire strands of the cable core, straightening them out as much as possible.

Arrange the wires side by side in the correct color order, typically white/orange, solid orange, white/green, solid blue, white/blue, solid green, white/brown, and solid brown for standard patch cabling.

Cut the wires straight across at the ends, around half an inch from the cable sleeve.

Hold the male RJ45 connector plug with its contact pins facing away from you and away from the cable wires, and its keyed tab facing downwards.

Gently push the arranged wires through the body of the RJ45 plug until they reach the end of the connector where the pins are. If possible, include about half a centimeter of the cable jacket for added strength and insulation. Trim the wires shorter if necessary.

Once the connector is attached as per the above steps, use the RJ45 crimping tool to firmly press down on the connector around the cable. Tabs inside the connector will pierce and flatten the wires, ensuring proper contact. After crimping, the cable end is ready for testing and use.



Crimping Tools for RJ45 Connectors



Crimping tools are instrumental in creating connections between components through compression forces, forming secure bonds or seals. An RJ45 crimping tool, also known as an RJ45 crimper or RJ45 connector tool, is specifically designed to attach male plug connectors to Ethernet cables. This allows for quick and straightforward connections, whether for repairs or custom cable builds.



A variety of crimp tool options are available, including manual, electric, and hydraulic models. Manual crimp tools are commonly used due to their simplicity and cost-effectiveness.



Explore RJ45 Crimping Tools

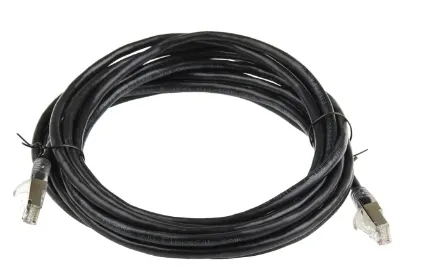

RJ45 Cables

RJ45 cables, also known as Ethernet or network communication cables, come in various categories, each offering high-speed data transfer connections. These cables consist of four twisted pair wires, with higher category cables typically providing greater speed and capacity.



Ethernet cables are commonly used in domestic and office networks, with grades like Cat5e, Cat6, and Cat6a being widely utilized. For higher demands, such as Gigabit Ethernet, Cat7 cables are preferred. It's important to note that these cables are backward compatible, ensuring compatibility with older equipment.



Conclusion



Another crucial differentiation to consider when purchasing Ethernet cable is between straight-through or patch cable, and crossover cable.



Straight-through or patch cable features identical wiring configurations at both ends. This type of cable is the norm in most residential settings, where it's used to connect PCs and devices to a network hub or router.



On the other hand, crossover cable is wired with a T568A connection at one end and a T568B connection at the other. It was traditionally employed to directly link two computers without an intermediary device like a router or network switch. However, this practice has become increasingly uncommon in modern setups.
